38
MZ INSTALLATION & MAINTENANCE

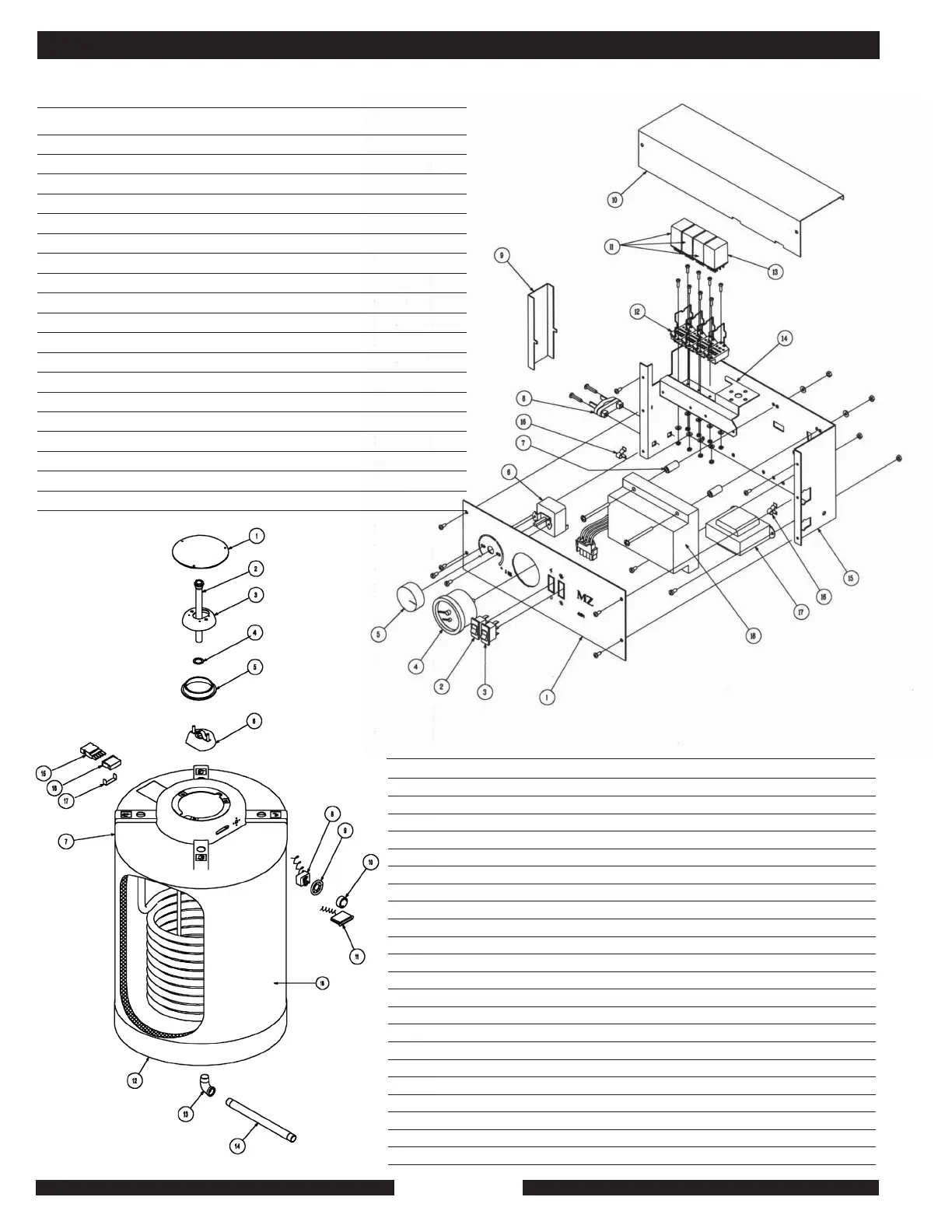

APPENDIX B
1 For Reference Only FRONT COVER & STICKER
2 9055 ON/OFF SWITCH
3 9054 SUMMER/WINTER SWITCH
4 9051F THERMOSTAT GAUGE (FAHRENHEIT)
5 9053 KNOB
6 9052 ADJUSTABLE LIMIT 40
7 For Reference Only ZINC DISC D 4XX10X0.8
8 For Reference Only WIRE ROPE CLAMP
9 For Reference Only FOLDED NECK FOR WIRES
10 For Reference Only COVER FOR CONTROL BOX
11 9001 RELAY MY4-24V
12 For Reference Only RELAY CARRIER & STIRRUP
13 9040 120V RELAY
14 For Reference Only FOLDED HOLDER/RELAY
15 For Reference Only WHITE CONTROL BOX
16 9061 CLIP
17 9043 TRANSFORMER 120 TO 24VOLTS
18 9016 CONTROL BOX
* For Reference Only WIRING
* 9104 CONTROL PANEL INCLUDED WIRING
DESCRIPTION
ITEM
#
PART
NUMBER
MZ40C
BS 25/40/50/80
1 For Reference Only Grey Ps Cleaning Door
2 For Reference Only Anode & Cap & Sealing 3/4d.22.230 magnesium
3 For Reference Only Flange for cleaning door
4 For Reference Only Sealing AFM34 D.36x26x2
5 For Reference Only Sealing/Cleaning Door
6 For Reference Only Anode Cleaning Door
7 9400 Upper Bottom & Cable BS
8 For Reference Only Jaeger Tuaa5C112 Jaeger Thermostat
9 For Reference Only Black Cap for the Thermostat
10 For Reference Only Black Thermostat Knob
11 For Reference Only Thermostat Rect Horiz 69x14 LG Capil 1500 MM
12 For Reference Only Thermoformed
13 For Reference Only Stainless Steel Bend 90 Degree M3/4-F3/4
14 For Reference Only Domestic Cold Water Pipe Length 310
15 For Reference Only Plug Wieland 5 PT. Male
16 For Reference Only Plug Wieland 5 PT. Female
17 For Reference Only Fixing Piece
18 For Reference Only ABS Sheet; Ep:08 1935x440 BS100
18 For Reference Only ABS Sheet: EP: 081935x665 BS150
18 For Reference Only ABS Sheet; EP: 08 1935x890 BS200
18 9401 ABS Sheet; EP: 081935x1340 BS300
* For Reference Only NBS Superior Bottom Equipped
* For Reference Only Wiring
DESCRIPTION
ITEM
#
PART
NUMBER
