FG038 MK2 Divider RevA19 13-02-19
6 IF REQUIRED CLEAN COMPONENTS WITH SOAP AND WATER .
DRY IMMEDIATELY AND SMEAR WITH DIVIDER OIL TO PREVENT
CORROSION.

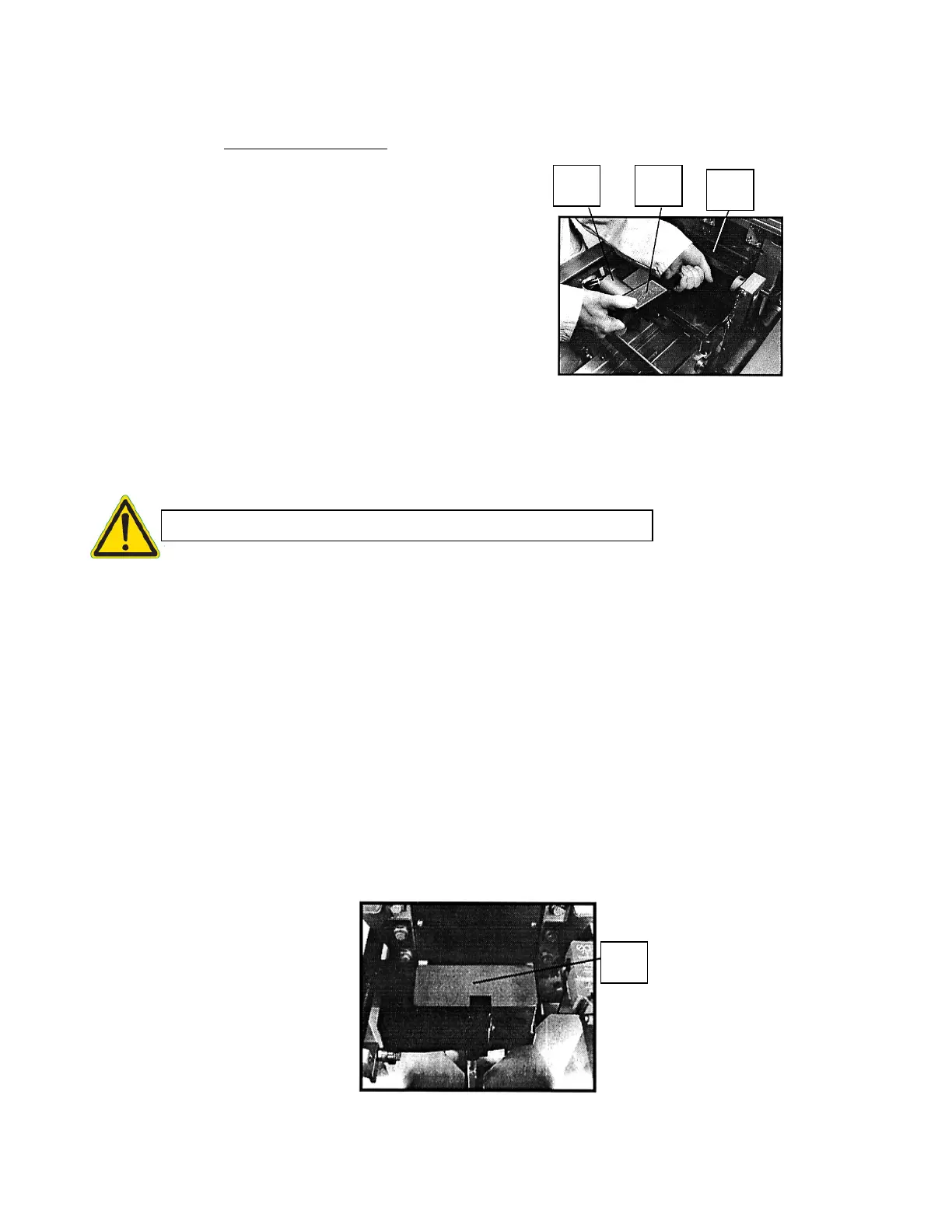

7 Lift piston saddle (10).
8 Push suction piston (29) in slightly to
clear activating pin (11).
9 Lift saddle and remove suction piston,
place on clean surface and clean as
described in 5/6.
10 NOTE: CLEAN INTERIOR OF SUCTION CHAMBER (30) WITH
TRIANGULAR SCRAPER (3) PROVIDED; PAYING PARTICULAR
ATTENTION TO TOP SURFACE WHERE KNIFE BEARS (SEE
SAFETY INSTRUCTIONS).
WARNING! NEVER PUT YOUR HAND INTO CHAMBER
11 Wipe all components clean with tissue and smear components with divider oil.
12 Insert suction piston (29); lift piston linkage; pull back piston to appropriate
notch (see setting instructions) and lower onto activating pin (11).
13 Slide in knife blade (25) ensuring surface marked "Top" is uppermost.
14 Re-fit knife blade actuating pin (9) and locking pin (8).
15 Re-fit cover (7).
SWITCH ON ISOLATOR.
16 Operate machine with aid of inching button (6) until backslide (34) is at the top
of its stroke.
29
34
