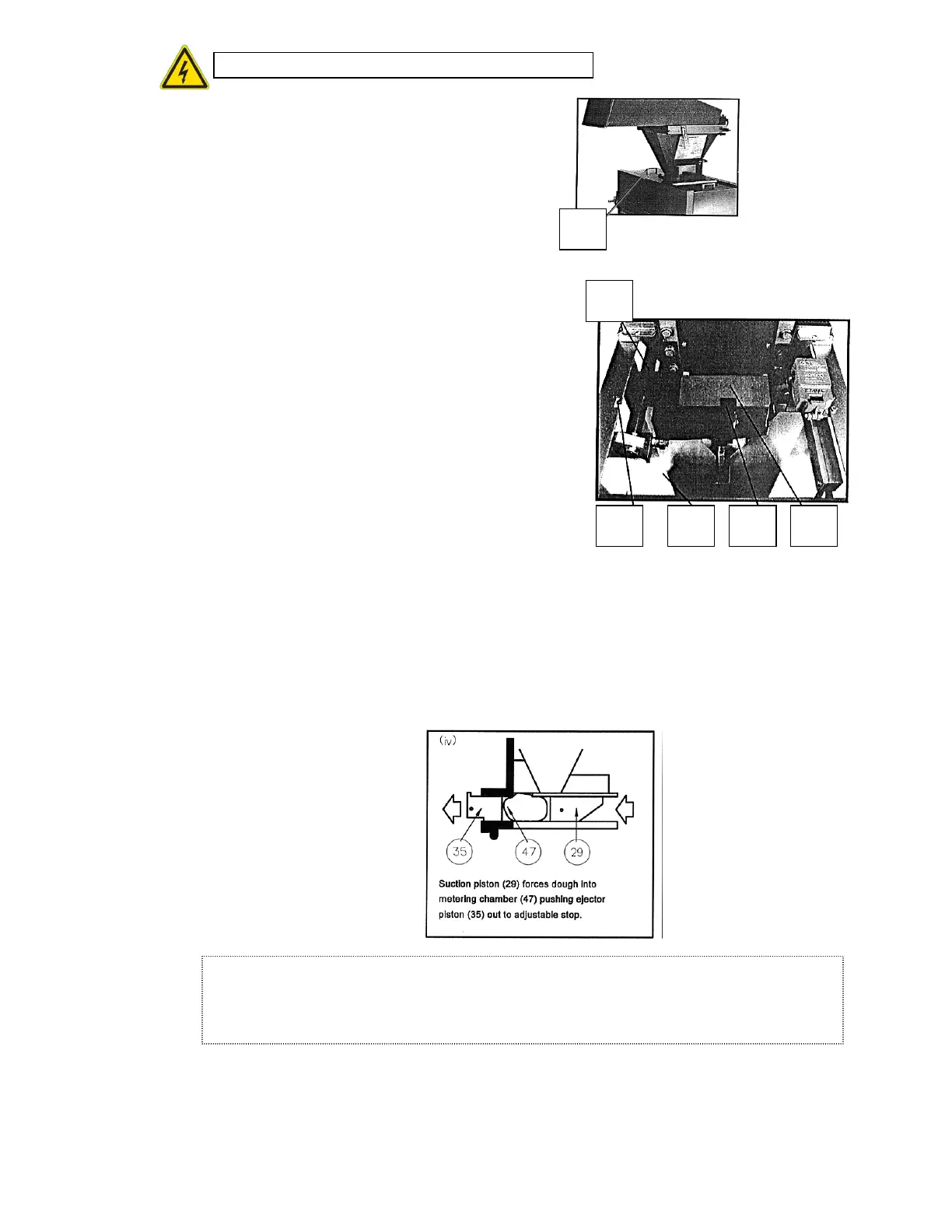

FG038 MK2 Divider RevA19 13-02-19
ISOLATE MACHINE FROM MAINS SUPPLY.
17 Lift off cover (12).
18 Raise ejector piston actuating arm (13)
and lock into retaining slot (14).
19 Withdraw ejector piston (35). Place on
a clean table and clean as detailed in
instruction 5.
20 Clean exterior surfaces of backslide.
21 Lift out guard plate (15) and clean beneath.
22 Wipe down guard sheet (16)
23 Re-assemble in reverse order to instructions 17 to 21. Lubricate with divider oil
prior to re-assembly.
SWITCH ON ISOLATOR.
24 "Inch" machine carefully through cycle then stop machine at position (iv) of
dividing cycle.
NOTE:
The above steps must be followed daily otherwise it will lead to the build
up of starch and seizure of the machine.
