© MOOG 2019
This document is subject to MOOG INTELLECTUAL AND PROPRIETARY INFORMATION LEGEND . The details are on page II.
59
MRJ06301
2-4-3. F2: Marker Mode

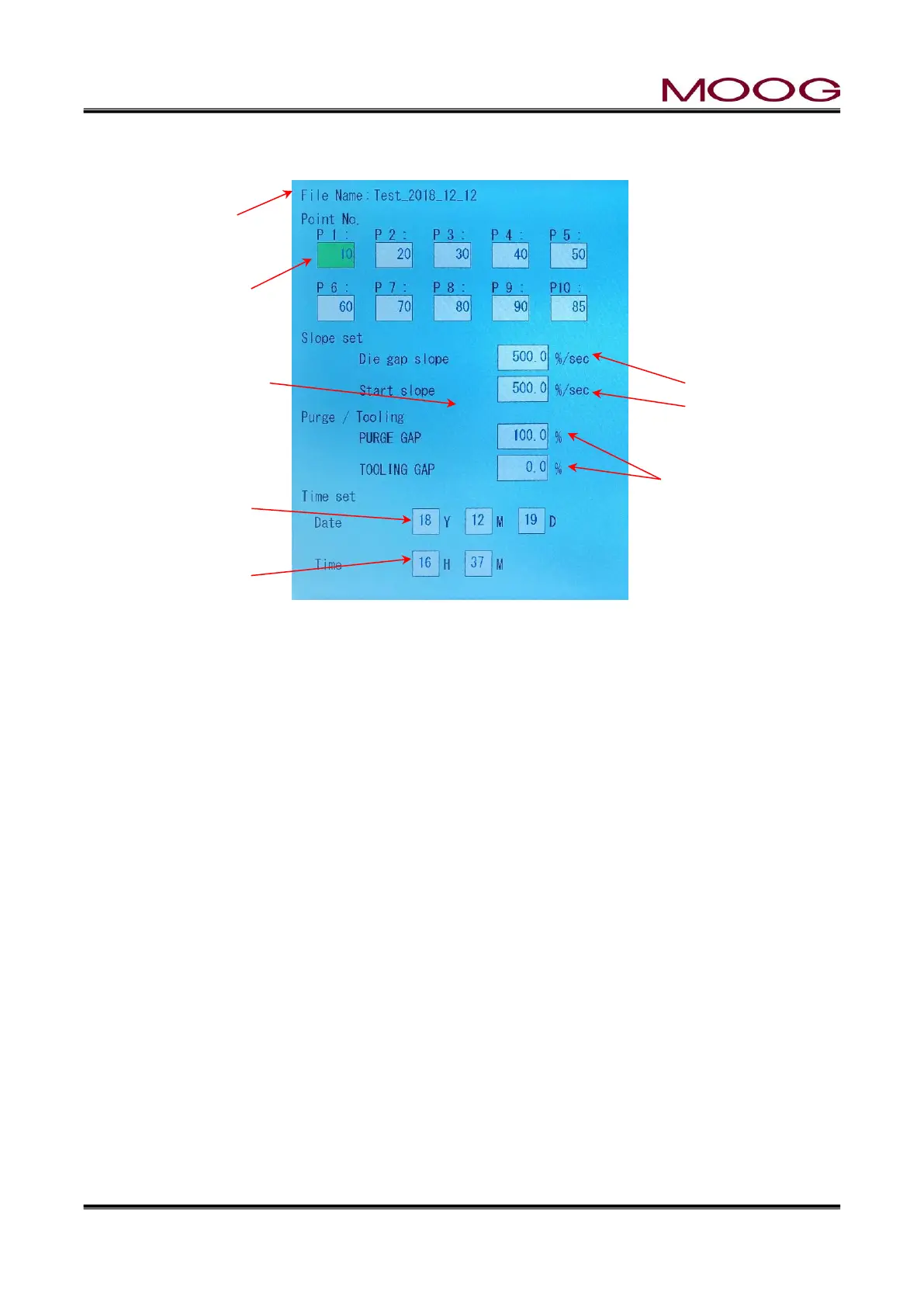

Figure 2-18 Marker Mode Screen
Mode is obtained by pushing the F2 Key.
Display
Available when manufacturing containers.
Point No.
Set the profile point marker up to 10 points on the profile. To set these conditions, move from point to point
using the Cursor Key and set point number with the Rotaly Knob or Ten key and press SET Key to confirm.
The value can be set from 0 to 200, and If set point number to “0”, this mean not set this marker point.
Use
May be used to provide a pulse output (200msec)(TB-2-20) occurring at a selectable point in the Digi-
Pack cycle to control and/or synchronize machine functions or for other uses.
Die gap slope
The slope or velocity of the motion to the “Die Gap” setting position, when the Die Gap signal is given.
Setting range is 0.1 to 999.9%/sec. Please refer to Figure 2-19 for the timing.
Start slope
The slope or velocity of motion to Point 1 position, when the Start Slope signal is given. Setting range is
0.1 to 999.9%/sec. Valid only when the “Filling” status is indicated. When the start position is reached by
the start slope, the start slope end signal (TB-2-22) is output. Please refer to Figure 2-19 for the timing.
File Name
Current
CursorPosition
Year : Month : Day
Die Gap Slope
Start Slope
Time: Minute
Purge/Tooling
Setting position
