Load or Load SD
If you select “Load or Load USB” (Figure 2-20). The file list
is displayed, starting at “No. 0 Initial file” (Figure 2-27). In
this mode, files 0 to 100 are displayed in blocks of 5. You
can find the required file by using the Rotaly Knob (the dis-
play cursor moves through the files in order) and the Cursor
(jumps files in blocks of 20) to find the desired file. Then
press the SET Key. or Touch the file you need directly and
press the [SET] key.
Figure 2-28 is displayed at the bottom of the LCD display.
Select “Quit” or “Load” or “Next” with the Rotaly Knob and
SET Key or touch the item directly.
If “Load” is selected the file loads and is displayed in F1
Profile Mode. If you select “Quit”, the initial F3 File Mode,
Figure 2-20, screen is displayed and no file is loaded.
If “Next” is selected, described other parameters.

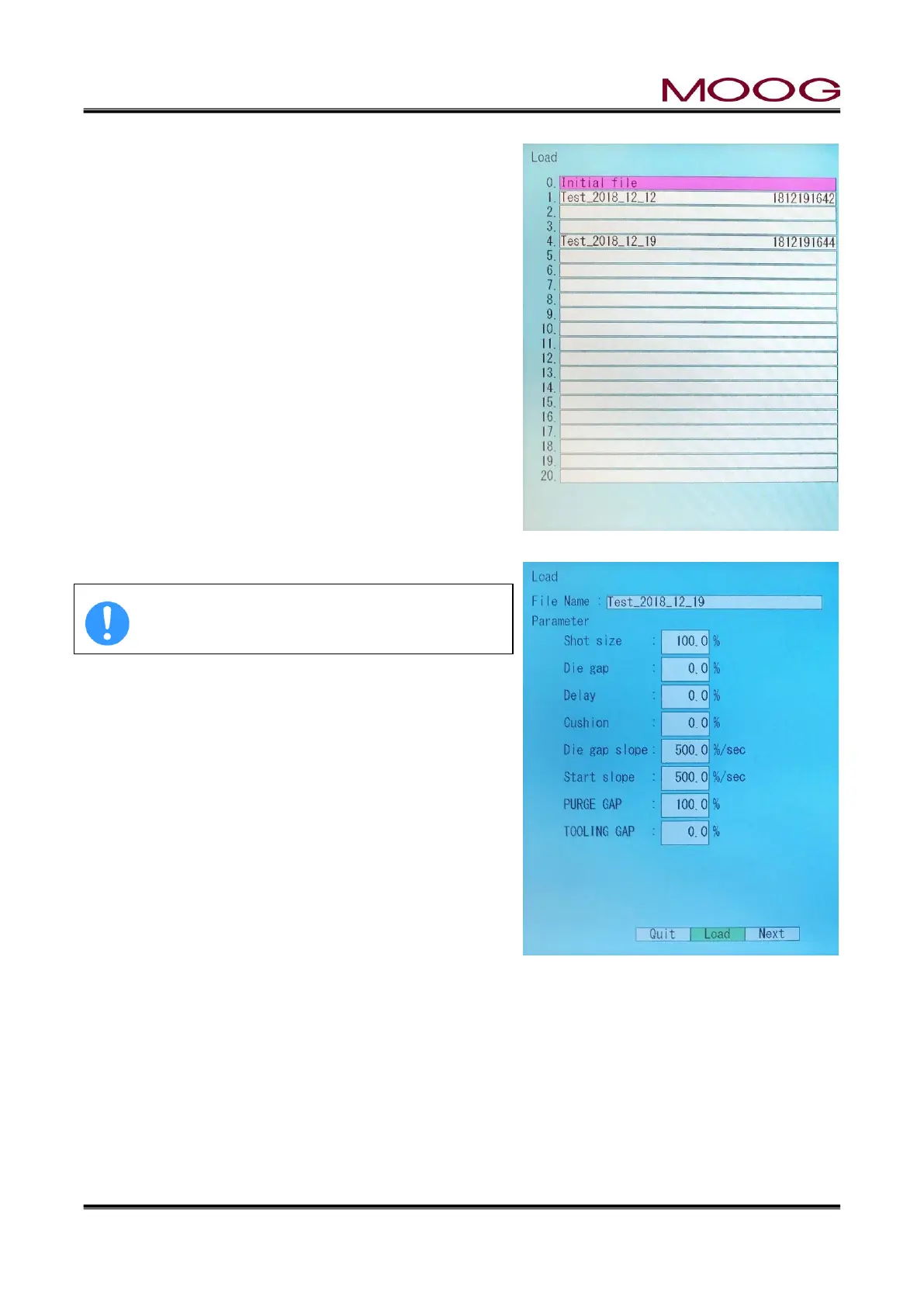

Figure 2-27 Initial Load Screen
Setup data (for example GAIN, DCDT Zero/Span,
etc.) will be loaded only for reference because of
the machine safety.
Initialize data
For the initialization method, select "0. INITIAL FILE" and
execute [Load]. As a result, all parameters return to their
initial values (factory-set values).
※ Machine setting parameters are not changed.
Figure 2-28 File Load
