61
MRJ06301
2-4-4. F3: File Mode
Mode is obtained by pressing the F3 Key.
Display
Available when manufacturing containers.
Function
This mode combines the profile, marker data and setup files
and stores them in a Flash RAM or USB Memory for future
use. To Flash RAM 100 files can be stored, and SD card can
be saved data depend on the size of USB Memory. The data
stored with identifying name of up to 32 characters, date and
time.
Commands
When F3: File Mode is selected a choice Load, Load USB,
Save or Save USB, is displayed (Figure 2-20). Load, Load
USB, Save or Save USB can be selected, using the Cursor
and Set or directly touch the applicable item.

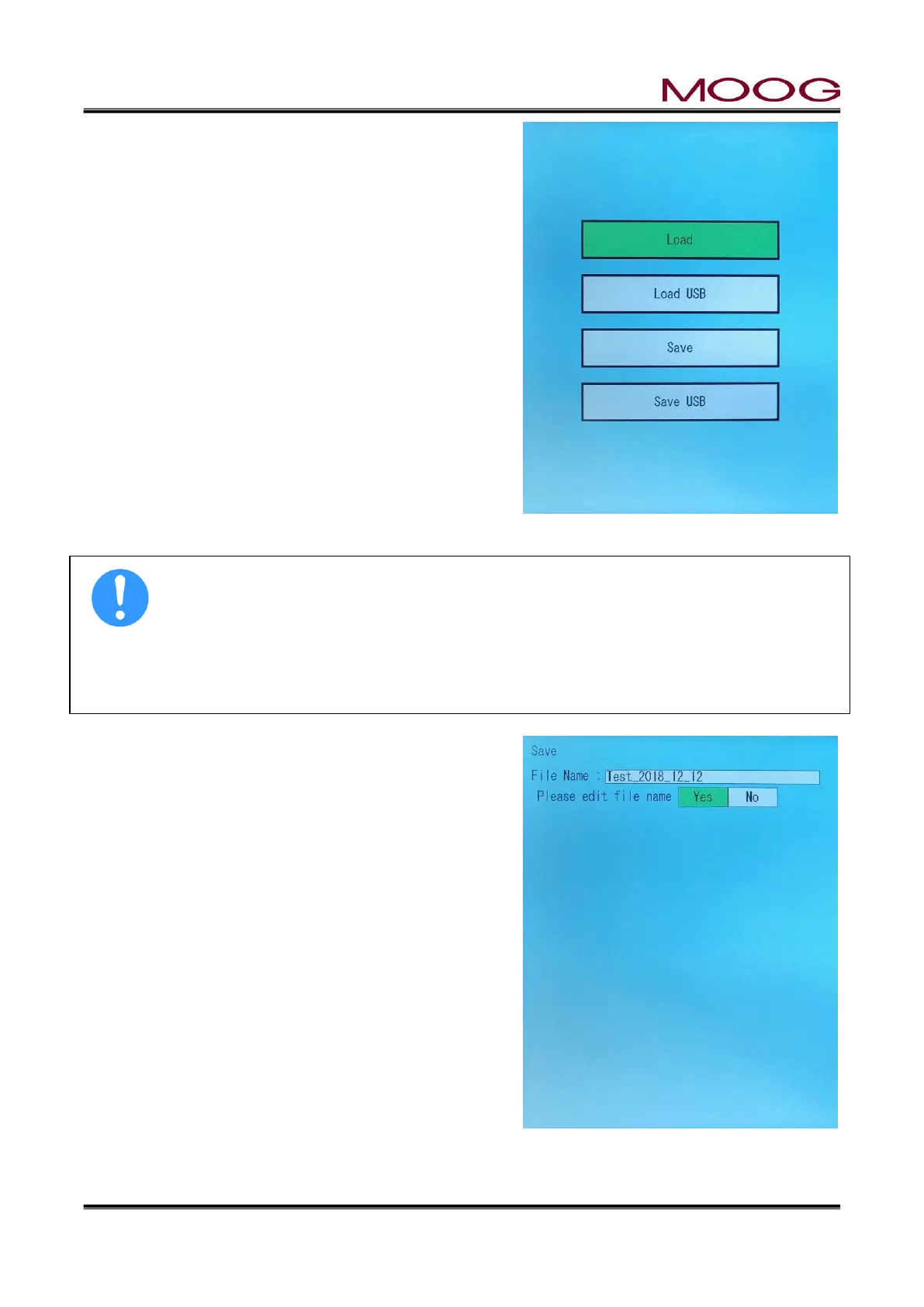

Figure 2-20 File Mode Selection Screen
For USB memory writing or reading, USB memory must be inserted in the slot. If it is not
inserted, the following message will be displayed and file management can not be continued.
USB is not insert or format is not correct
The maximum usable USB size is 32GB, the data format format is FAT32.
Please note that if you select [Load] or [Load USB], the current product data will be automatically over-
written. Please save the current product data, before load the data.
Save or Save USB
Save or Save USB combines the profile data, function item
data and point markers in one file and stores this file in the
Flash RAM or USB Memory.
Use the Up/Down cursor to select Save or Save USB and
press the SET Key or directly touch them. (Figure 2-20)
The prompt Please edit file name Yes/Nois displayed.
(Figure 1-21)
If you select YES: then go to Page 63.
If you select NO” then go to Page 62.
Figure 2-21 Select SAVE
