Moog THE SOURCE User Manual

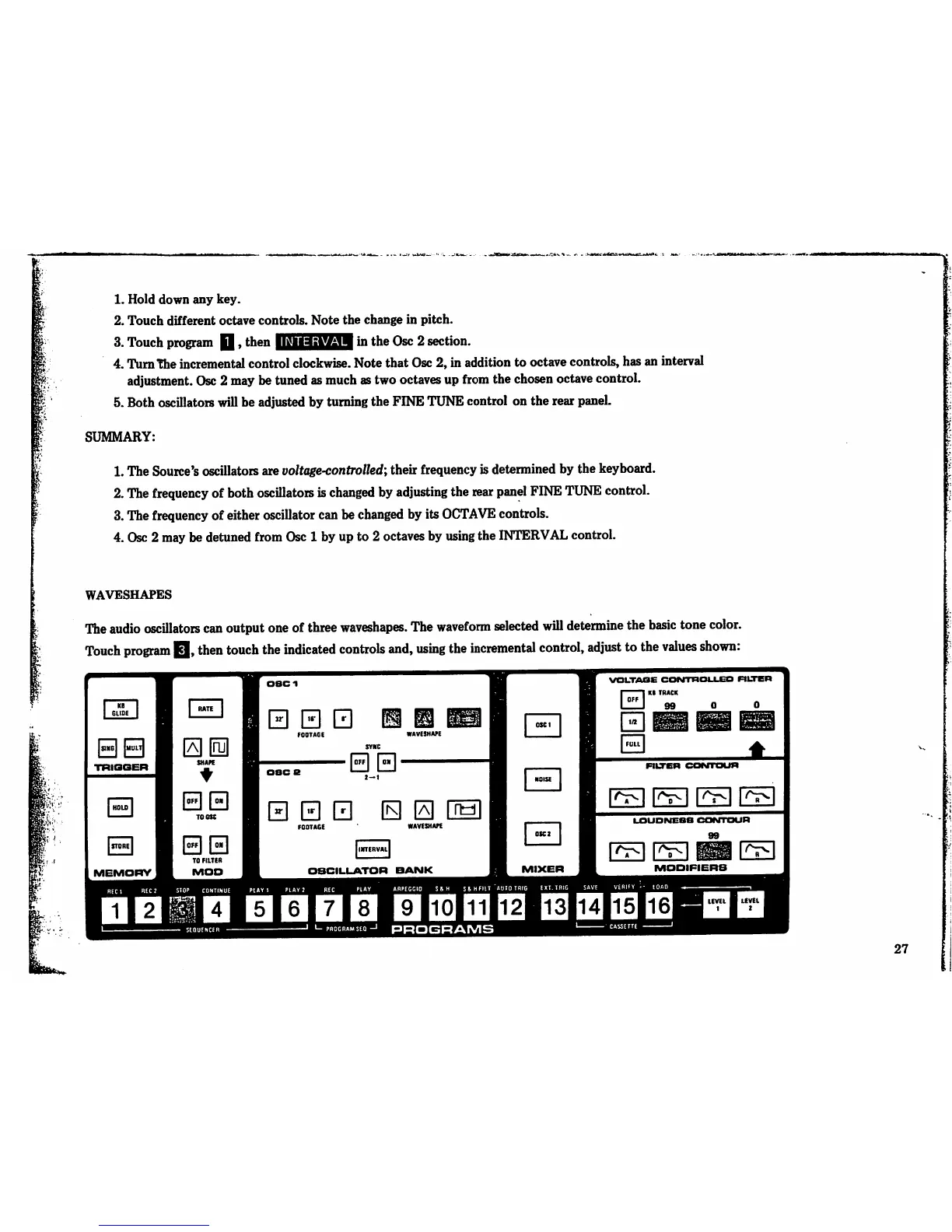

1. Hold down any key.
2. Touch different octave controls. Note the change in pitch.
3. Touch program Q, then ||£||3iKfiD m t^ie ^^ 2 ration.
4. Turn the incremental control clockwise. Note that Osc 2, in addition to octave controls, has an interval
adjustment. Osc 2 may be tuned as much as two octaves up from the chosen octave control.
5. Both oscillators will be adjusted by turning the FINE TUNE control on the rear panel.
SUMMARY:
1. The Source's oscillators are voltage-controlled; their frequency is determined by the keyboard.
2. The frequency of both oscillators is changed by adjusting the rear panel FINE TUNE control.
3. The frequency of either oscillator can be changed by its OCTAVE controls.
4. Osc 2 may be detuned from Osc 1 by up to 2 octaves by using the INTERVAL control.
WAVESHAPES
fer.
The audio oscillators can output one of three waveshapes. The wavefonn selected will determine the basic tone color.
Touch program Q, then touch the indicated controls and, using the incremental control, adjust to the values shown:
VOLTAGE CONTROLLED FILTER
KB TRACK
0 0
LOUDIME88 CONTOUR
99
27
