MOONEY SECTION VII
MODEL M20J
AIRPLANE AND SYSTEMS DESCRIPTION

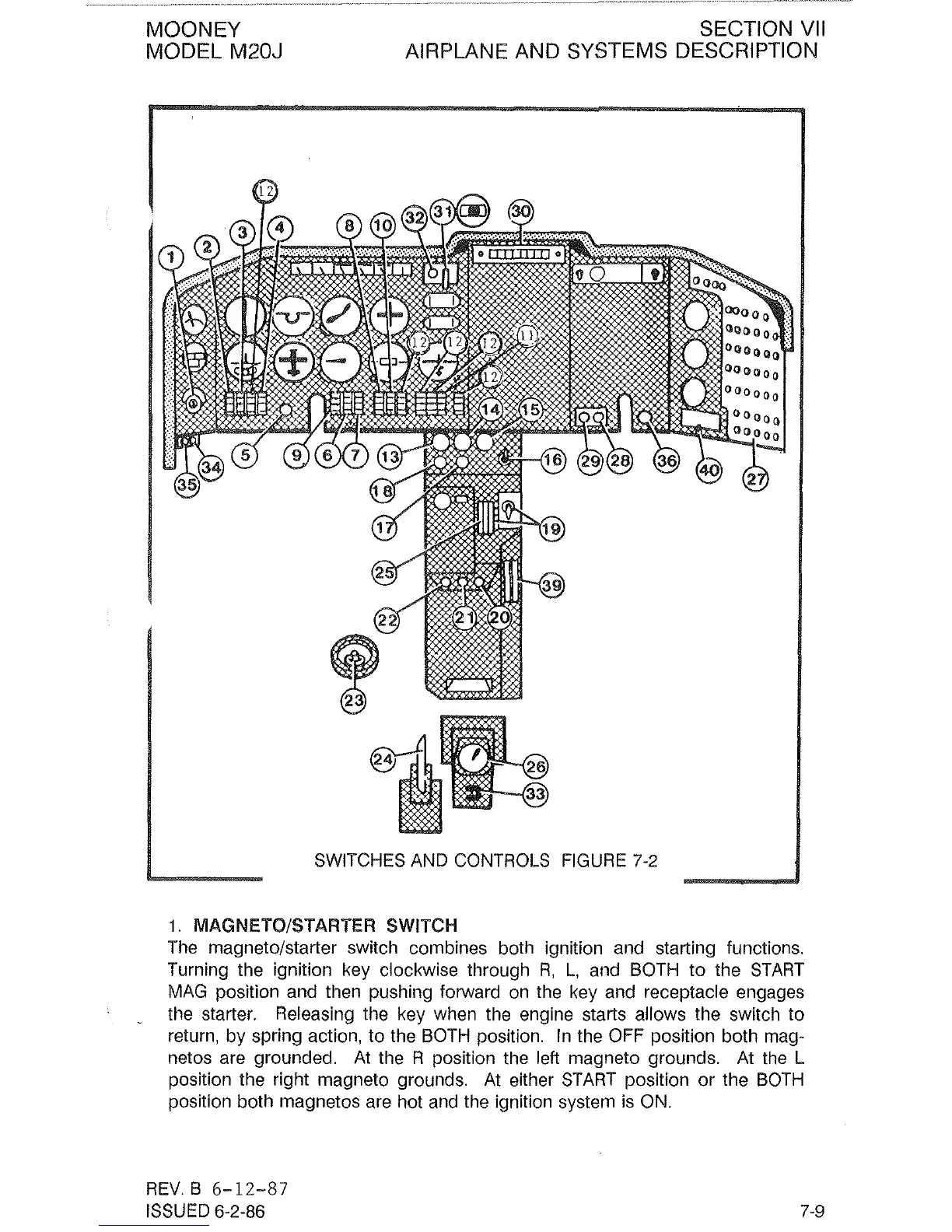

SVVITCHES AND CONTROLS FIGURE
7-2
1.
MAGNETOISTARTER SWITCH
The magnetolstarter switch combines both ignition and starting functions.
Turning the ignition key clockwise through
R,
L,
and BOTH to the START
MAG position and then pushing forward on the key and receptacle engages
the starter. Releasing the key when the engine starts allows the switch to
return, by spring action, to the BOTH position. In the OFF position both mag-
netos are grounded. At the
R
position the left magneto grounds.
At
the L
position the right magneto grounds. At either START position or the BOTH
position both magnetos are hot and the ignition system is ON.
REV.
B
6-12-87
ISSUED
6-2-86
