SECTION
II
LIMITATIONS
MQBNEY
MODEL
M2QJ
AIRSPEED
INDICATOR
MARKINGS

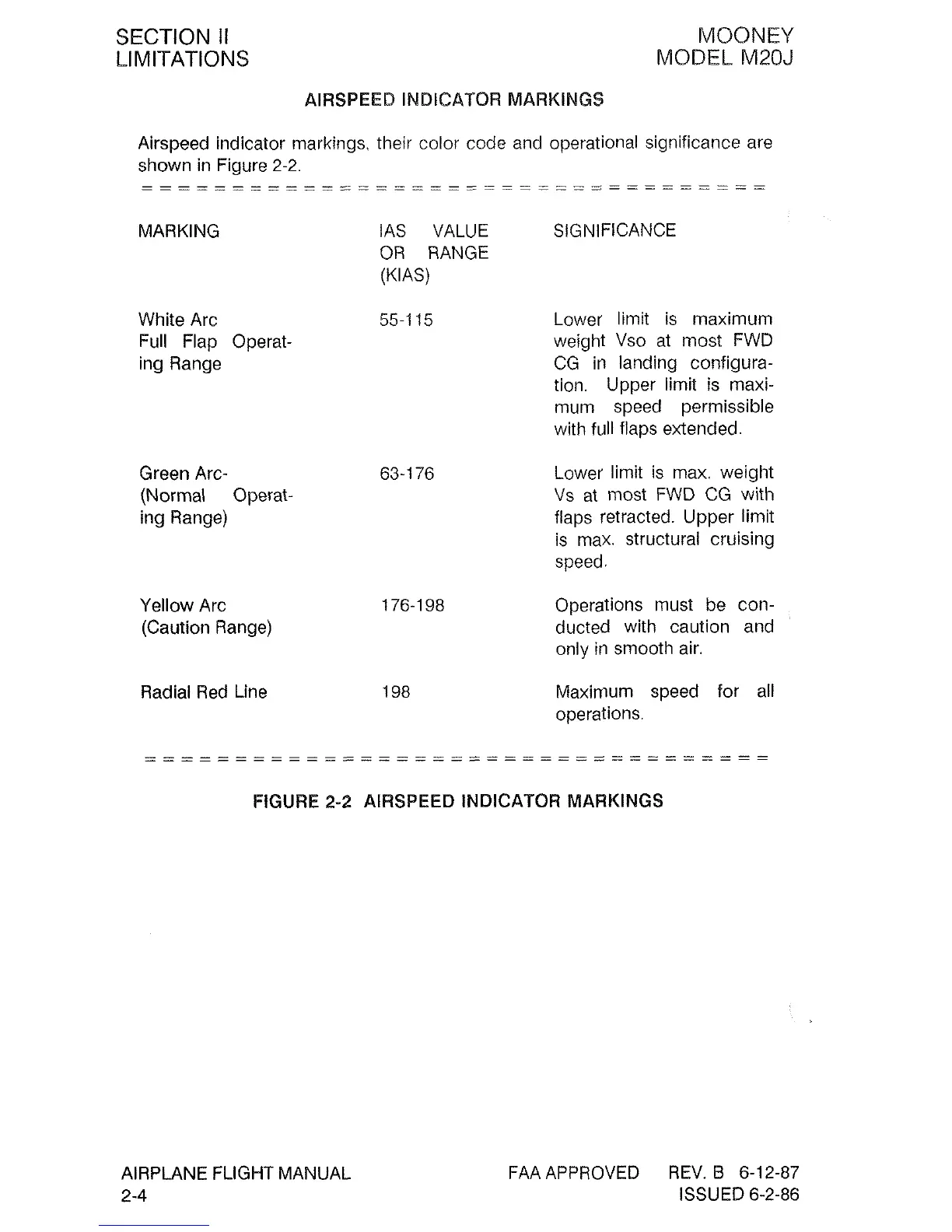

Airspeed indicator markings, their color code and operational significance are
shown in Figure
2-2.
...................................
...................................
MARKING IAS VALUE SIGNIFICANCE
OR RANGE
(KI AS)
White Arc
55-1 15 Lower limit is maximum
Full Flap
Operat-
weight Vso at most FWD
ing Range
CG in landing
configura-
tion. Upper limit is maxi-
mum speed permissible
with full flaps extended.
Green Arc- 63-1 76 Lower limit is max. weight
(Normal
Operat- Vs at most FWD
CG
with
ing Range)
flaps retracted. Upper limit
is max, structural cruising
speed.
Yellow Arc
176-1 98 Operations must be con-
(Caution Range)
ducted with caution and
only in smooth air.
Radial Red
Line 198 Maximum speed for all
operations.
FIGURE
2-2
AIRSPEED INDICATOR MARKINGS
AIRPLANE FLIGHT MANUAL
2-4
FAA
APPROVED REV.
B
6-1
2-87
ISSUED
6-2-86
