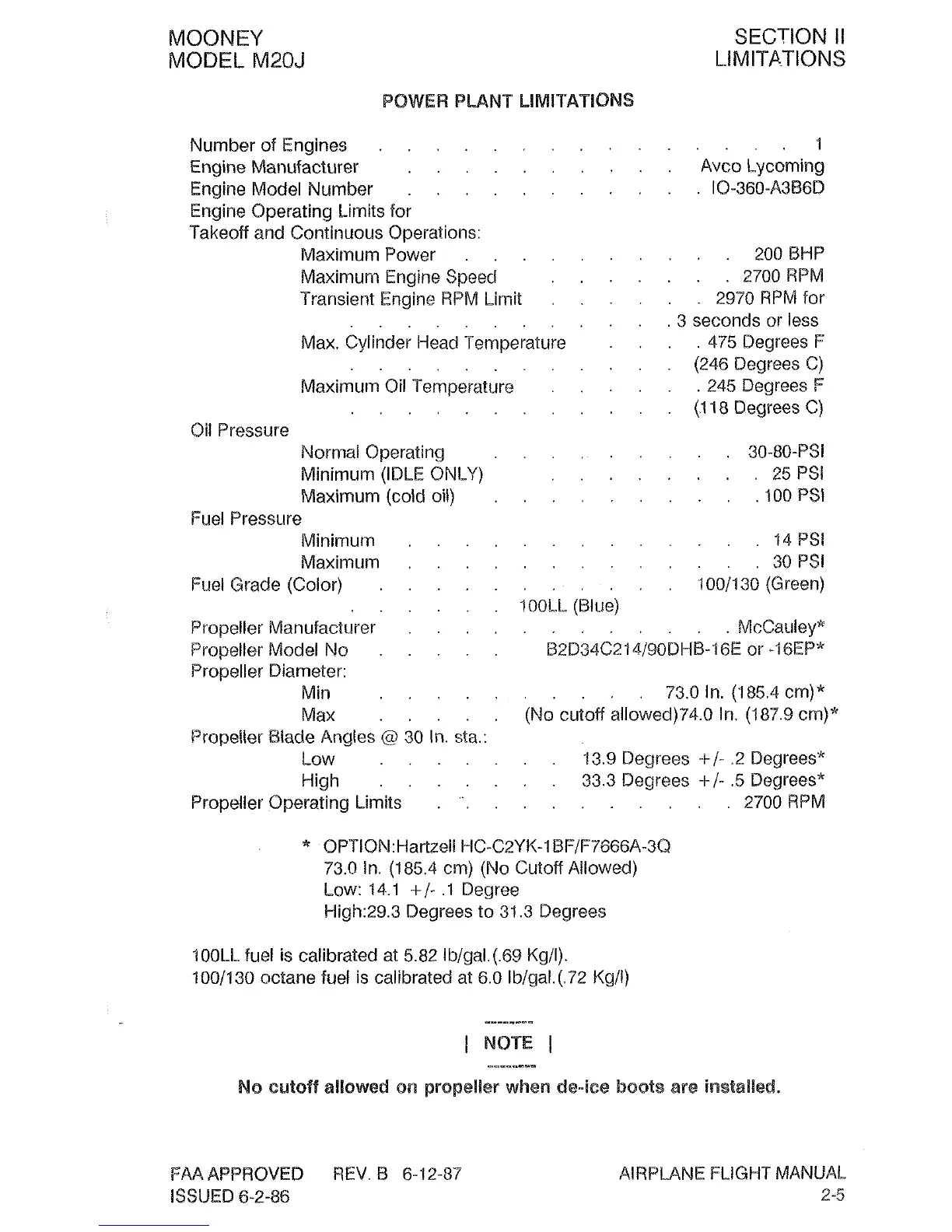

MQONEY
MODEL M20J
POWER PUNT LlMlTATlONS
SECTION II
LIMlTA.TI0NS
Number of Engines ............. 1
Engine Manufacturer ....... Avco Lycoming
Engine Model Number
..... IO-360-A3B6D
Engine Operating Limits for
Takeoff and Continuous Operations:
Maximum Power .... 200 BWP
.......
Maximum Engine Speed 2700 RPM
TransientEngineRPMLimit .... 2970RPMfor
............ 3 seconds or less
Max. Cylinder Head Temperature
.... 475 Degrees F
........... (246 Degrees C)
Maximum
Oil Temperature ... 245 Degrees F
(1 18 Degrees C)
............
Oil Pressure
Normal Operating
......... 30-80-PSI
Minimum (IDLE
ONI-Y) .... 25PSl
Maximum (cold ail) ........ 100 PSI
Fuel Pressure
Minimum
........... 14 PSI
Maxirnum ............. 30 PSI
Fuel Grade (Color) ...... 10011 30 (Green)
.. 100LL(Blue)
Propeller Manufacturer ......... McCauley"
Propeller Model No . 821934C214190DWB-16E or -16EP"
Propeller Diameter:
Min ........ 73.0 In. (185.4 cm)"
Max .. (No cutoff allowed)74.0 In. (1 87.9 cm)"
Propelier Blade Angles @ 30 In. sfa.:
Low ... 13.9 Degrees -11- .2 Degrees"
High
... 33.3 Degrees +/- .5 Degrees*
Propeller Operating Limits
...... 2700 WPM
* BPTIOI\1:Hartaell WC-C2YK-I BFIF7666A-3Q
73.0 In. (185.4 em) (No Cutoff Allowed)
Low: 14.1
+/- .I Degree
High:29.3 Degrees to 31.3 Degrees
100bl- fuel is calibrated a"l.82 l blgal, (.69 Kgll).
1001130 octane fuel is calibrated at 6.0 lb/ga1.(.72 Kgll)
--=-""--
I NOTE I
--------
No cutoff ailowed on propeller when de-ice boots are installed.
FAA APPROVED REV. B 6-12-87
ISSUED 6-2-86
AIRPLANE FLIGHT MANUAL
2-5
