SECTION 5
Connecting to THZ
3
/TDZ
3
using MISP
To congure the MISP Communications DTM you will need to add necessary DTMs within the
PACTware software to start your conguration. You will also need to have a Moore Industries
Fuse Protected USB Communications Cable (sold separately P/N:804-030-26). Refer to Fuse
Protected USB Communications Cable documentation for installation of USB Communications
Utility and conguration. Follow steps below to connect and conguration your device.
1. Connect TDZ
3/
THZ
3
unit per Figures 5.1- 5.3.
2. Launch PACTware software.
3. Right Click on the Device Tag named “HOST PC” and select “Add device”

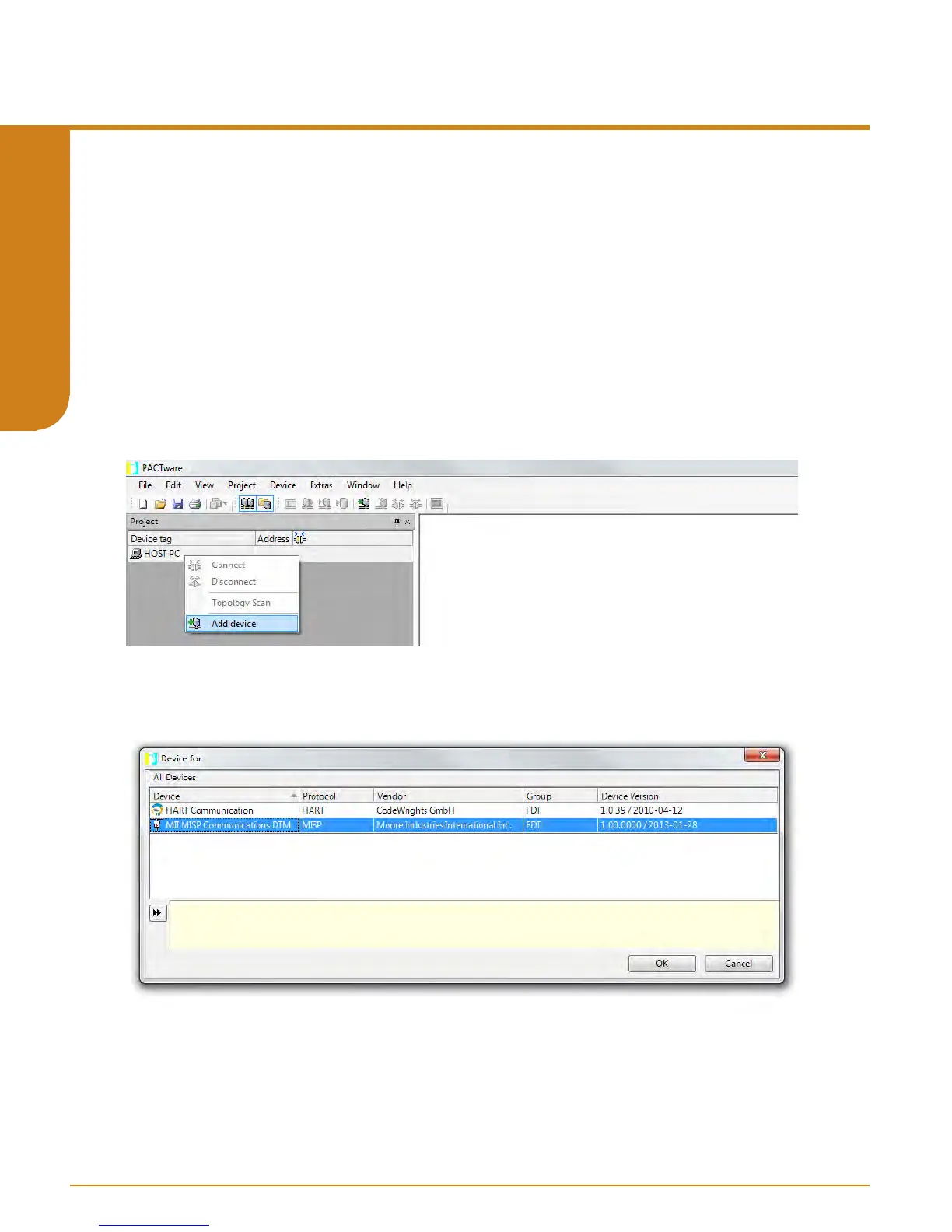

Figure 5.4. MII MISP configuration adding a device.
4. Select the MISP Communications DTM and enter OK.
Figure 5.5. Adding the MII MISP Communication DTM.
