SECTION 5

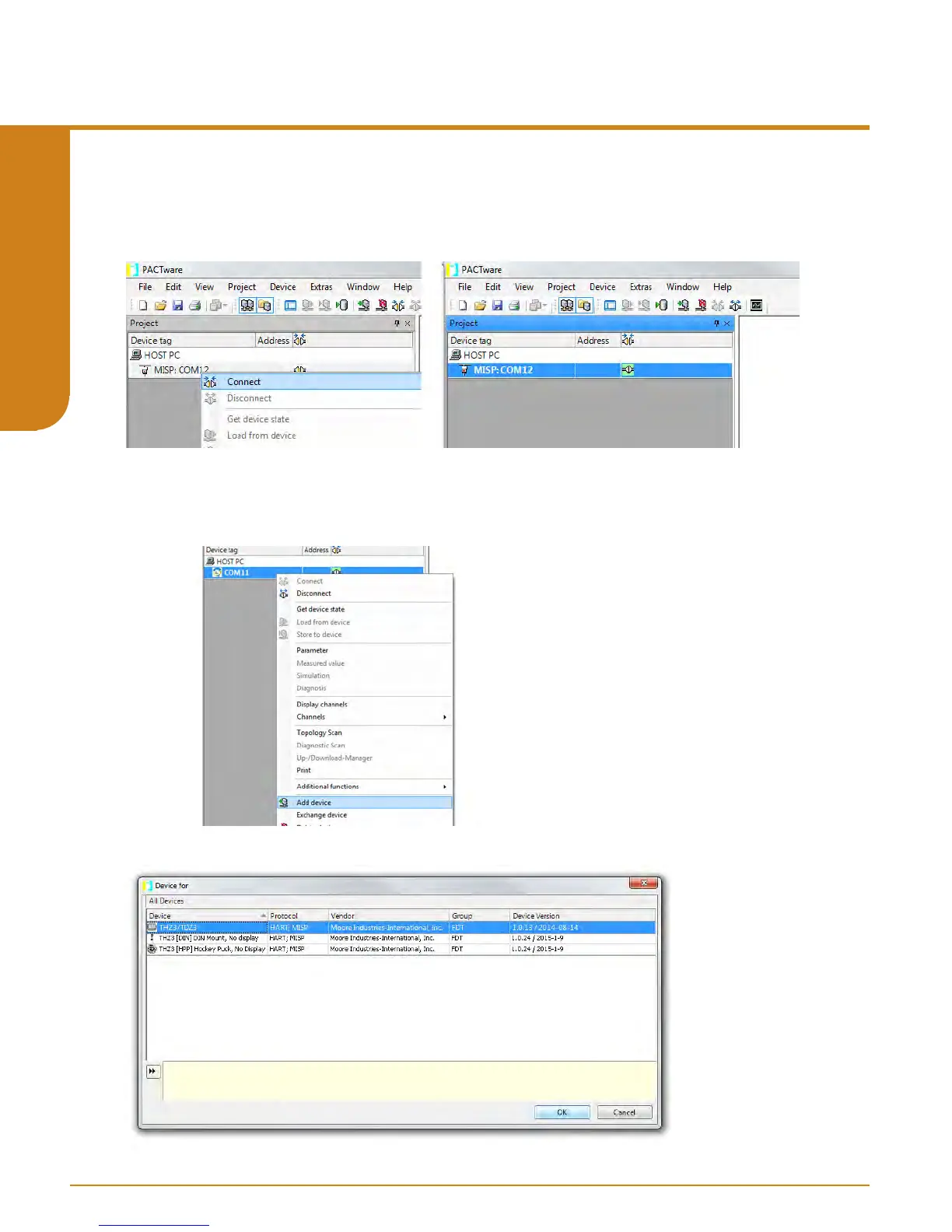

Figure 5.8. COM Port Confirmation
7. Return to Device Tag Menu the MISP COM port you selected should now appear i.e.
“MISP:COM12” hover over it, right click and select “Connect”. You will now see the “online state”
turn green to indicate you have a connection.
Figure 5.9. Adding Device to MISP:COM Port
8. Next you will right click on “MISP:COM 12” and select “Add device”. Select desired
TDZ
3
/ THZ
3
DTM from list and click “Ok”. See Figures 5.9 and 5.10.
Figure 5.10. Selecting desired THZ
3
/ TDZ
3
DTM
