Morgana DigiFold Pro - Page 12

Page12
FOLDING

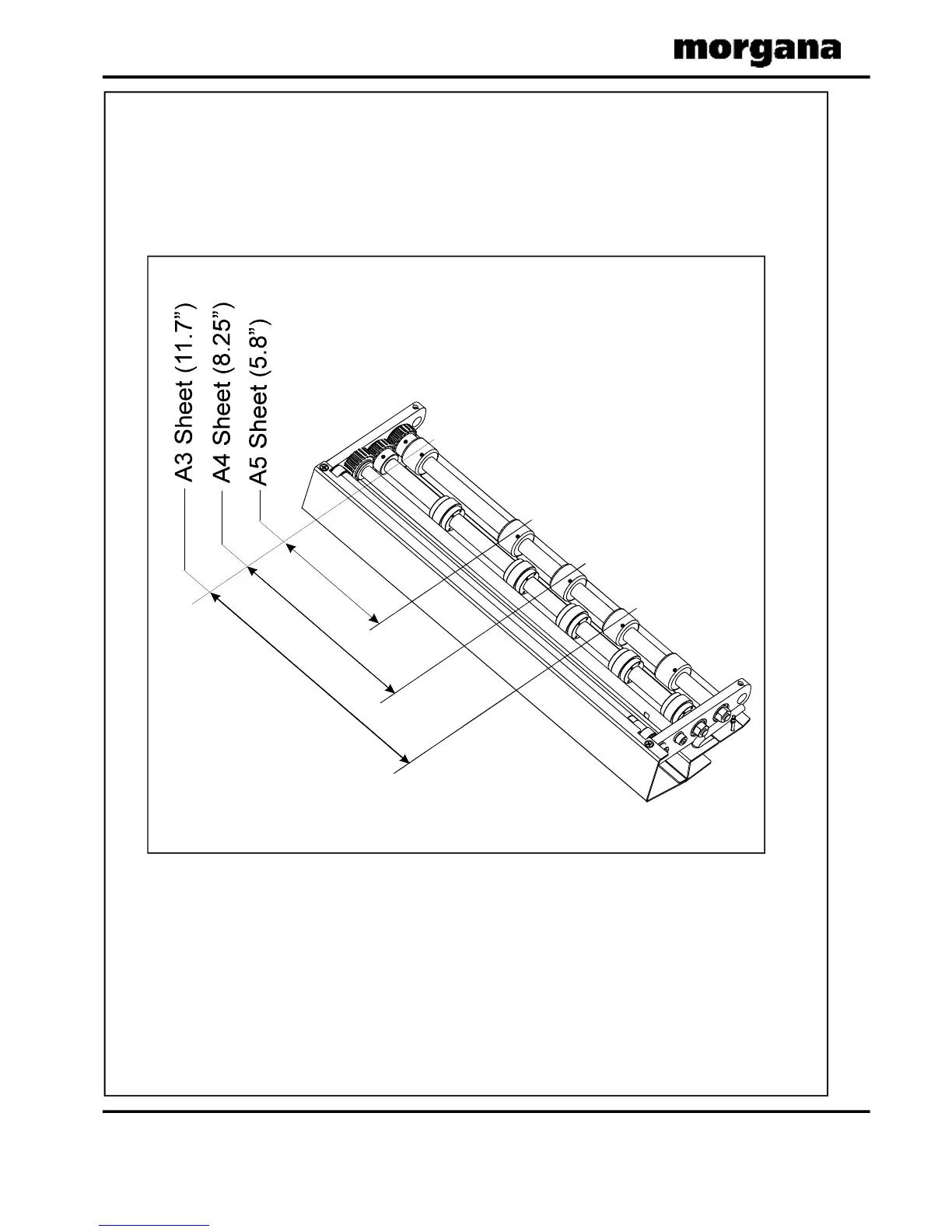

FIG15.1
WHEEL&HUBARRANGEMENT,(WHENFOLDING)
Settingthepositionsofdrivewheelsandhubs
Itisimportantthatthedrivewheelsanddrivehubs,ontherollershafts,arearrangedacross
thewidthofthemediabeingcreased;thisisdonetoensurethatthemediaisaccurately
drivenandsupportedthroughtherollers.Asuggestedlayout,,isshown
below(seeFIG15.1).Thesuggestedlayout,isdifferent,andisshownon
page44(seeFIG38.1).
Thedrivewheelsandhubsarefixedtotherollersbygrubscrews.
whenFolding
whenperfing,
OperatingtheDigiFoldPro
