7.4 Slitting

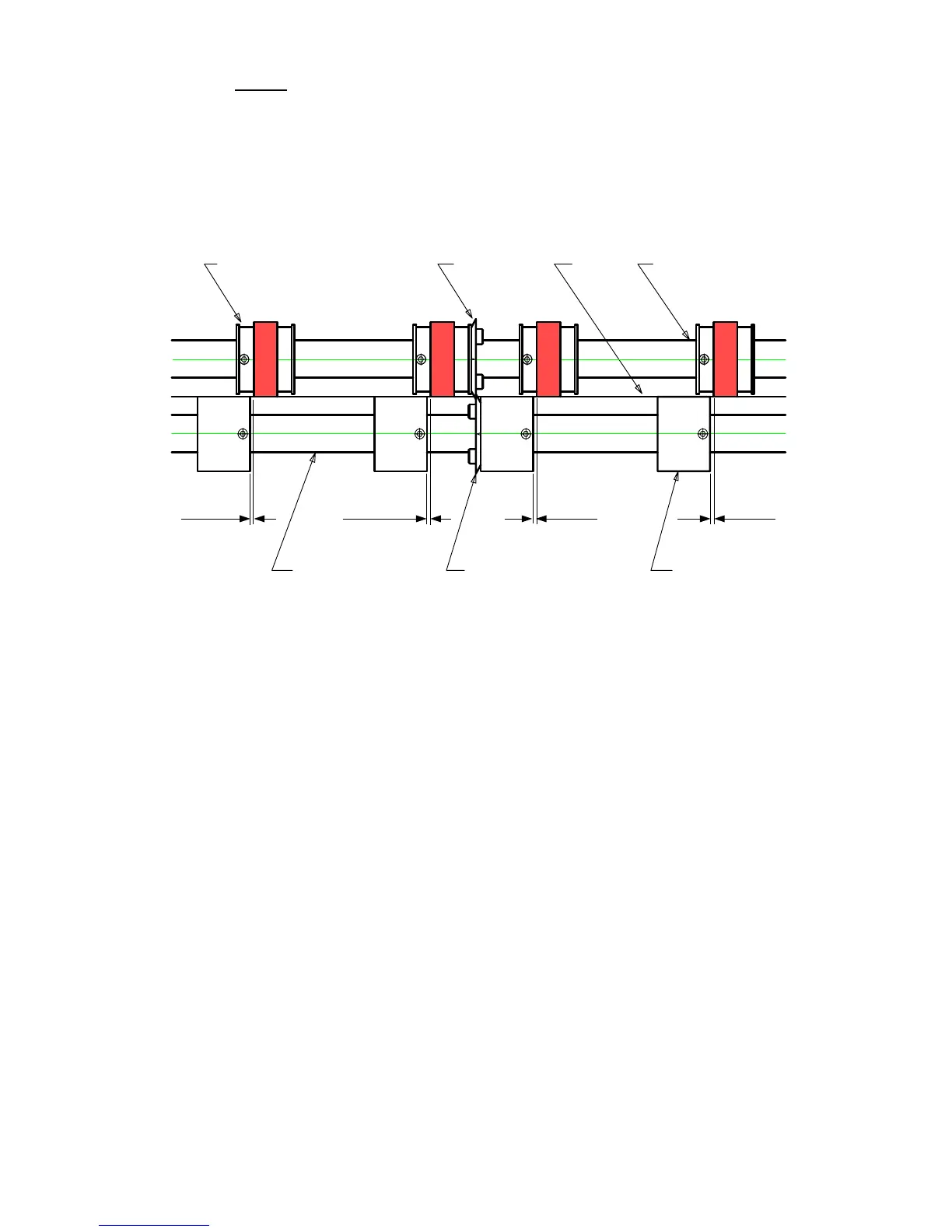

The slitting set (part number 1-99-13P) consists of two blades which have
been split in half. Before fitting, ensure that the side faces of the hubs are
clean. Using the screws provided, mount them to the hubs as shown, and
line the blades up to the job as described on page 14.
SLITTER BLADE
SLITTER BLADE STOCK
1,0 mm
( 3/64")
1,0 mm
( 3/64")
1,0 mm
( 3/64")
1,0 mm
( 3/64")
LOWER HUBS (SOLID)LOWER OUTPUT SHAFT
UPPER OUTPUT SHAFTUPPER TYRE AND HUB ASSEMBLIES
15
