10.3 Changing the Lay Side on the Crossfold

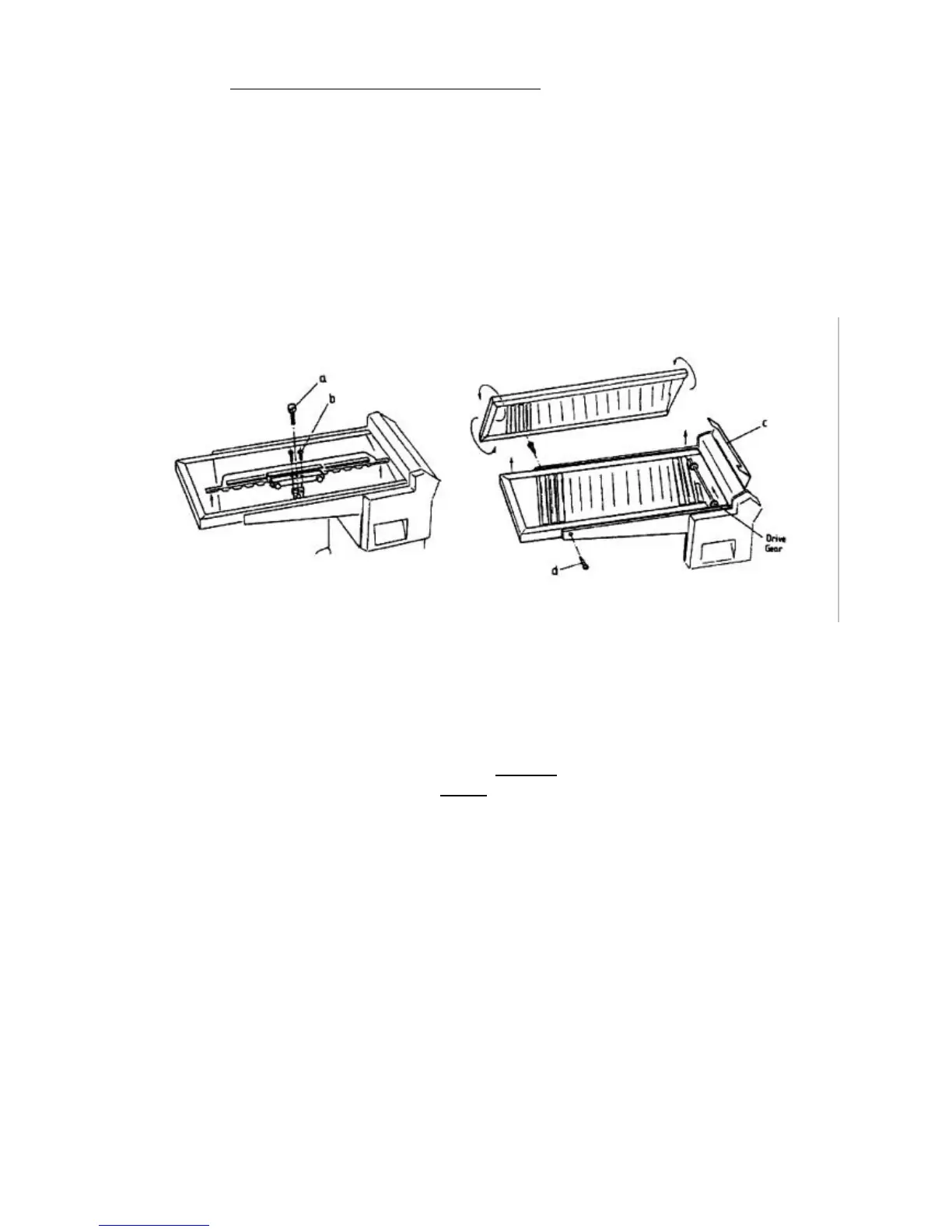

1. Remove locking knob (a) and M5 cap screws (2 off ) (b) with 4mm
allen key provided and lift side lay away.
2. Raise guard (c), lift the roller bed at the front and support it on its
prop. Slide the drive gear along shaft (using a 2mm allen key)
and re-locate screw into the groove on the other side. It may be
necessary to remove bale arms to achieve this.
3. Drop the roller bed off its prop and remove the shoulder screws (d). Lift
bed, turn it over and replace shoulder screw. Check that the drive gear is
aligned.
4. Replace side lay. Check that it is parallel
to the side frames before
tightening M5 cap screws firmly.
5. Remove completely the two adjusting screws (e). Turn the fixed side lay
(f) end over end.
Replace the adjusting screw (e) into the slotted carrier first, while
locating the springs.
Replace the second adjusting screw (e) and set the lay to '0' (zero) on
the scale.
Slide the ball retainers (g) to the opposite end.
24
