SECTION 9: PROBLEMS AND SOLUTIONS
It must be remembered that many problems occur due to incorrect or
badly adjusted settings and that the instructions found in this book will
help resolve them.
20
9.1 Fuses
If any malfunction occurs, always check the fuses before taking any other
action. If fuses blow repeatedly call the engineer.
Always switch off the main power supply before changing fuses.

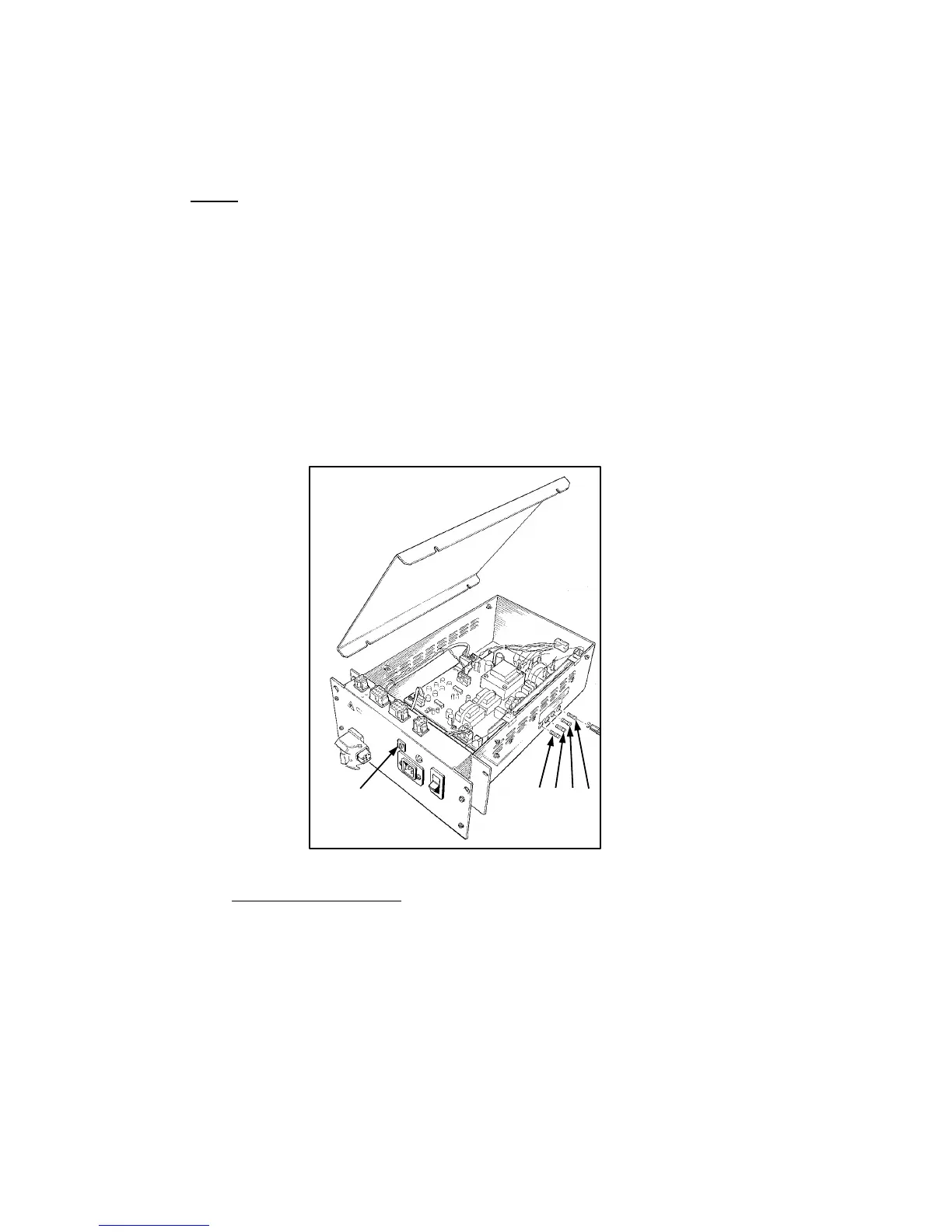

1. Safety Fuse 4. Motor 1
Anti-surge100mA Part No. 613-344 Fast Blow 3.15A Part No. 681-005
2. Auxiliary Output 5. Control Board
Fast Blow 2.0A Part No. 681-004 Time Lag 160mA Part No. 613-397
3. Motor 2
Fast Blow 2.0A Part No. 681-004
9.2 Electric Delivery Fuse
The electric delivery fuse is located in its speed controller. The
speed controller must be removed from the electric delivery to gain
access to the fuse.
This is done as follows:
Remove the electric delivery conveyor from the machine.
Slacken the two thumb screws.
Remove the pozi head screw located at the right hand side of the
controller.
The fuse may now be withdrawn from the black, rectangular holder.
1
5
43
2
