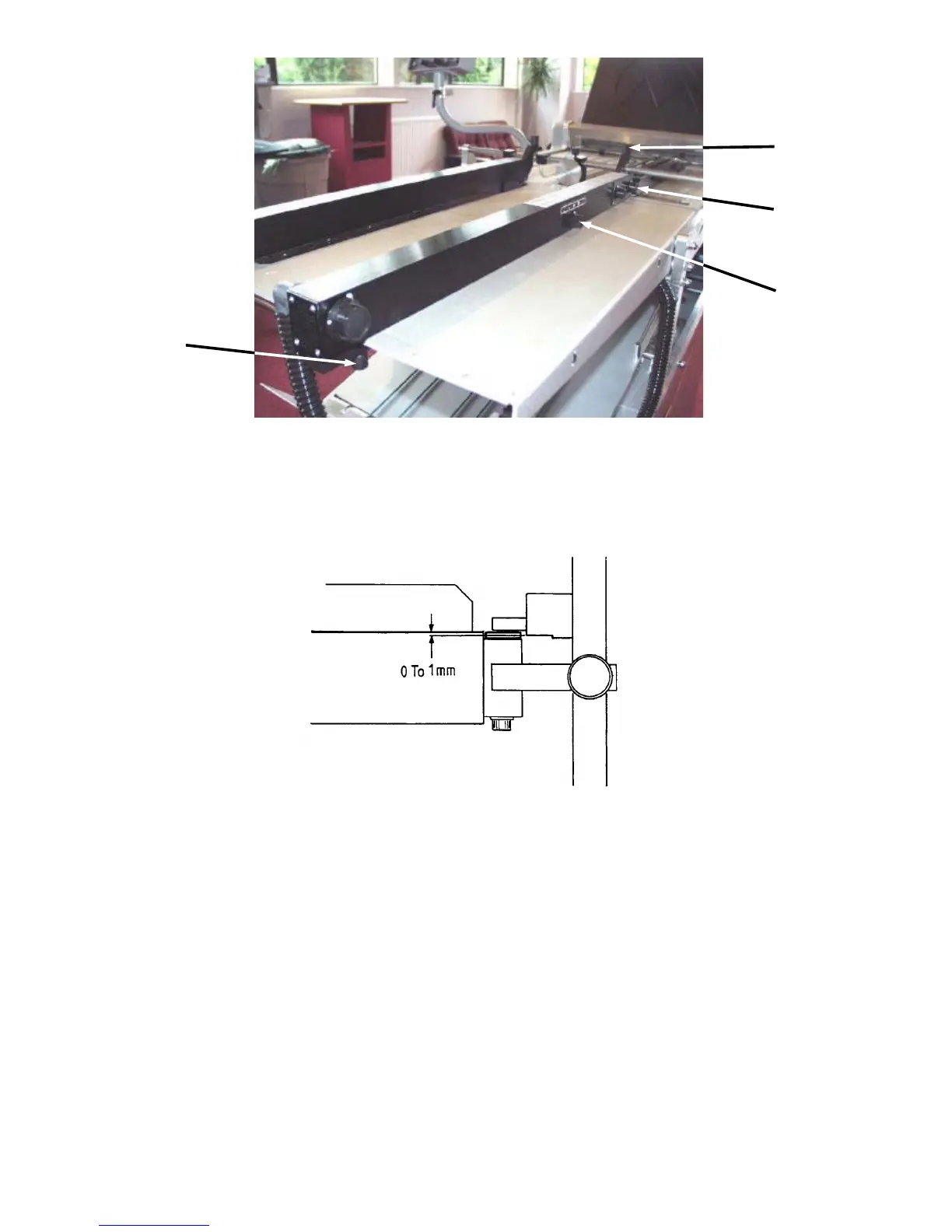

3.4 The manifold should be aligned to the side lay as shown in the diagram
below and also aligned equally to the scales on the loading table. Re-tighten
screws (C) and (D).
3.5 Place a stack of paper on the loading table and set the far side manifold to
the paper size:
not too tight - this will restrict the feeding
not too loose - thus wasting air, giving low pile heights.
3.6 Set the air control knobs (E) on both manifolds to the desired positions:
white dot at 12 o’clock for fully on
3 o’clock or 9 o’clock for fully off.
These are normally set in the fully on position, unless running lightweight
stocks, carbonless sets, or landscape jobs.
