SECTION 11: MAINTENANCE
11.1 Sheet Detector
This detector is the sensor for the batch and total counter, and is as shown.
Some machines have their reflector plate fixed to the papergate.
The sensor operates from an infra-red beam reflected off the reflector plate.
The position of this reflector is factory set and must not be disturbed.
25

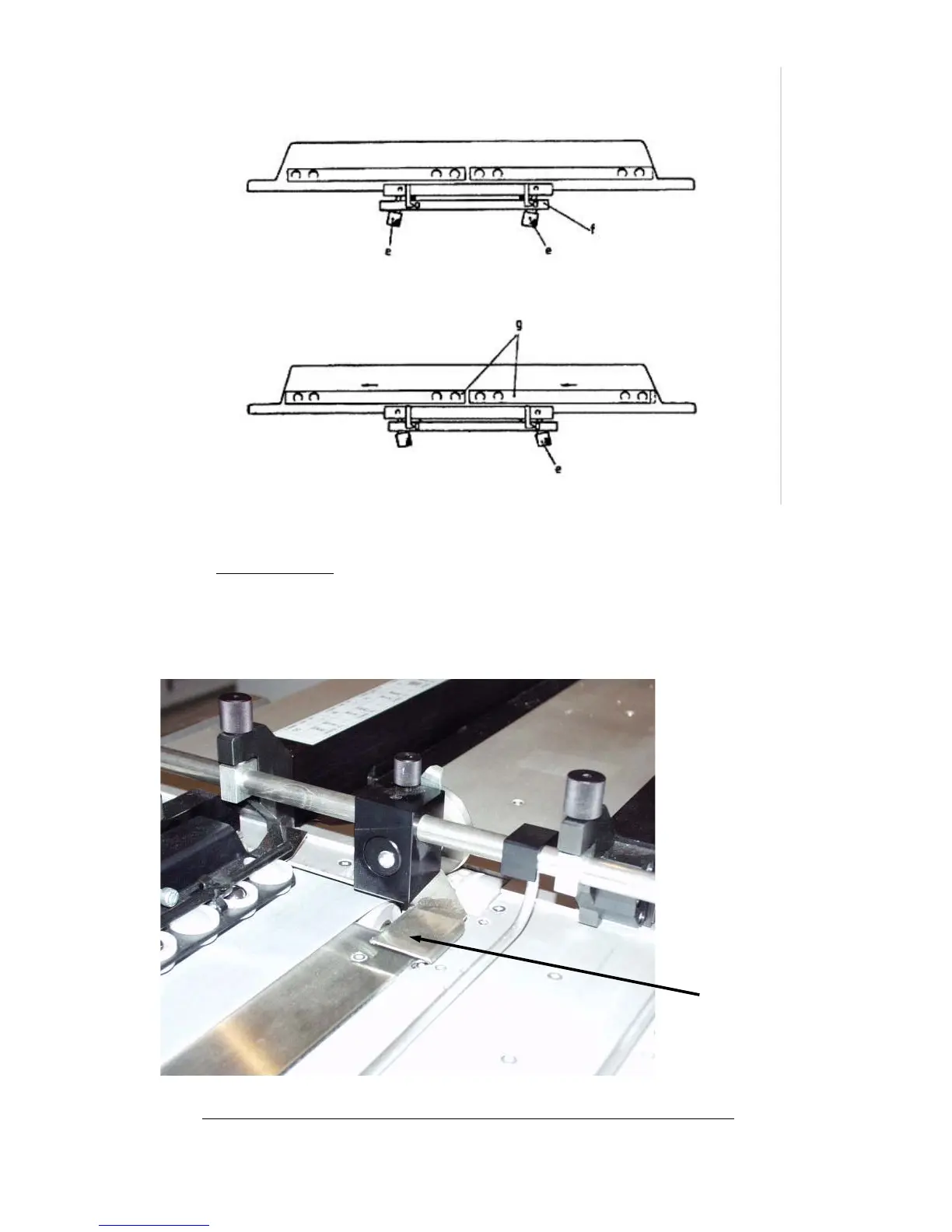

Reflector plate
