Operation
5-6 August 2014 C2 Contour Air Drill
Transport - Continued
Transport to Field Position
• Position machine on level ground.
• Stop tractor, and engage park brake.
• As a precaution, check surrounding area to be sure
it is safe to lower wings.
• Remove castor lock pin from main frame gauge
wheels.
• Unlock the wing valve and opener valve. Do not walk
under raised wings.
• Operate opener hydraulics, to ensure all openers are
retracted.
• Operate wing lift hydraulics until wings are lowered
and the cylinder shafts are completely extended to
allow wings to oat when working in uneven land.
Never raise or lower wings when moving.
Note: When raising or lowering wings, do so in one
continuous motion until fully up or down. Do
not stop ow part way allowing wings to fold
on their own. This may disrupt the sequence
of operation.
Danger
Always stay clear of wings being raised,
lowered or in elevated position. Ensure
cylinders are completely filled with hydraulic
fluid - wings may fall rapidly causing injury
or death.

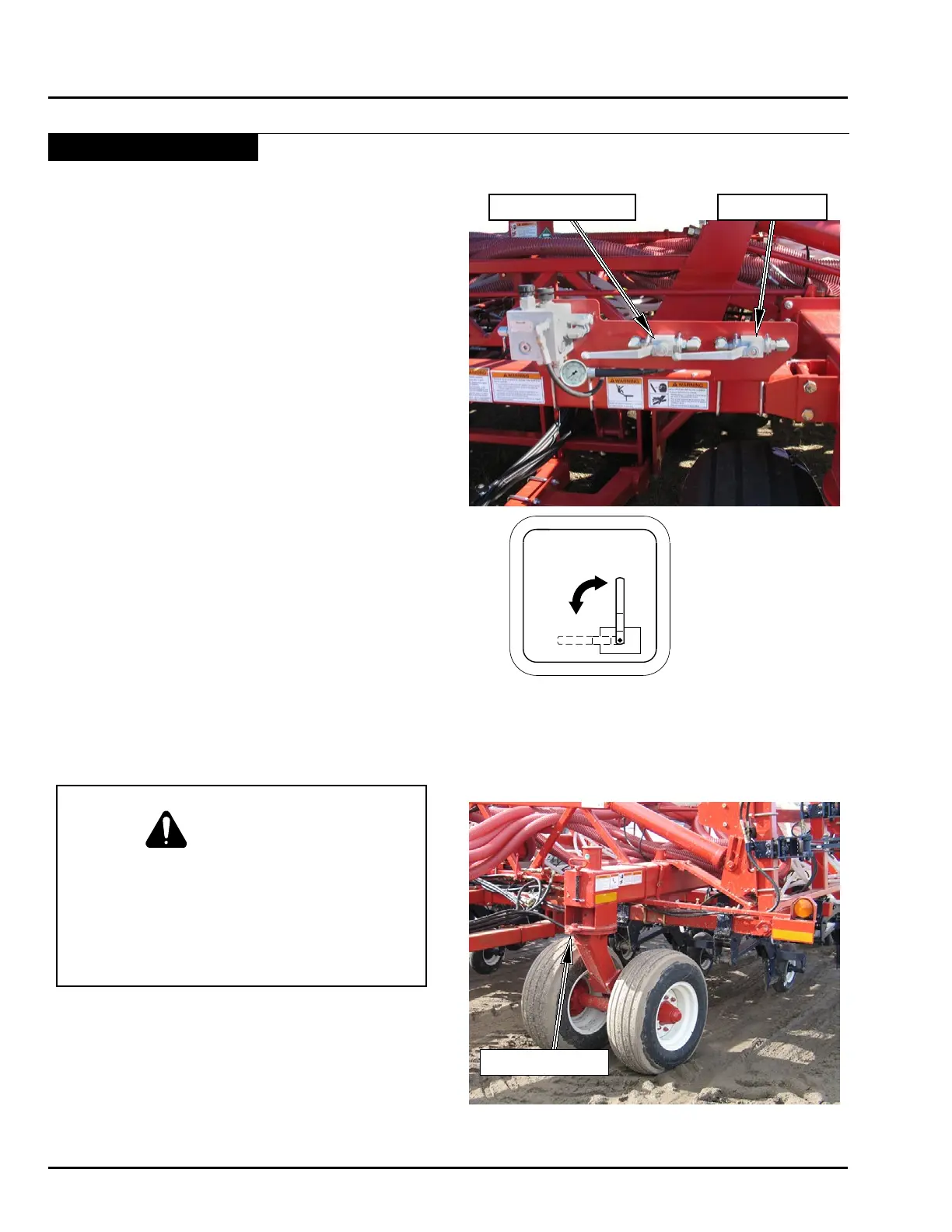

OPENERS VALVE
WING VALVE
S34428
UNLOCKED
WINGS
LOCKED
DECAL - S34428
CASTOR LOCK
