Maintenance
C2 Contour Air Drill August 2014 6-25

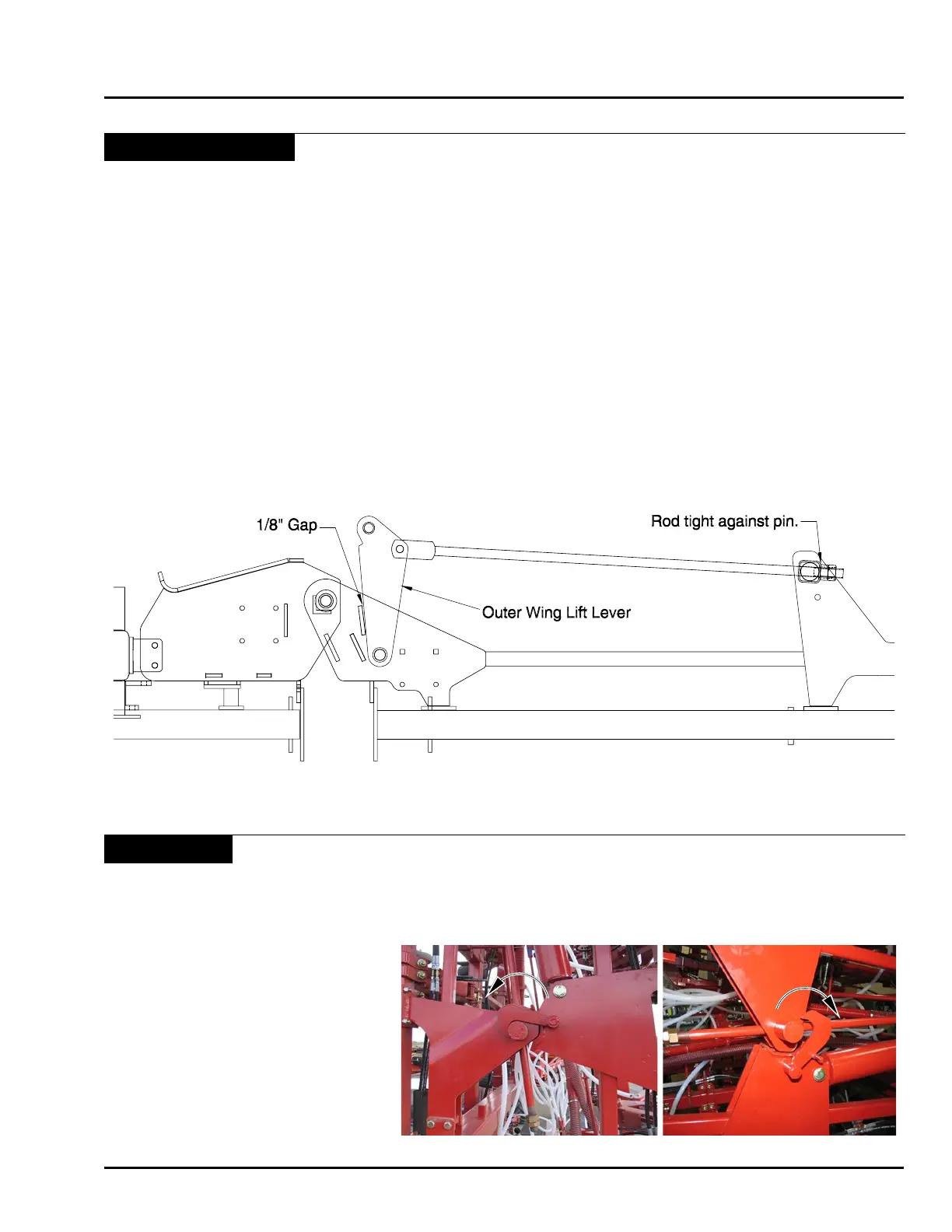

Outer Wing Lift Rod
Check seasonally to ensure the wing lift rods on the
outer wings are adjusted correctly.
Adjust the Outer Wing Lift Rod as follows:
• With the cylinder disconnected pull the outer wing
lift lever against the gusset in the lift arm.
• Adjust rod length until there is an 1/8” (3 mm)
clearance between the outer wing lift lever and
gusset.
Note: Do not exceed 1/8” (3 mm) clearance.
Damage to frame components may result.
• Tighten jam nut to secure in place.
After initial wing-up the clearance will decrease, but do
not re-adjust clearance.
Gravity Lock
Ensure gravity locks move freely in both directions.
Note: Damage to wing lift components will result if
gravity locks malfunction.
Winged DownWinged Up
