Maintenance
6-24 August 2014 C2 Contour Air Drill
71 Foot Unit Shown
TIE ROD
TIE ROD

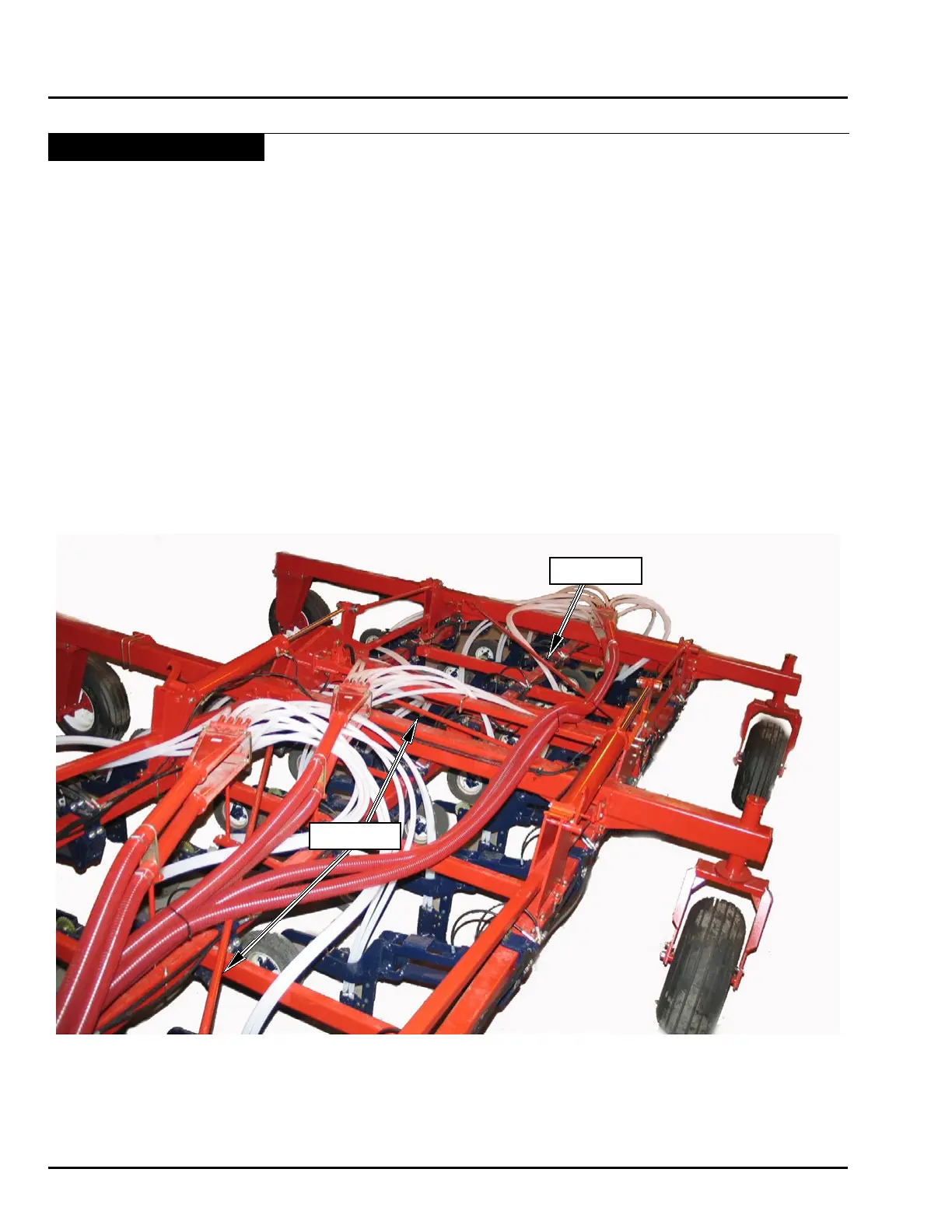

Wing Section Tie Rods
The tie rods are an integral part of the frame structure.
The wing tie rods must be torque to 175 ft lbs. (237 Nm).
Check periodically as indicated below:
1. On delivery before eld operation.
2. After rst 1 hour of use.
3. After rst 50 hours of use.
4. Check seasonally to ensure the tie rods on the wings
are tight.
Note: Damage to frame components could result if
tie rod tension is not maintained.
