Opener Maintenance - Continued

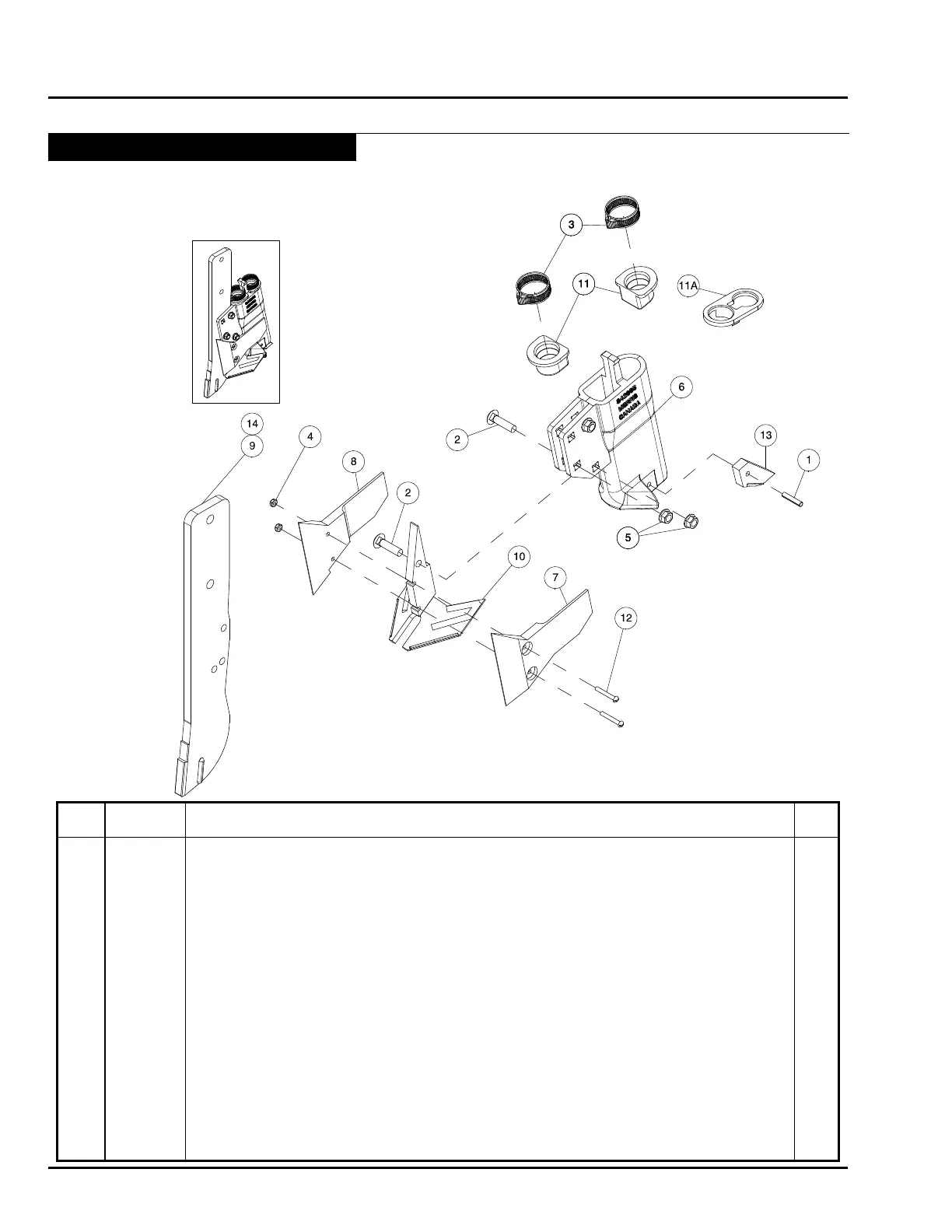

Opener Assembly - Continued
Double Shoot Boot Shown
Item Part No. Description Qty
1 D-5243 Roll Pin .............................................................................................................................. 1
2 D-5261 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 3
3 N11470 Hose Clamp ...................................................................................................................... 2
4 N37787 Nylon Insert Locknut - #10-24 ........................................................................................... 2
5 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 3
6 S42965 Cast Double Shoot Boot ................................................................................................... 1
7 S45312 Mud Guard Option Left ...................................................................................................... 1
8 S45313 Mud Guard Option Right ................................................................................................... 1
9 S45464 Wear Shank W/Carbide ..................................................................................................... 1
10 S45470 Paired Row Shovel ............................................................................................................ 1
11 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
11A S50245 Secondary Hose Grommet - Option - 1.125 ID Hose
12 S47128 Machine Screw - #10-24 x 1 3/8........................................................................................ 2
13 S47980 Carbide Wear Tail ............................................................................................................... 1
14 S49539 Paired Row Shovel Kit (Includes Items 1, 2, 5, 6, 9, 10, and 13) ....................................... 1
S46181 Kit - Mud Guards (Includes Items 4, 7, 8, and 12)
