6-14 August 2014 C2 Contour Air Drill

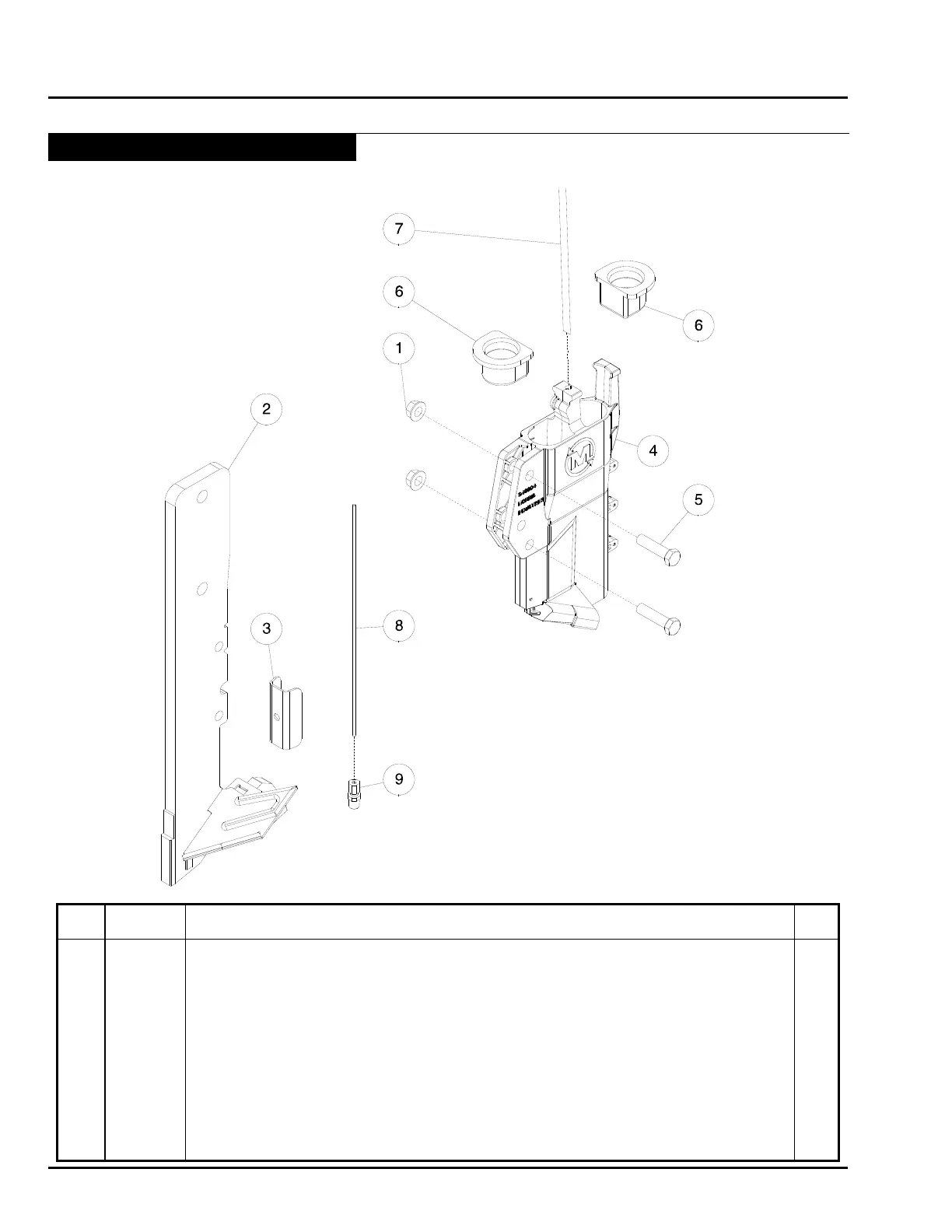

Item Part No. Description Qty
1 S27987 Lock Nut - 3/8 Flange W/Center Lock .............................................................................. 2
2 S55460 Sideband Shank - Left....................................................................................................... 1
3 S56459 Wear Guard ....................................................................................................................... 1
4 S56482 IP (Injected Polymer) Left Sideband Seed Boot ................................................................ 1
5 W-477 Hex Bolt - 3/8 x 1 1/2 Lg.................................................................................................... 2
6 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
7 Liquid Tube - 1/4 OD - See Liquid Kit Supplier for Tube ..................................................... 1
8 Injector Tube - 1/8 OD - See NH3 Kit Supplier for Tube ..................................................... 1
9 S48814 Compression Fitting - 1/8 x 1/8 ......................................................................................... 1
S56551 IP Left Sideband Boot Kit (Contains Items 1, 2, 3, 4 & 5) ................................................. 1
Mount the side band openers with the deî››ector and
seed tube facing the center of the Contour Air Drill.
Opener Maintenance - Continued
Opener Assembly - Continued
IP Left Side Band Kit
