Maintenance
6-16 August 2014 C2 Contour Air Drill
Opener Maintenance - Continued
Opener Assembly - Continued

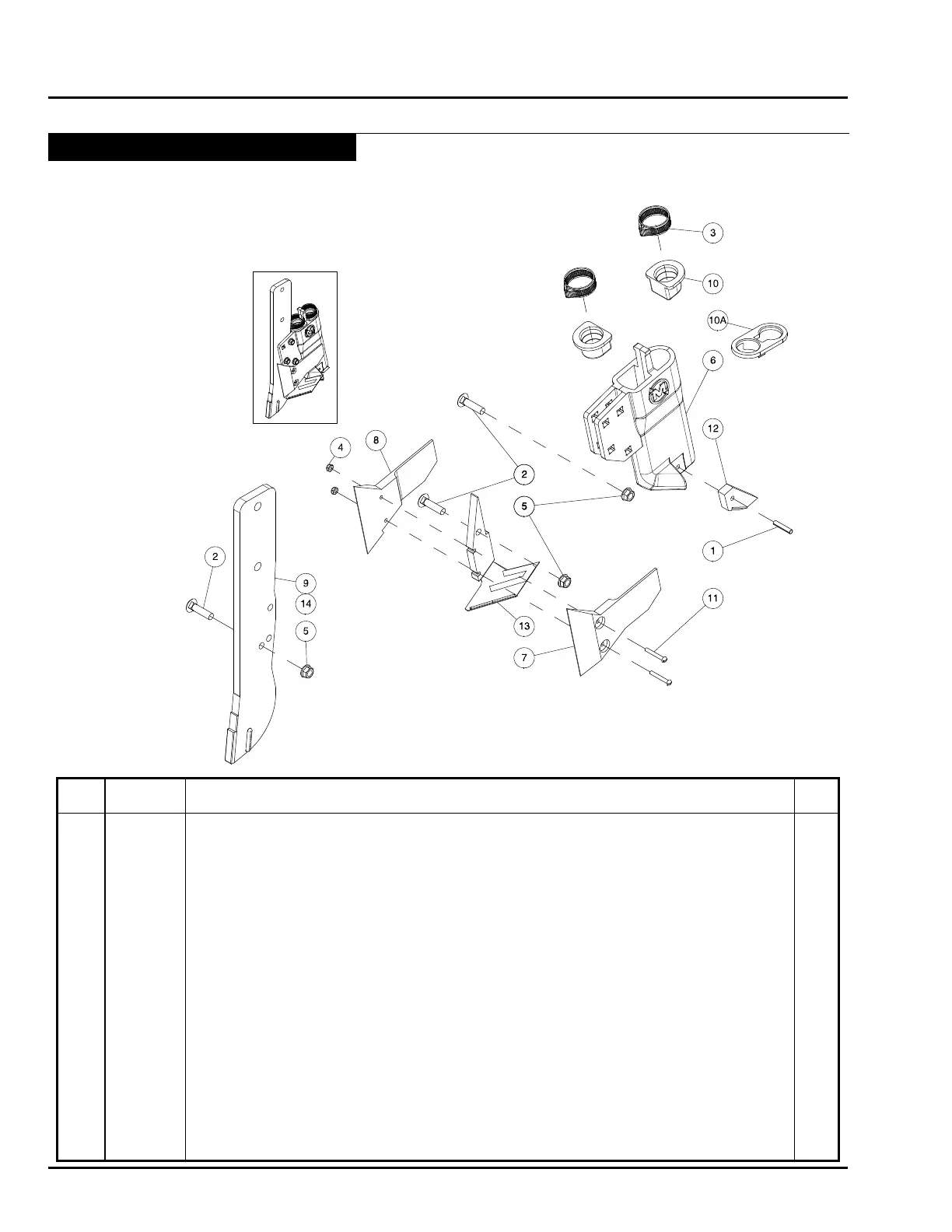

Side Band Boot - Left Shown
Mount the side band openers with the deî››ector and
seed tube facing the center of the Contour Air Drill.
Item Part No. Description Qty
1 D-5243 Roll Pin .............................................................................................................................. 1
2 D-5261 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 3
3 N11470 Hose Clamp ...................................................................................................................... 2
4 N37787 Nylon Insert Locknut - #10-24 ........................................................................................... 2
5 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 3
6 S44977 Cast Double Shoot Boot - Side Band - Left ....................................................................... 1
6A S51469 Cast Double Shoot Boot - Side Band - Left - Carbide
7 S45312 Mud Guard Option Left ...................................................................................................... 1
8 S45313 Mud Guard Option Right ................................................................................................... 1
9 S45464 Wear Shank W/Carbide ..................................................................................................... 1
10 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
10A S50245 Secondary Hose Grommet - Option - 1.125 ID Hose
11 S47128 Machine Screw - #10-24 x 1-3/8 ........................................................................................ 2
12 S47980 Carbide Wear Tail ............................................................................................................... 1
13 S49536 Side Band Shovel.............................................................................................................. 1
14 S49541 Side Band Left Kit (Includes Items 1, 2, 5, 6, 9, 12, and 13) ............................................. 1
S55275 Side Band Left Kit (Includes Items 1, 2, 5, 6A, 9, 12, and 13)
S46181 Kit - Mud Guards (Includes Items 4, 7, 8, and 11)
