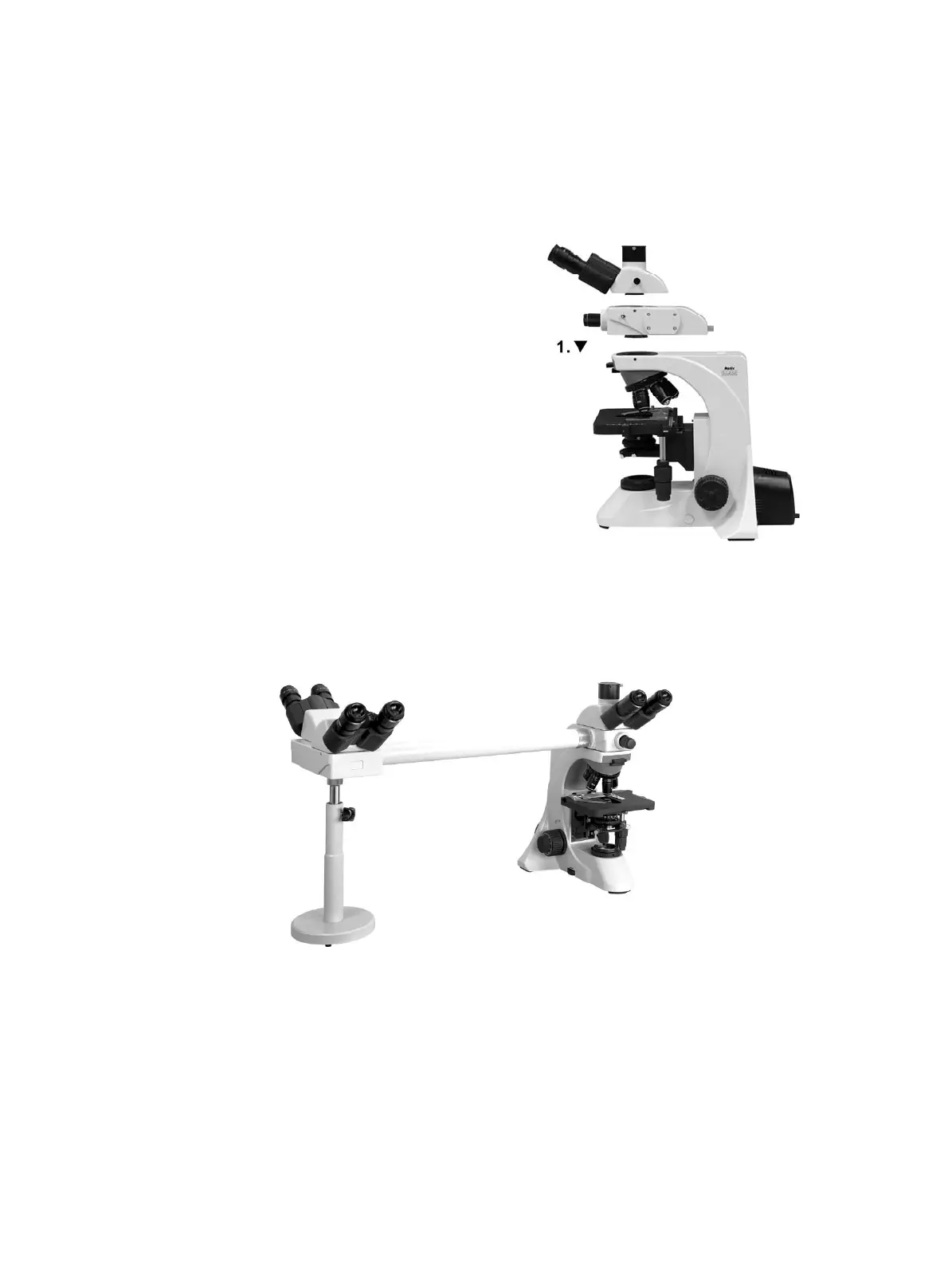

Step 1. Main Observation Head
Please refer to Assembly instruction under MVH-2
Step 2. Sub-Observation Head
Please refer to Assembly instruction under MVH-2
Step 3. Support Stand
Please refer to Assembly instruction under MVH-2
Step 4. Binocular Tubes Sub-Observation Head
Mount the Binocular tubes on the sub-observation head
and fasten in position using the clamp screw.
Step 5. Trinocular / Binocular Tube Main Observation Head
Mount the Trinocular / Binocular eyepiece tube on the Main observation head and fasten
it in position using clamp screw.
Step 6. Input Plug for the Arrow Illuminator
Please refer to Assembly instruction under MVH-2
Step 7. AC Adapter
Please refer to Assembly instruction under MVH-2
