Motic BA310 - Assembly for MVH-2 Two observers (Face ► ◄ Face)

14
Step 6. Input Plug for the Arrow Illuminator
Please refer to Assembly instruction under MVH-2
Step 7. AC Adapter
Please refer to Assembly instruction under MVH-2

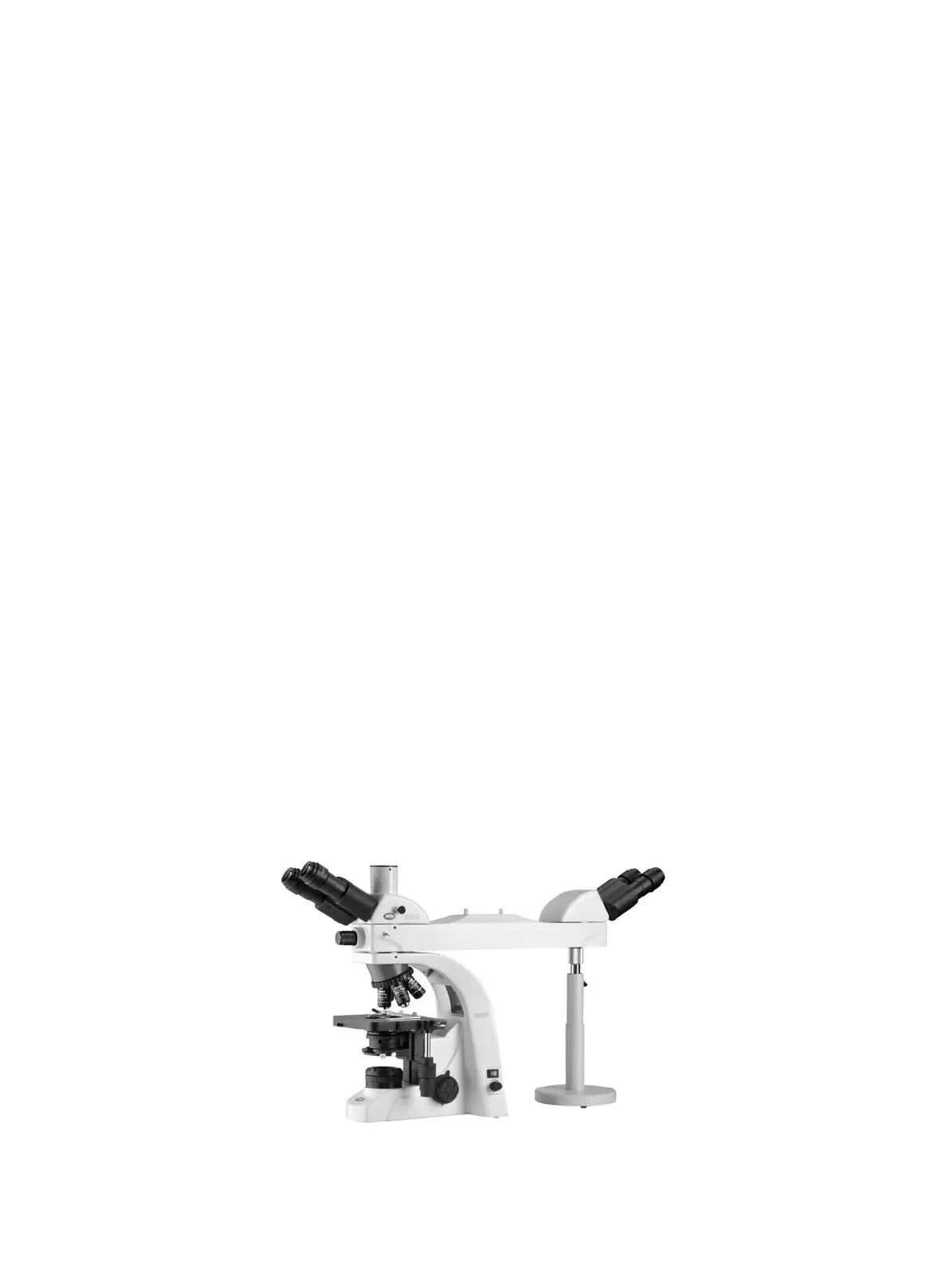

Assembly for MVH–2 Two observers (FaceFace)
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process:
Step 1. Optical Bridge Unit
Step 2. Support Stand
Step 3. Binocular Tube Sub-Observation Head
Step 4. Trinocular / Binocular Tube Main Observation Head
Step 5. Input Plug for the Arrow Illuminator
Step 6. AC Adapter
Step 1.Optical Bridge Unit
Slot in the optical bridge uniit (with sub-observation attached) into the microscope body
with the arrow control knob facing the main user. Fasten with the clamp screw located on
the right hand side of the microscope arm.
