II. Assembly
Assembly for MVH–2 Two observers (SideSide)

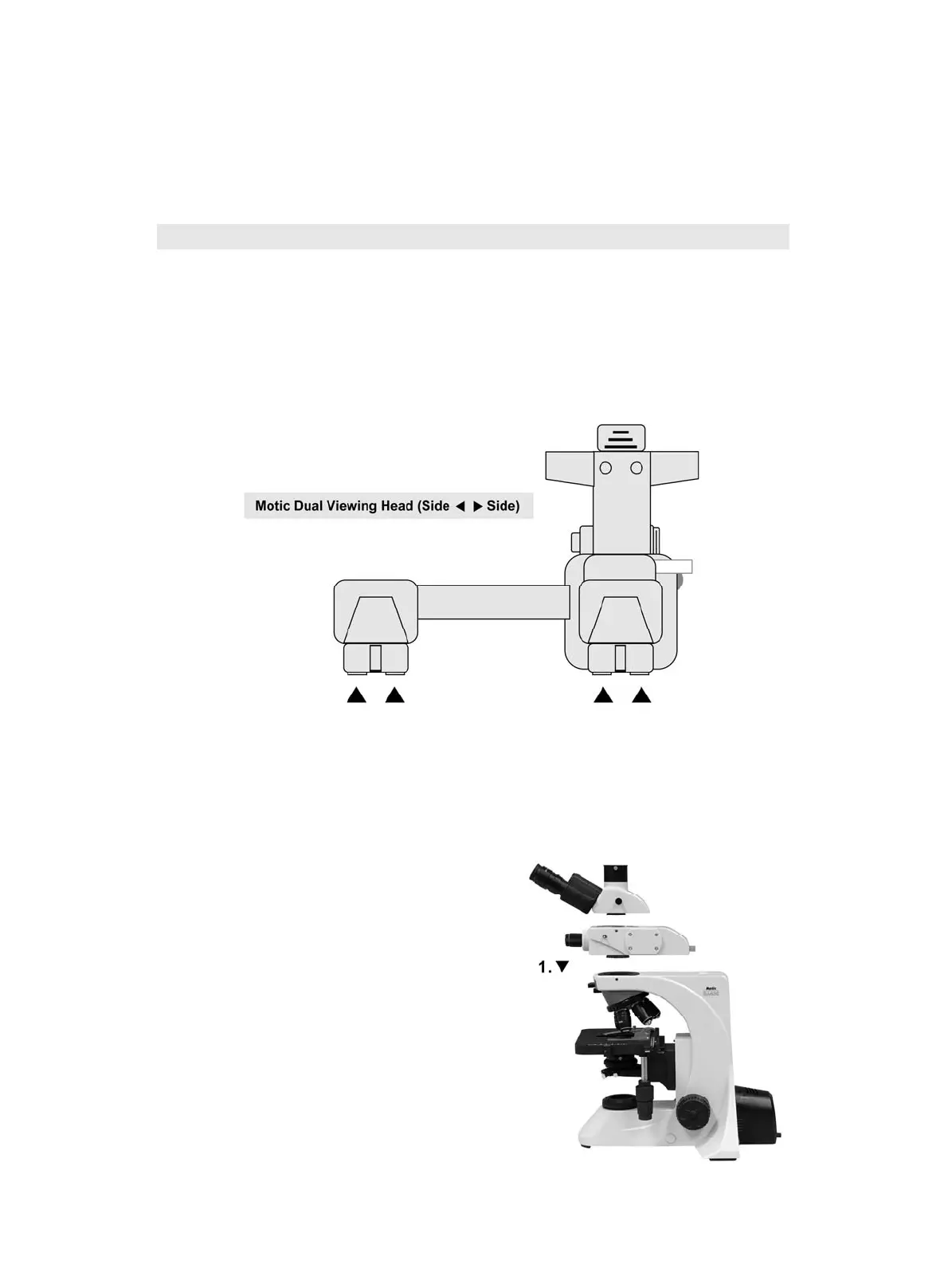

The following drawing illustrates the configuration of the viewing attachment.
▲ ▲ Convey the image orientation of each field of view.
This viewing head configuration does not allow the attachment of additional
intermediate parts.
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process:
Step 1. Main Observation Head
Step 2. Sub-Observation Head
Step 3. Support Stand
Step 4. Eyepiece Tube Sub-Observation Head
Step 5. Eyepiece Tube Main Observation Head
Step 6. Input Plug for the Arrow Illuminator
Step 7. AC Adapter
