Assembly for MVH–5 Five observers (SideSide)

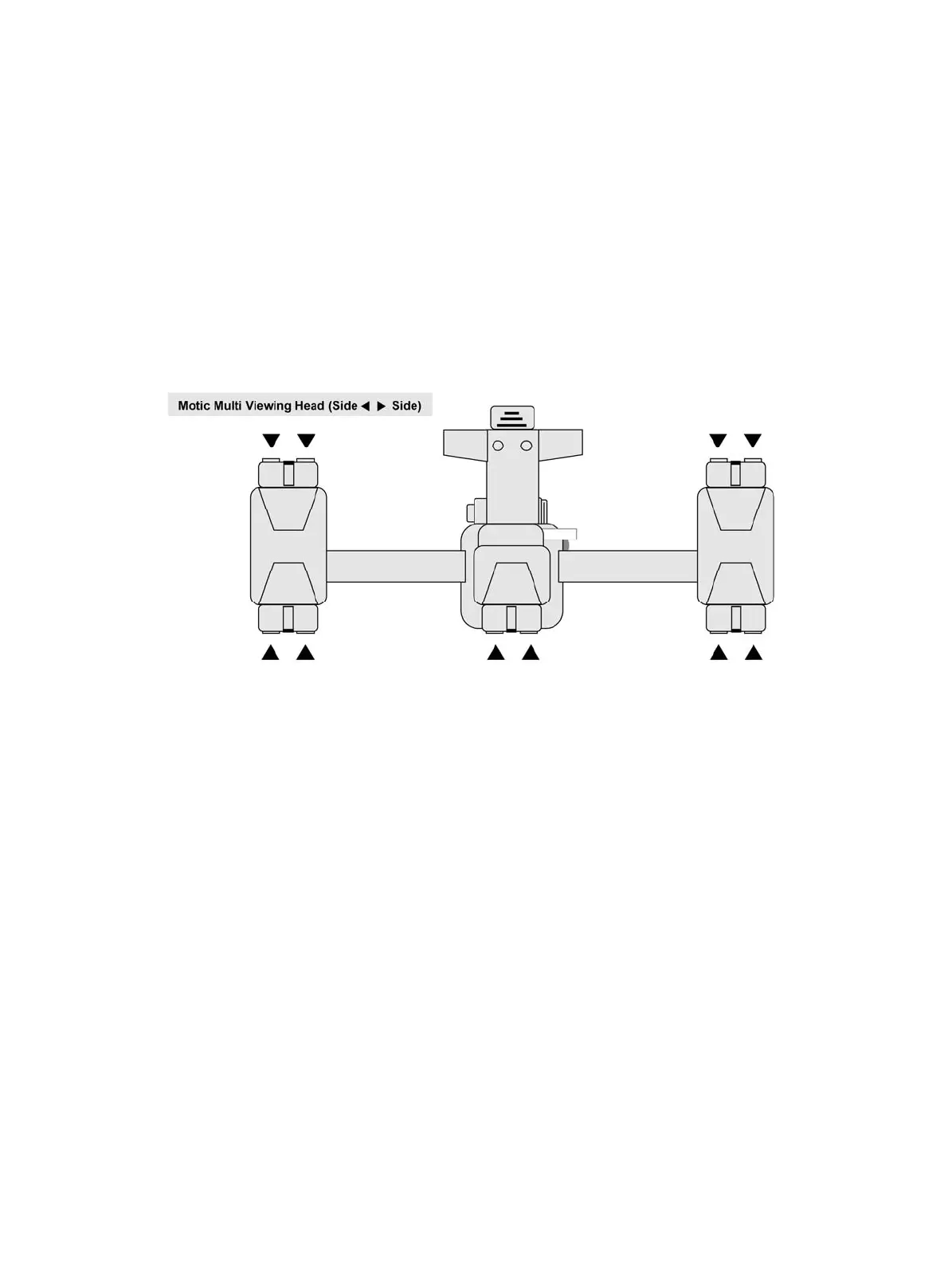

The following drawing illustrates the configuration of the viewing attachment.
▲ ▲ Convey the image orientation of each field of view.
This viewing head configuration does not allow the attachment of additional intermediate
parts.
Tools Needed: Allen Hex Wrench provided with the Viewing Head.
Steps in Assembly Process: MVH–5 Five observers (SideSide)
Step 1. Main Observation Head
Step 2. Sub-Observation Head
Step 3. Support Stand
Step 4. Binocular Tubes Sub-Observation Head
Step 5. Trinocular / Binocular Tube Main Observation Head
Step 6. Input Plug for the Arrow Illuminator
Step 7. AC Adapter
