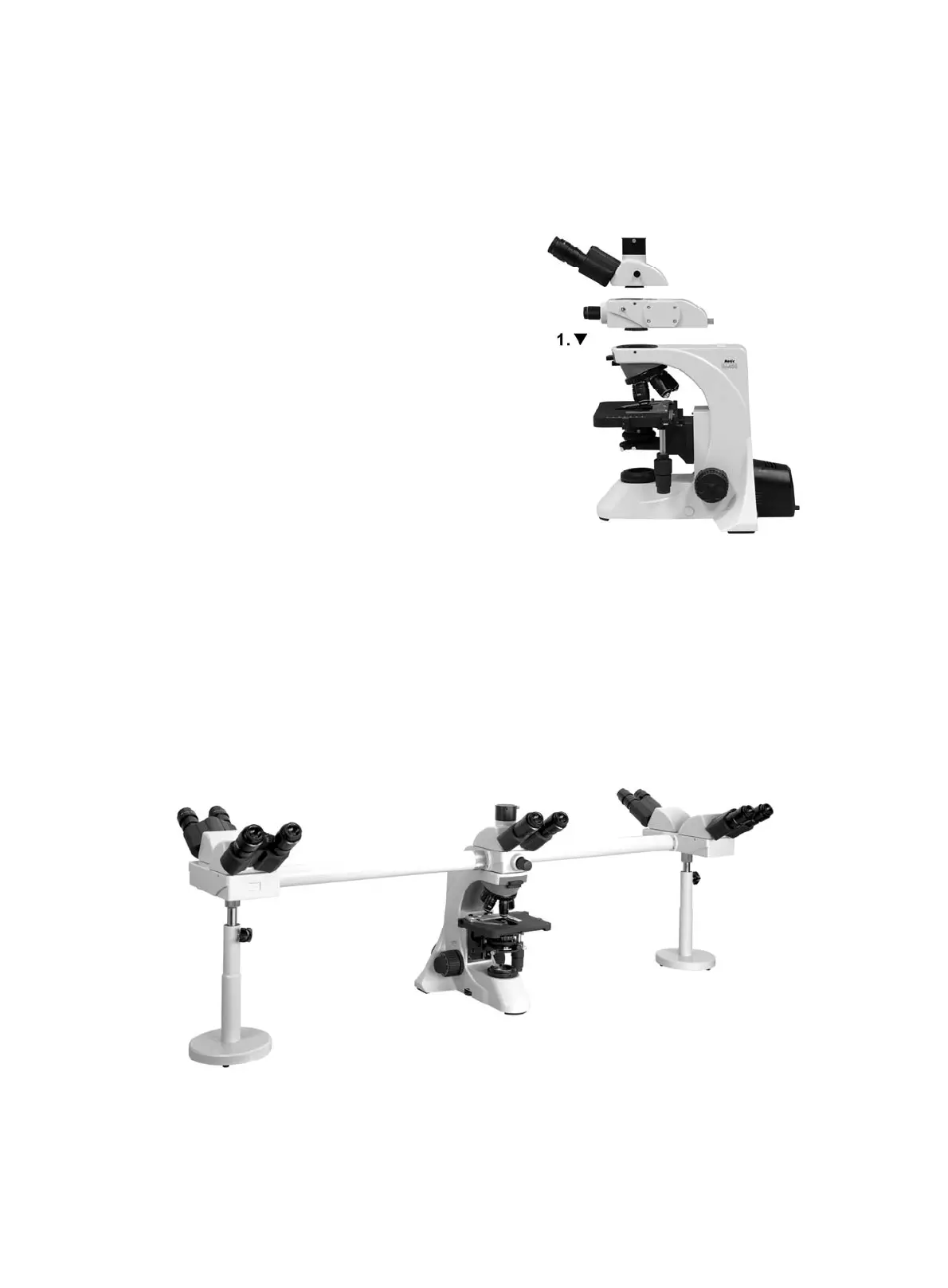

Step 1. Main Observation Head
Please refer to Assembly instruction under
MVH-2
Step 2. Sub-Observation Head
Slot in the relay lens unit (with sub-observation
head attached) into the relay lens opening on
either side of the main head. Secure with the
relay lens unit clamping ring.
Step 3. Support Stand
Please refer to Assembly instruction under MVH-2
Step 4. Binocular Tubes Sub-Observation Head
Mount the Binocular tubes on the sub-observation heads and fasten in position using the
clamp screw.
Step 5. Trinocular / Binocular Tube Main Observation Head
Mount the Trinocular / Binocular eyepiece tube on the Main observation head and fasten
it in position using clamp screw.
