MOTO GUZZI GRISO User Manual

GENERAL TECHNICAL INFORMATION
2 - 25
Griso V1100

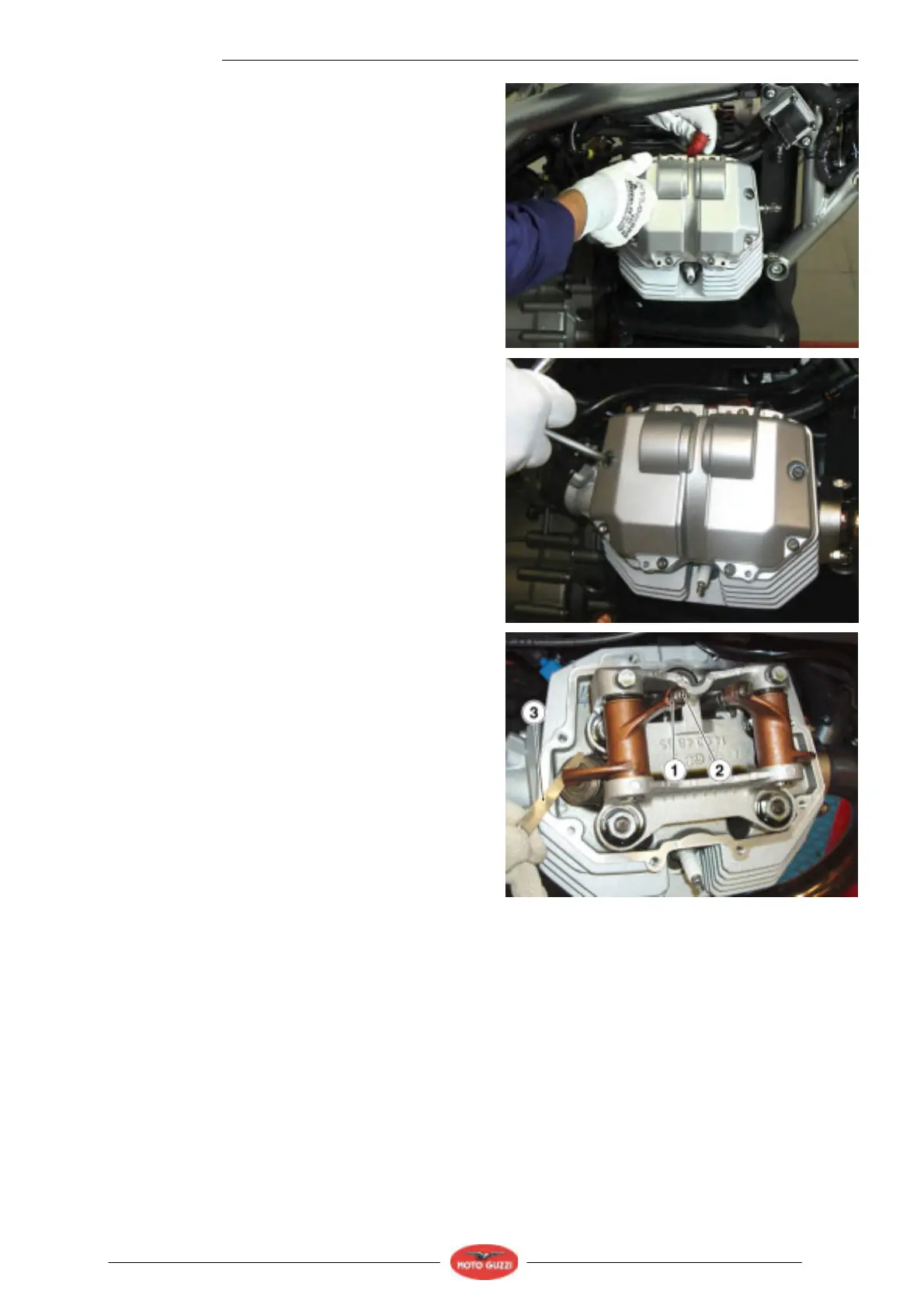

• Loosen and remove the eight screws.
• Remove the head cover.
• Loosen the nut (1);
• Turn the adjuster screw (2) with a screwdriver until the
following clearances are set:
- intake valve: 0.10 mm (0.0039 in)
- exhaust valve: 0.15 mm (0.0059 in).
• Measure clearance using a suitable feeler gauge (3).
NOTE If clearance is greater than specified, the tappets will
be noisy; clearance smaller than specified will prevent the
valves from closing fully leading to:
- pressure leak;
- engine overheating;
- burnished valves, etc.
www.guzzitek.org + www.guzzitech.com - Revente Interdite - Revendita Vietata - Resaling Forbiden - Wiederverkauf Verboten

MOTO GUZZI GRISO Specifications

General

Cooling System	Air-cooled
Final Drive	Shaft drive
Seat Height	800 mm
Engine Type	90° V-twin
Fuel System	Electronic fuel injection
Front Suspension	43mm upside-down fork
Front Brakes	Dual 320mm discs, 4-piston calipers
Frame	Tubular steel
