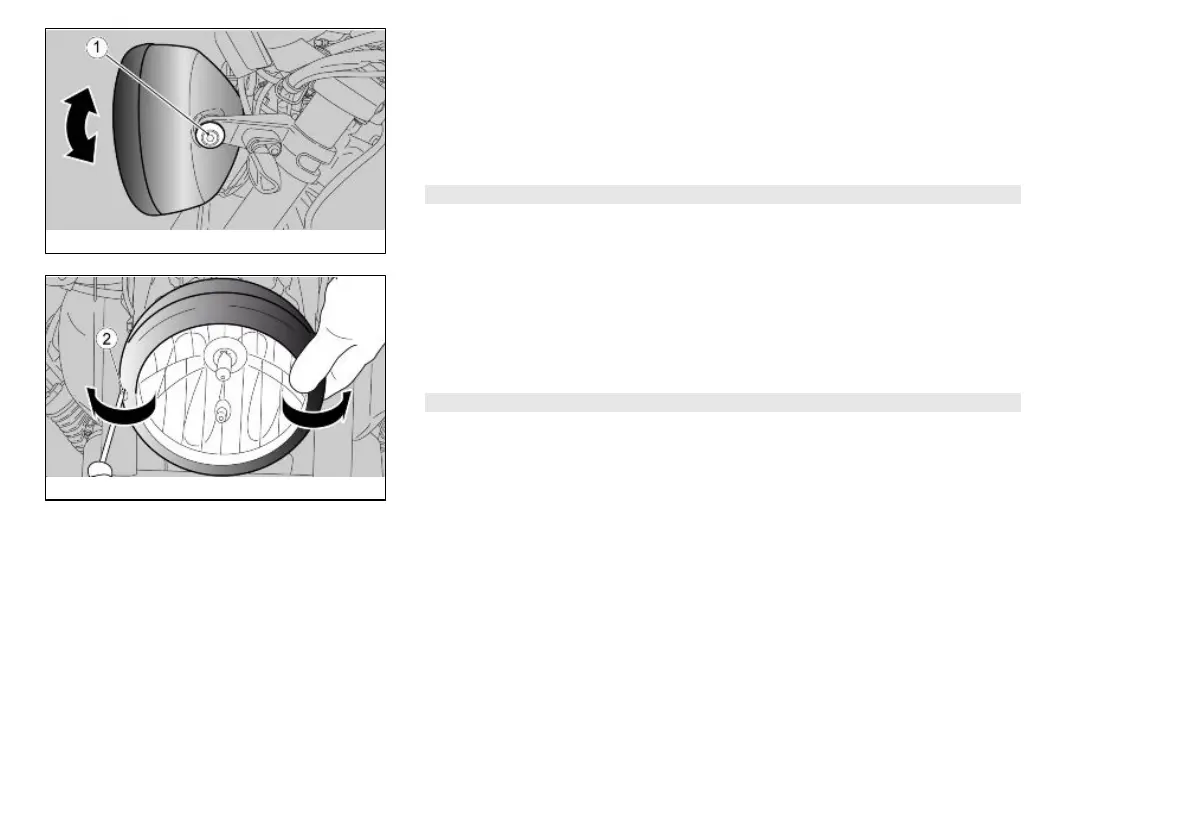

To carry out vertical adjustment of the light beam:
•
Stand the motorcycle in a vertical position.
•
Slightly loosen the headlight fixing screws (1), and move the light beam man-
ually to the desired position.
•
Once the adjustment is finished tighten the screws (1).
After adjusting:
NOTE
CHECK THAT THE VERTICAL ALIGNMENT OF THE BEAM IS CORRECT.
04_22
In order to carry out horizontal adjustment of the light beam:
•
Stand the motorcycle in a vertical position.
•
Actuating on the screw (2) adjust the direction of the light beam.
After adjusting:
NOTE
CHECK THAT THE LIGHT BEAM HORIZONTAL DIRECTION IS CORRECT.
