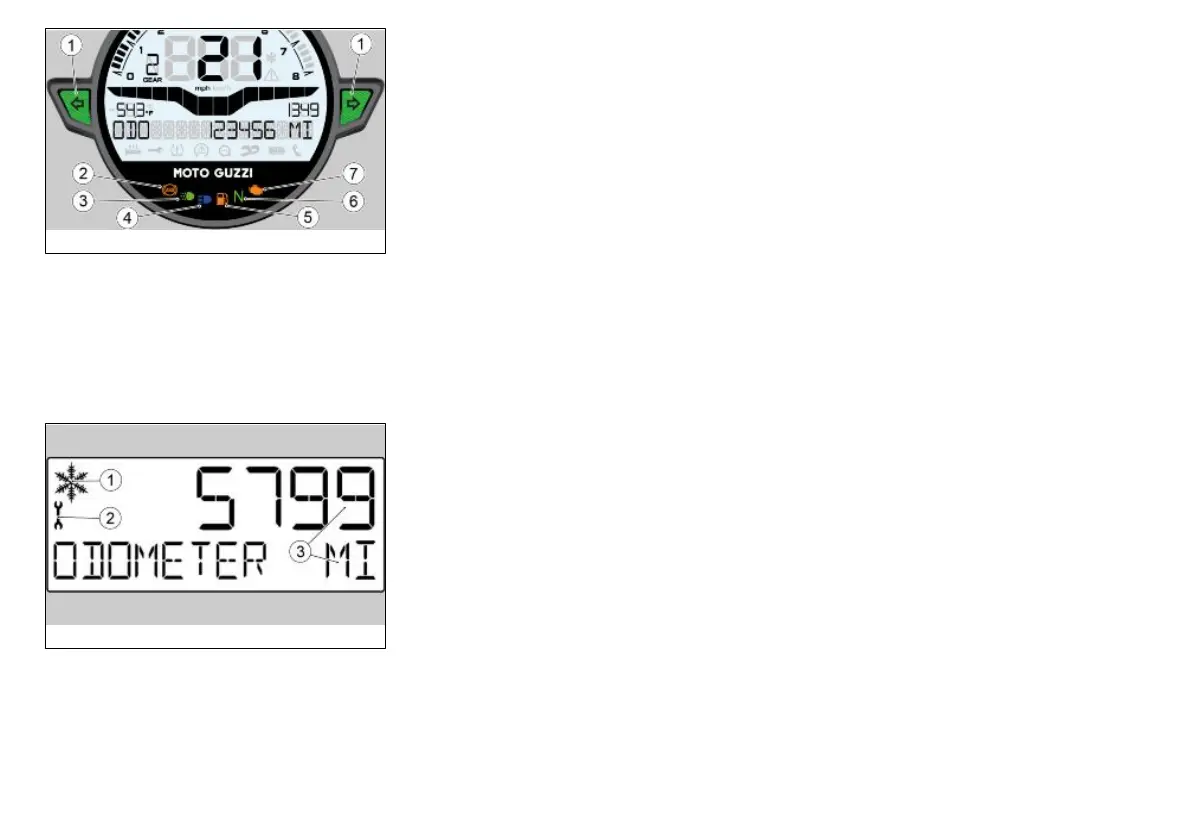

Key:
1. Turn signal indicator lamp (green)
2. ABS warning light (amber)
3. DRL indicator light (green)
4. High beam indicator lamp (blue)
5. Amber low fuel warning light (yellow)
6. Neutral gear warning light (green)
7. MI engine alarm warning lamp (amber)
Digital LCD Display (02_09, 02_10, 02_11, 02_12, 02_13, 02_14,
02_15, 02_16)
ANALOGUE INSTRUMENTS
02_09
•
By turning the ignition key to "ON", the system works as follows:
- all indicator lamps illuminate simultaneously for three seconds (lamp check);
- it resets the position of all the needles, which afterwards go to the bottom of the scale
and return to zero;
- the backlight is temporarily set to maximum brightness;
- all indicator lamps are extinguishes (except active indicator lamps), the brightness
setting set previously by the user is restored and the normal display mode is restored.
The standard settings that can be viewed on the display are:
1) Ice warning alarm (displayed at temperatures equal to or below 37.4°F / 3°C
2) Maintenance icon
3) Trip computer log or alarms stored
4) Gear selected (calculated) (*)
45
