IMPORTANT: A minimum of four mounting bolts are required to mount the
trolling motor to the boat. Spread the mounting bolts as far apart as practical
for the most secure mounting.

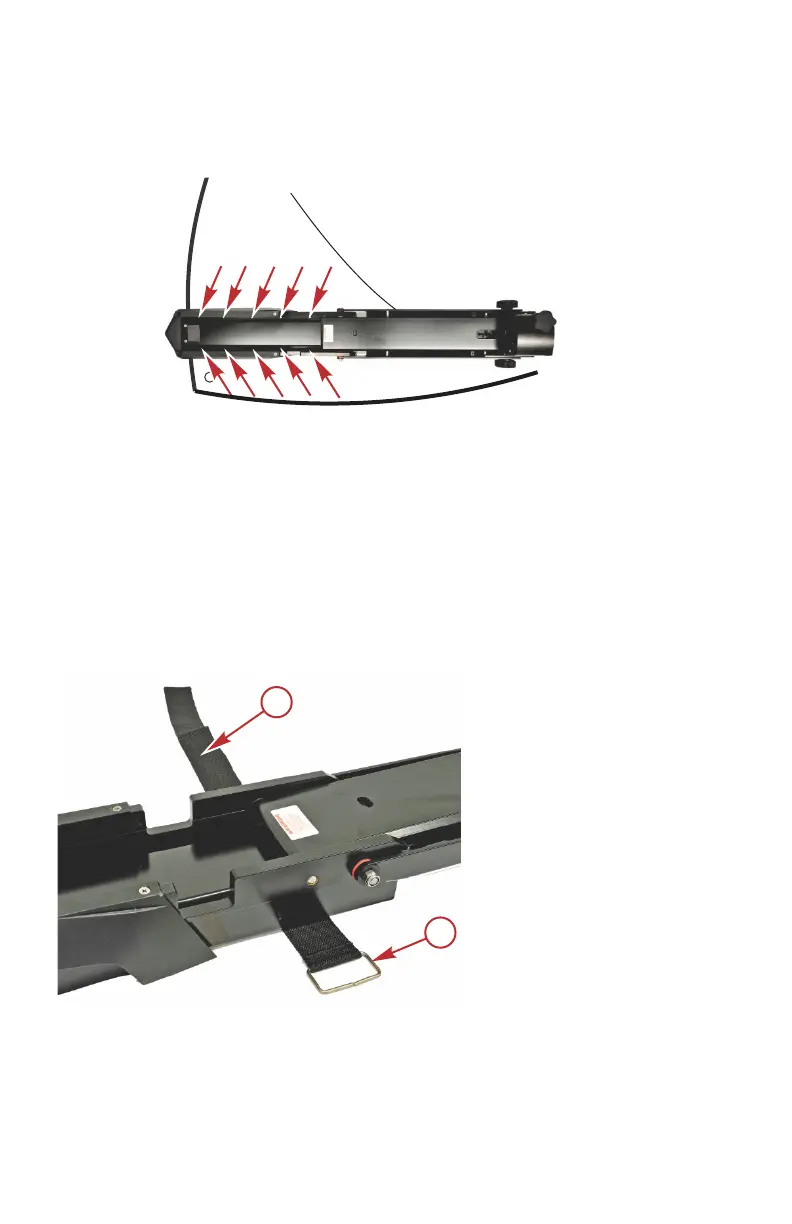

Mount bracket mounting holes (5 per side)
3. Drill the mounting holes with a 7 mm (1/4 in.) diameter drill bit. Remove
any debris.
IMPORTANT: Use a countersink drill bit or a larger drill bit to countersink the
holes on fiberglass boats to prevent cracking.
4. Insert the rubber isolators between the base of the mount and the boat
mounting surface. Place the tie‑down strap under the mount bracket,
hook‑and‑loop side down, with the buckle facing toward the outside of the
boat.
a - Velcro tie‑down strap
b - Buckle
TROLLING MOTOR INSTALLATION AND OPERATION
16 eng
