MotorGuide X5 Series User Manual

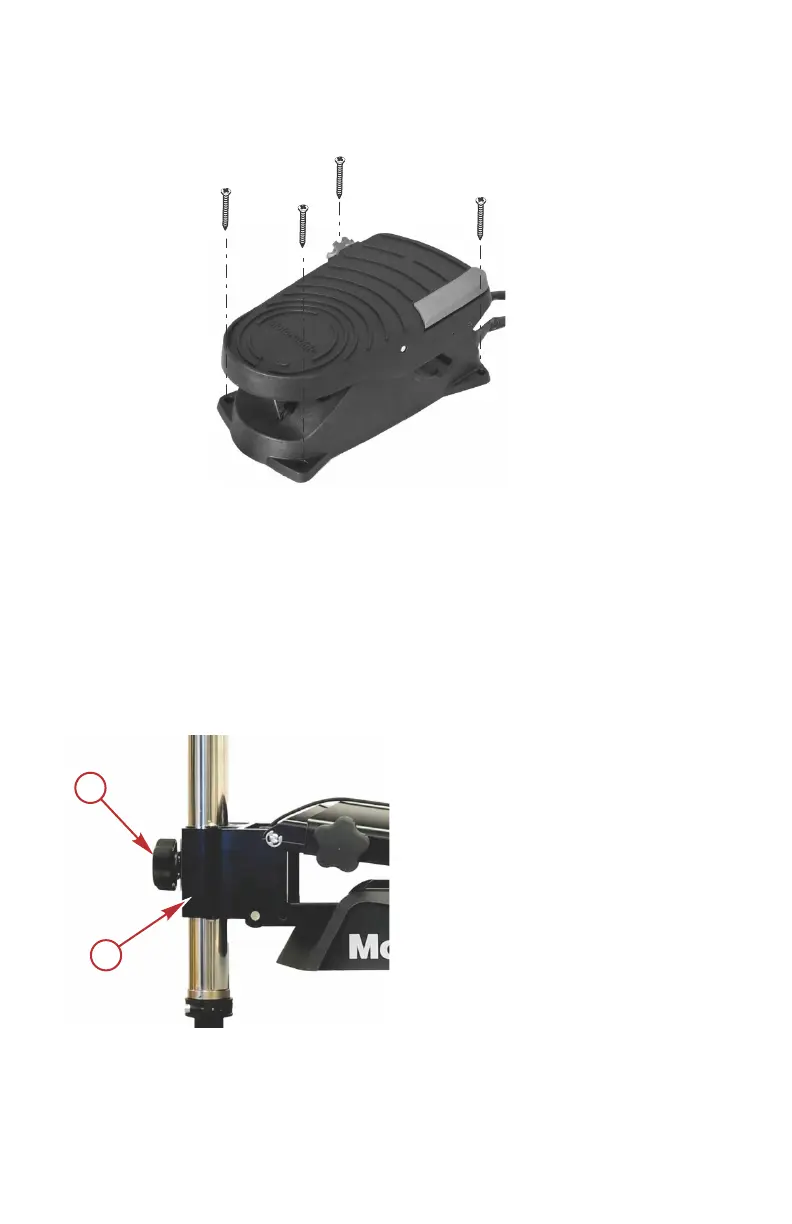

4. Use four #8 x 2 in. stainless steel screws to secure the foot pedal to the
boat deck.
54589
Installing the Motor into the Bow Mount
1. Turn the bracket door knob counterclockwise to loosen and open the
bracket door.
2. Place the motor column into the bracket and close the door.
3. Turn the bracket door knob clockwise to tighten the motor column in the
bracket.
4.
Hand‑operated models: Adjust the depth adjustment collar and steering
tension collar to the desired settings.
Cable steer models
a - Bracket door knob
b - Bracket door
a
b
58600
TROLLING MOTOR INSTALLATION AND OPERATION
18 eng

MotorGuide X5 Series Specifications

General

Type	Electric Trolling Motor
Battery Indicator	Yes
Weight	Varies by model
Control	Hand
Speed Control	Variable
Voltage	12V, 24V
Thrust	55 lbs, 70 lbs, 80 lbs, 105 lbs
