MotorGuide X5 Series User Manual

4. Adjust the breakaway knobs on each side of the mount so the motor will
break away if it encounters underwater obstructions.

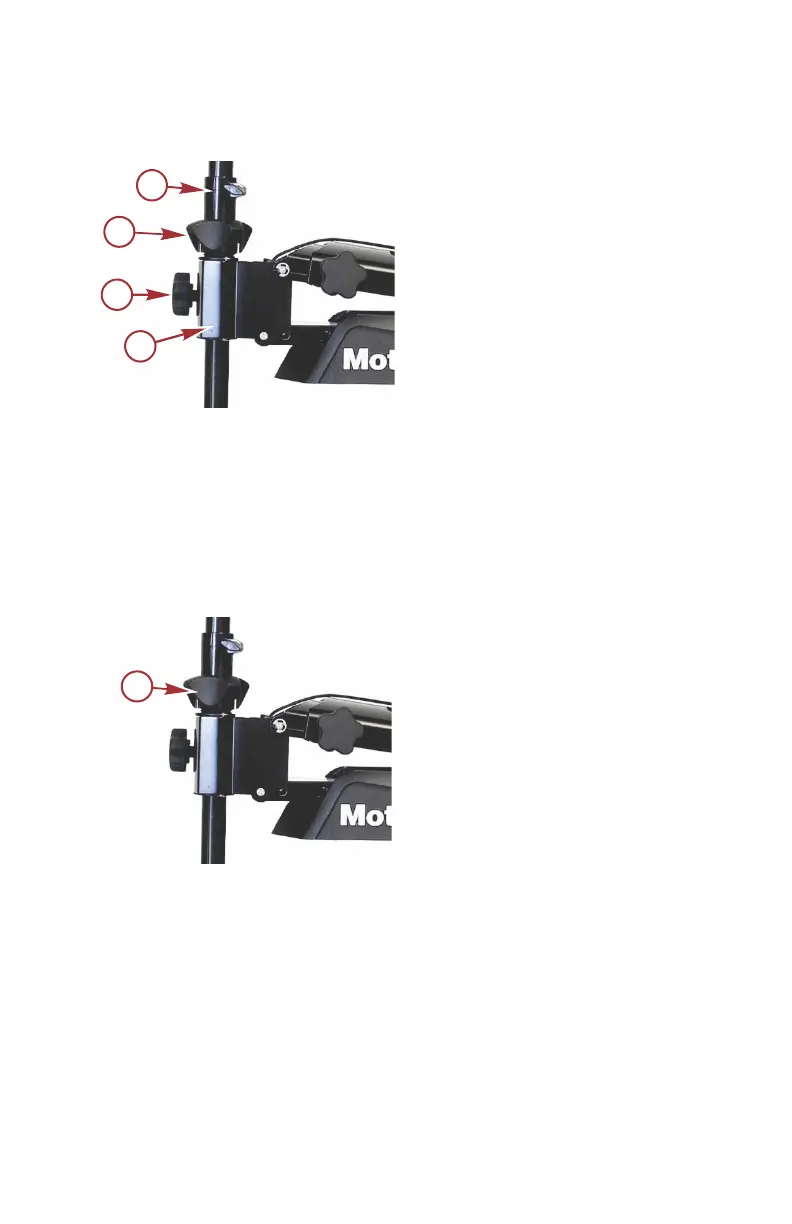

a - Depth adjustment collar
b - Steering tension collar
c - Bracket door knob
d - Bracket door
Adjusting the Steering Tension—Hand‑Operated Models Only
Adjust the steering tension collar to increase or decrease the effort to turn the
motor freely.
1. To increase the steering tension, turn the steering tension collar
clockwise.
2. To reduce the steering tension, turn the steering tension collar
counterclockwise.
a - Steering tension collar
a
b
c
d
62254
a
62255
TROLLING MOTOR INSTALLATION AND OPERATION
eng 25

MotorGuide X5 Series Specifications

General

Type	Electric Trolling Motor
Battery Indicator	Yes
Weight	Varies by model
Control	Hand
Speed Control	Variable
Voltage	12V, 24V
Thrust	55 lbs, 70 lbs, 80 lbs, 105 lbs
