Speed Control—Cable Steer Models
DIGITAL VARIABLE SPEED MOTORS
Foot operated motors are available with digital variable speed control. Control
the speed of your motor by rolling the speed control knob with your hand or foot
until you reach the desired speed.

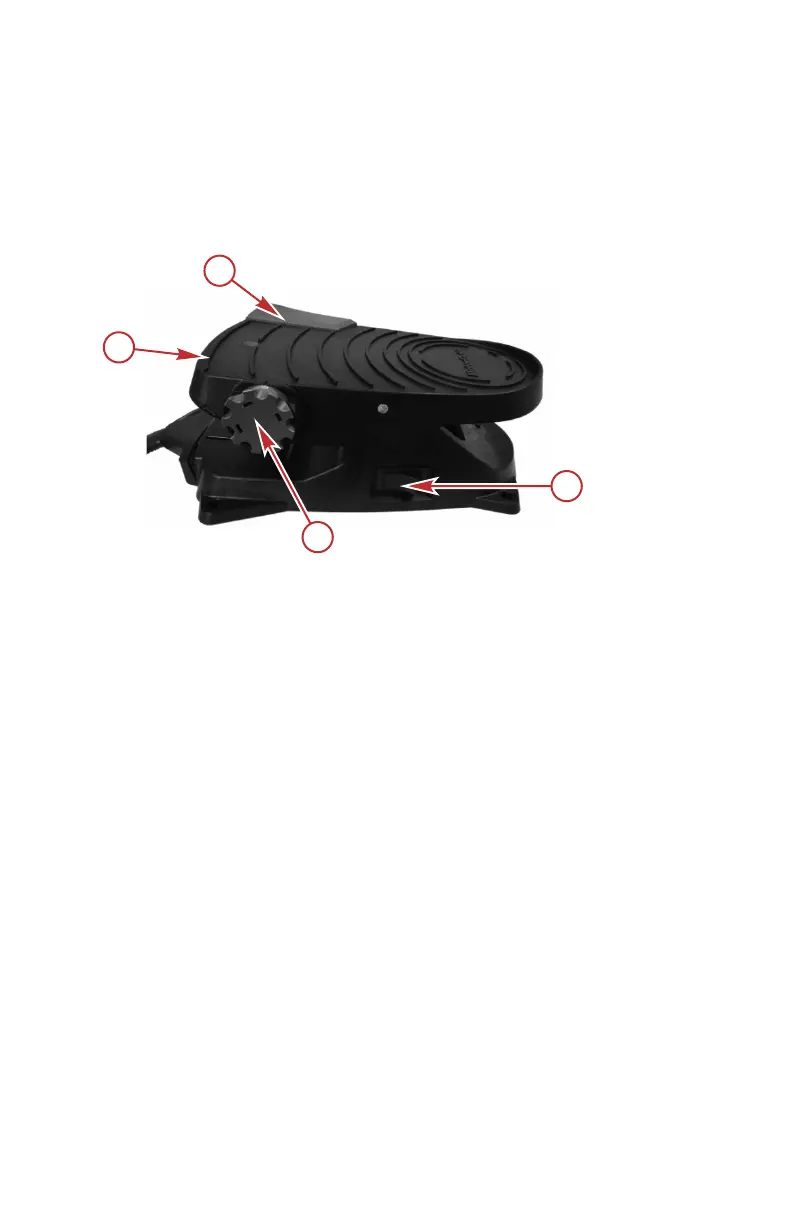

a - Foot pedal
b - Momentary switch
c - On/off/pedal switch
d - Speed control knob
•
Speed control knob: Digital variable speed motor control knobs are
numbered 0–10, and allow you to select any speed from 0–10, and stop
the motor.
•
Momentary switch: The momentary switch is located on the top right
corner of the foot pedal. The momentary switch works in conjunction with
the on/off/pedal switch when it is in the pedal position. When the
momentary switch is pressed, the motor will run at the selected speed as
long as the switch is pressed.
•
On/off/pedal switch: This three‑position switch provides three options for
operating the motor: on, pedal, or off.
a.
On: Allows the motor to run continuously at the speed selected by the
speed control knob, without the use of the momentary switch.
b.
Pedal: Allows the motor to activate with the momentary switch at the
speed selected by the speed control knob.
c.
Off: Turns the trolling motor off.
TROLLING MOTOR INSTALLATION AND OPERATION
eng 27
