MotorGuide X5 Series User Manual

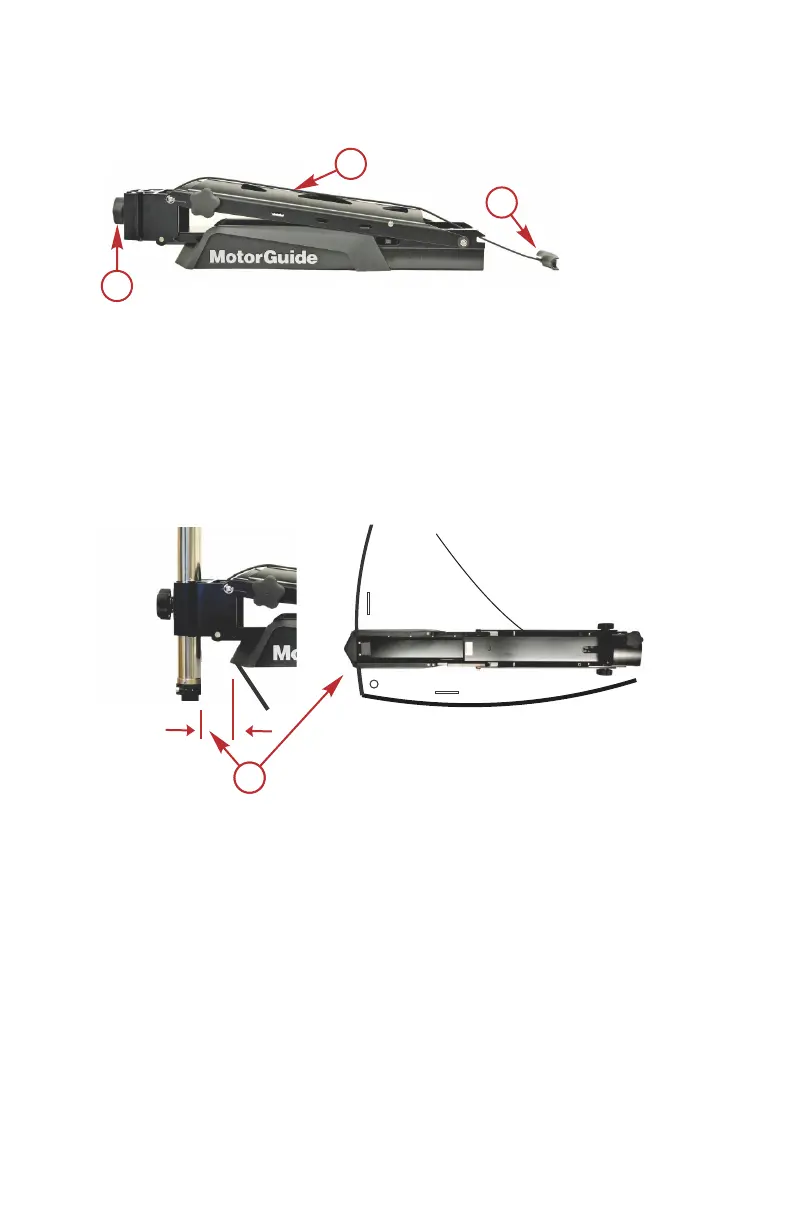

Mount Bracket Installation
a - X5 bow mount bracket
b - Latch release handle
c - Bracket door knob
1. Select an appropriate area on the deck of the boat to install the mount.
Ensure that the forward mounting screws will not penetrate the hull.
IMPORTANT: Choose an area on the boat deck that allows a 7.6 cm (3 in.)
clearance between the bow of the boat and the column of the trolling motor.
a - Clearance 7.6 cm (3.0 in.)
2. Place the bow mount base on the surface of the boat deck. Use the
mount base as a template to mark the locations of the front mounting
holes and the rear mounting holes on the mount base.
a
b
c
58592
58593
a
a
TROLLING MOTOR INSTALLATION AND OPERATION
eng 15

MotorGuide X5 Series Specifications

General

Type	Electric Trolling Motor
Battery Indicator	Yes
Weight	Varies by model
Control	Hand
Speed Control	Variable
Voltage	12V, 24V
Thrust	55 lbs, 70 lbs, 80 lbs, 105 lbs
