MotorGuide X5 Series User Manual

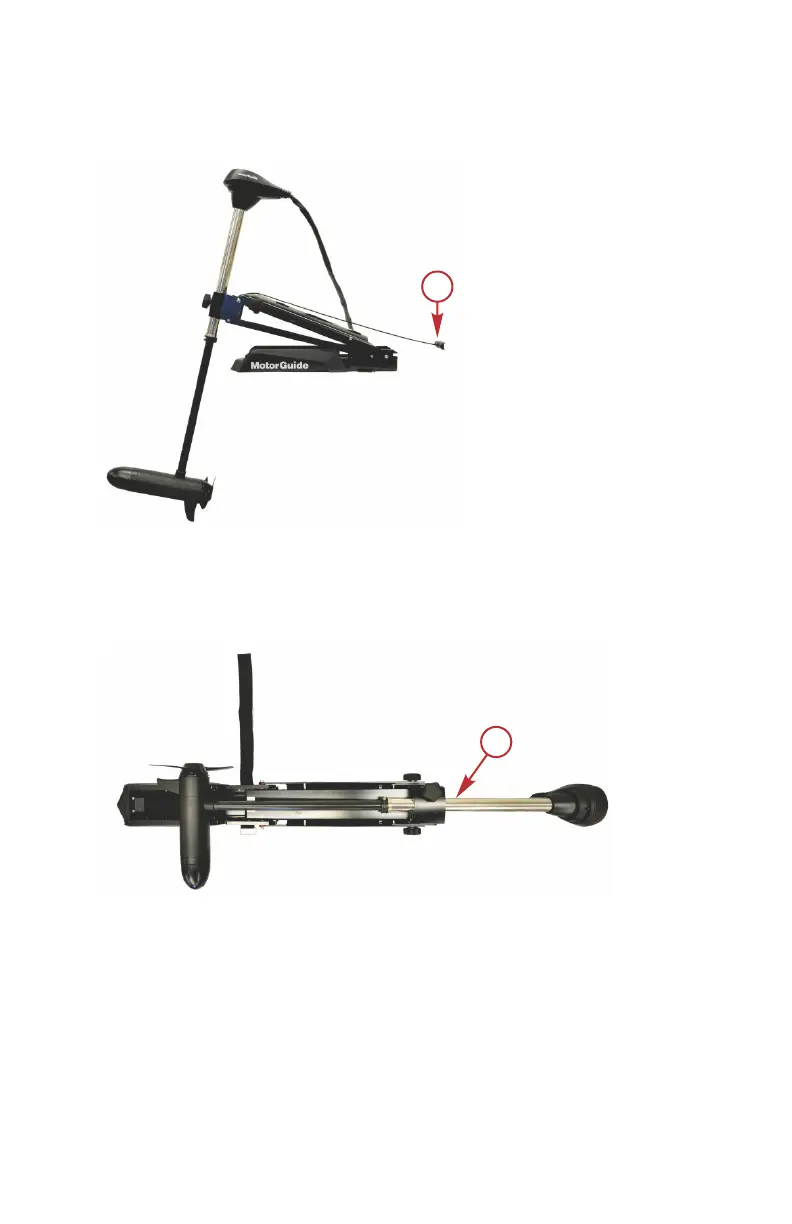

3. Continue to pull the latch release handle to raise the lower unit onto the
mount.
a - Latch release handle
IMPORTANT: Gently raise the trolling motor out of the water. Do not release
the latch release handle until the lock pin is engaged.
4. Once the motor is in the stowed position, the lock pin engages to secure
the trolling motor.
a - X5 in the stowed position
58612
a
58616
a
TROLLING MOTOR INSTALLATION AND OPERATION
eng 21

MotorGuide X5 Series Specifications

General

Type	Electric Trolling Motor
Battery Indicator	Yes
Weight	Varies by model
Control	Hand
Speed Control	Variable
Voltage	12V, 24V
Thrust	55 lbs, 70 lbs, 80 lbs, 105 lbs
