Motorola APX 2000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Disassembly 8-11

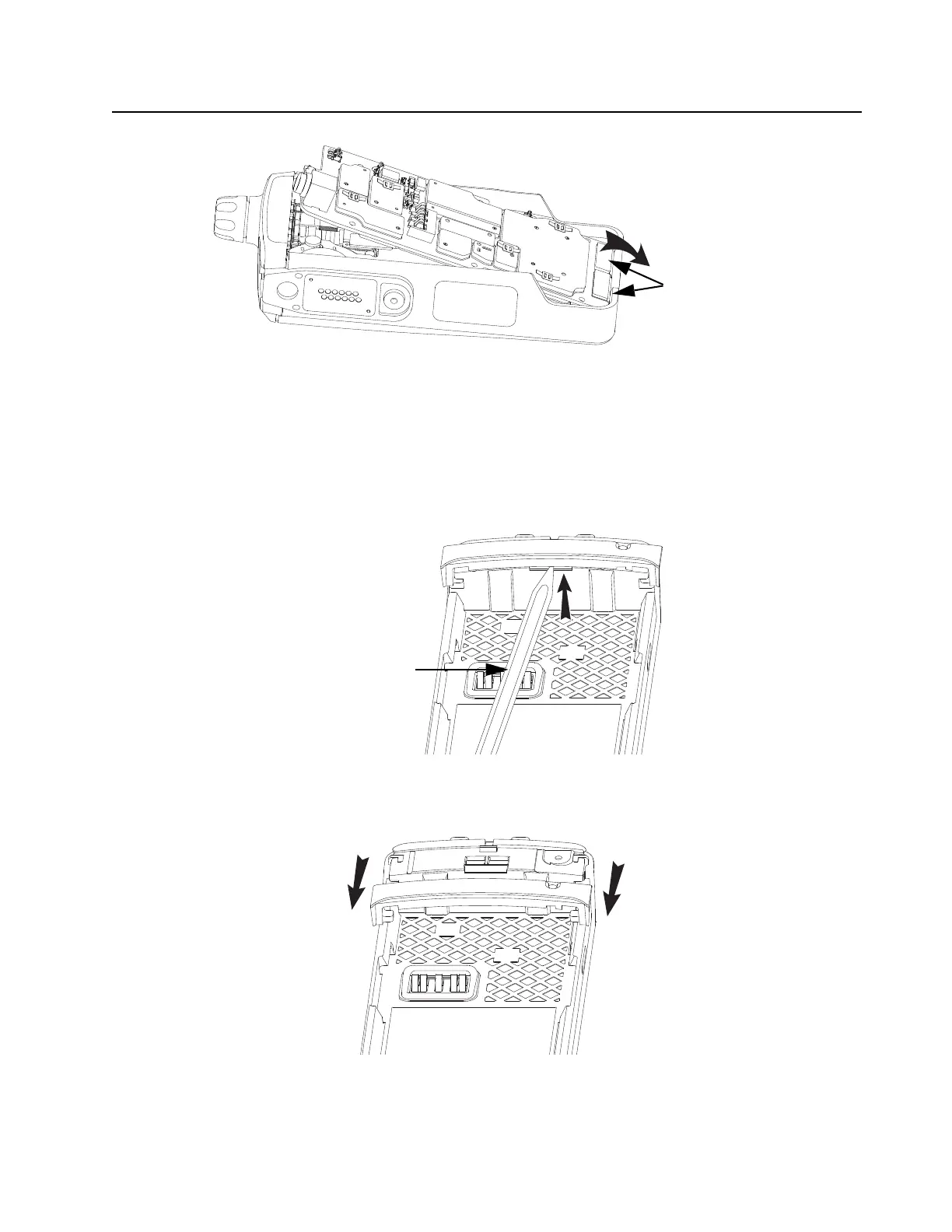

Figure 8-13. Unplug the Back Kit Flex connectors
8.4.5.4 Removal of the Shroud (47)
1. Place the black stick into the opening below the Shroud (47) to aid the disengagement of the
Shroud. With the black stick still in place, slide the Shroud downwards at both sides to
remove the Shroud from the Chassis (41).
Figure 8-14. Disengage the Shroud
Figure 8-15. Remove the Shroud
Back Kit Flex
Connectors
Black Stick

Motorola APX 2000 Specifications

General

IP Rating	IP67
Operating Temperature	-30°C to +60°C
GPS	Optional
Bluetooth	No
Frequency Range	700/800 MHz
Power Output	1-5 W (VHF), 1-3 W (700/800 MHz)
Channels	Up to 1, 000
Battery Life	Up to 10 hours (digital)
Digital Protocol	APCO P25
Frequency	VHF: 136-174 MHz, UHF: 380-470 MHz, 700/800 MHz: 764-870 MHz
Power	1-3W (700/800 MHz), 1-5W (VHF)
