Motorola APX 2000 - Figure 8-28. Assemble the Secondary Shield Assembly; Figure 8-29. Torque in the Chassis Screws

Disassembly/Reassembly Procedures: Radio Reassembly 8-21
8.6.2 Reassemble the Secondary Shield Assembly (32)
1. With the Main Board (33) assembled, place the Secondary Shield Assembly (32) onto the
Main Board.

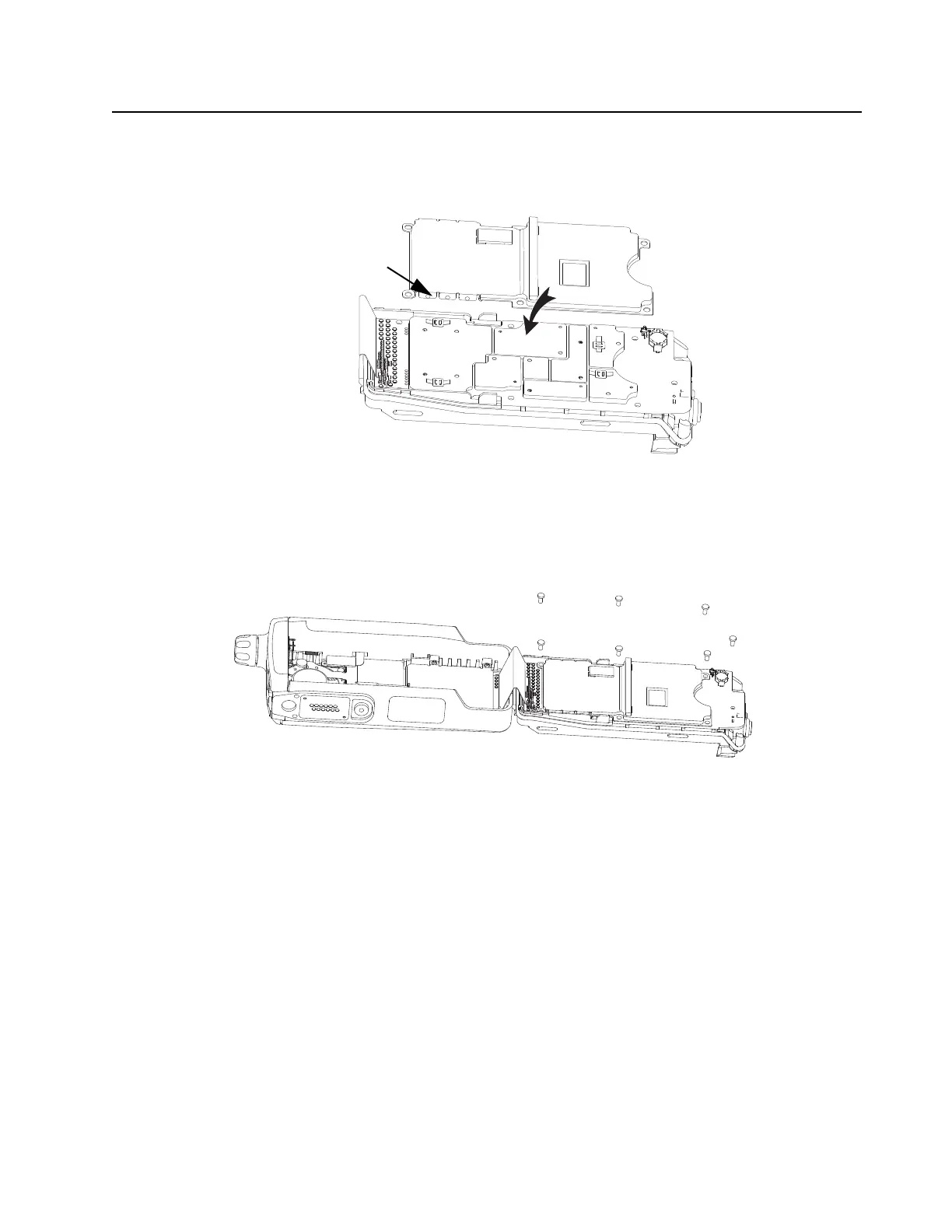

Figure 8-28. Assemble the Secondary Shield Assembly
2. Torque all seven Chassis Screws (30) with a Torx IP6 Bit and a Torque Driver to 3.0 in-lbf in
the sequence as shown in Figure 8-29.
Figure 8-29. Torque in the Chassis Screws
Secondary
Shield’s
Dimples
3
6
2
7
4
1
5
