Motorola APX 8000H - Status Indicators; Battery Charge Status; Fuel Gauge Icons

Chapter 4
Status Indicators
This section explains the status indicators of the radio.
4.1
Battery Charge Status
Your radio indicates the battery charge status through LED, sounds, and the fuel gauge icon on the
display. You can also check the battery charge status by using the menu entry.
If you press the PTT button when your battery is low, the LED blinks red and you hear a short, high-
pitched tone.
4.1.1
Fuel Gauge Icons
The fuel gauge icon indicates the battery level of your radio. A blinking fuel gauge icon ( ) is displayed
only when the battery voltage drops to low level. In this case, replace the battery with a fully charged
one.

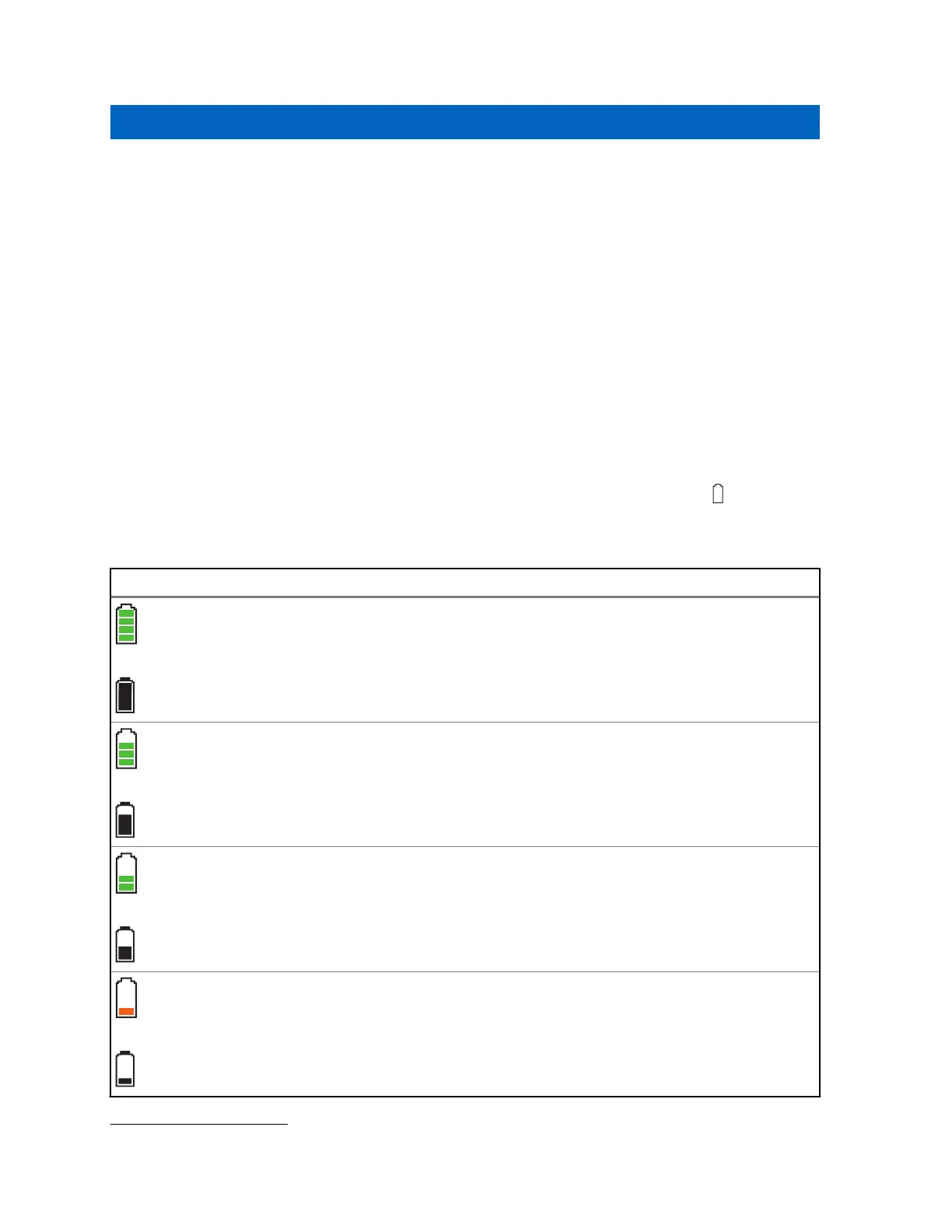

Gauge Battery Charge
Top Display:
76% to 100% full
2
Top Display:
51% to 75%
2
Top Display:
26% to 50%
2
Top Display:
11% to 25%
2
2
For IMPRES battery operation only.
MN004476A01-AE
