2-12 Standard Configurations Planning the Installation
RADIO COMPARTMENT = OPERATOR COMPARTMENT
VEHICLE BATTERY COMPARTMENT
TIB
CONTROL HEAD
ACC line
MICROPHONE
TRANSCEIVER
SPEAKER
A+ (RED)
DASH IGN SENSE
(thin RED)
FUSE
FUSE
SEE NOTE
VEHICLE
IGNITION SWITCH
GROMMET
VEHICLE
BATTERY
CHASSIS GND
NOTE: See TABLE 2-1 for wiring of the thin RED wire on rear accessory plug. A good GROUND connection to the car chassis is required for correct radio operation. NOTE: Ignition sense cable uses either 3-amp fuse (6580283E01) or 4-amp fuse (6580283E02)

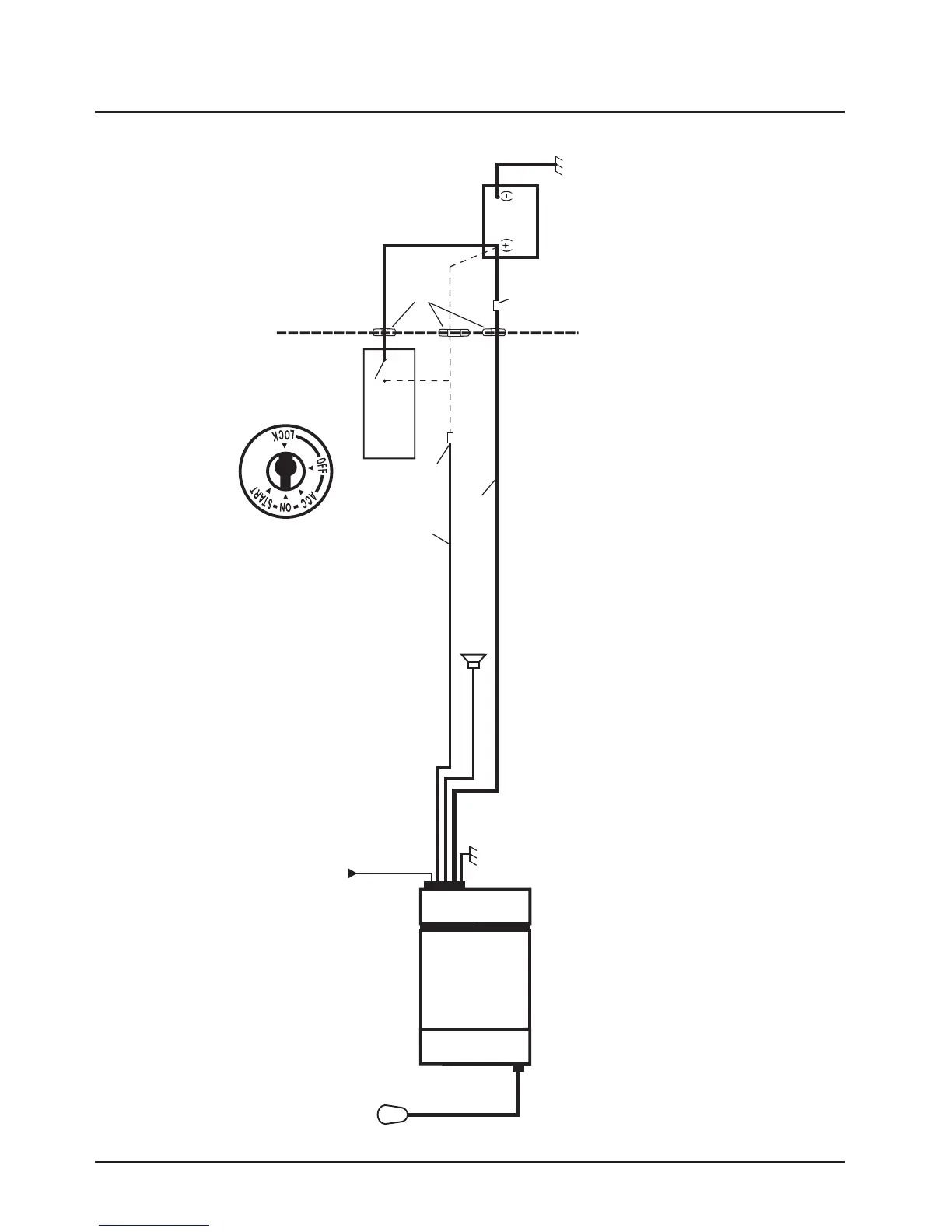

Figure 2-20. Cabling Interconnect Diagram for Dash Mount
