MN003109A01_aa
Standard Configurations Planning the Installation 2-13
IGN SENSE
(YELLOW)
ACC line
VEHICLE
IGNITION SWITCH
GROMMET
VEHICLE
BATTERY
CHASSIS GND
MICROPHONE
CONTROL HEAD (REAR VIEW)
DIGITAL CONTROL CABLE
REMOTE MOUNT OPERATION
RADIO COMPARTMENT
VEHICLE BATTERY
COMPARTMENT
OPERATOR COMPARTMENT
TRANSCEIVER
TIB
GROMMET
SPEAKER
A+ (RED)
SEE NOTE
FUSE
FUSE
NOTE:
See TABLE 2-1 for wiring of the YELLOW wire. A good GROUND connection to the car chassis is required for correct radio operation.

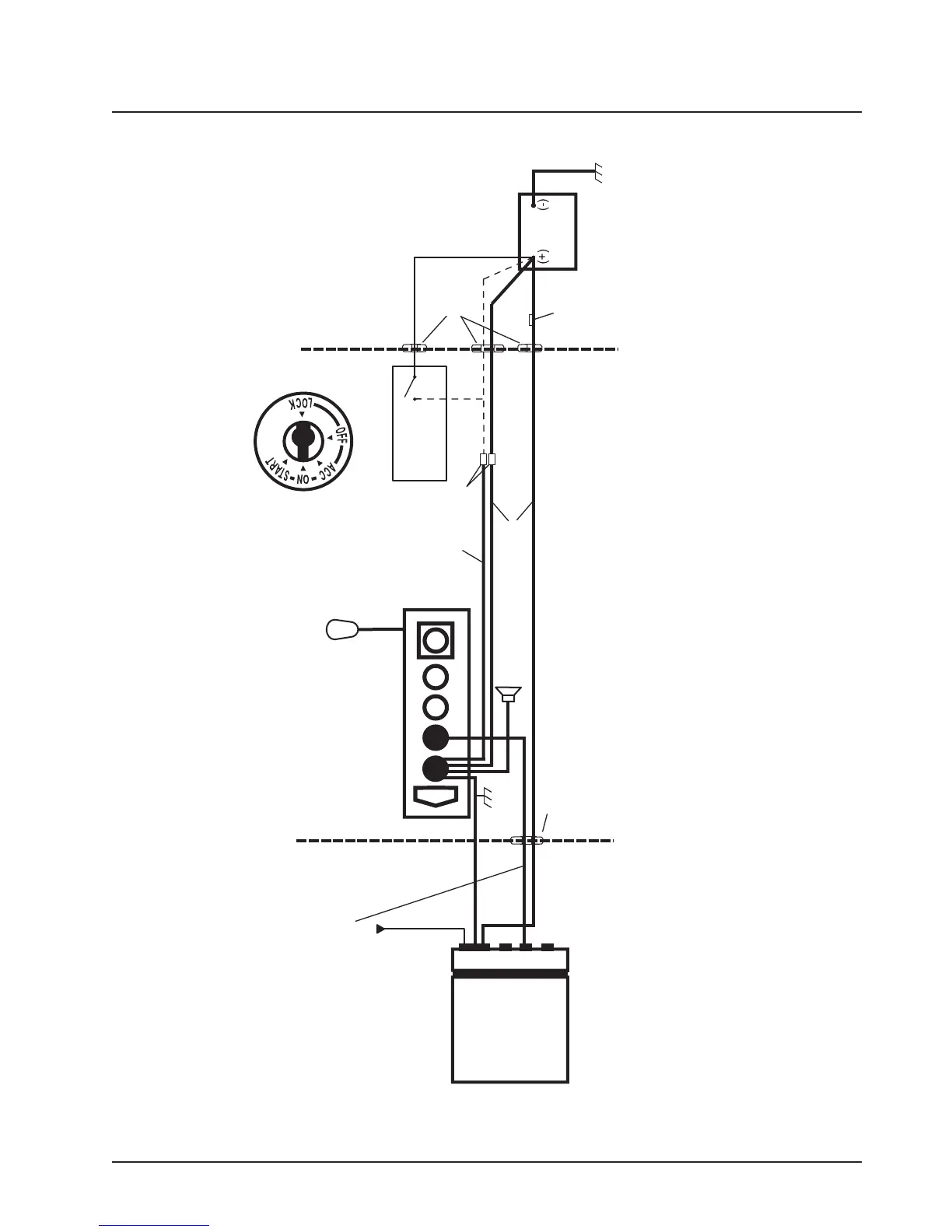

Figure 2-21. Cabling Interconnect Diagram for Remote Mount
