2-14 Standard Configurations Planning the Installation
RADIO COMPARTMENT
CAUTION
OPERATOR COMPARTMENT
VEHICLE BATTERY
COMPARTMENT
Siren Box
(BLK)
A+
(Red)
A+
(Red)
15A Fuse
VEHICLE
IGNITION SWITCH
VEHICLE
BATTERY
PART OF
VEHICLE
WIRING
Siren Speaker
ON/ACC
3A OR 4A FUSE
SEE NOTE
SPEAKER
RADIO POWER CABLE
(RED/BATTERY HOT)
15A, 20A OR
30A FUSE
16A Circuit Breaker
GROMMET
GROMMET
GROMMET
URC Controller
Box
Chassis GND
MMP to RJ45
Cable
TRANSCEIVER
TIB
CAN extension cable
A+
(Red)
IGN Sense
(yellow)
(BLK)
Control Head (Rear View)
Chassis GND
(+)
(-)

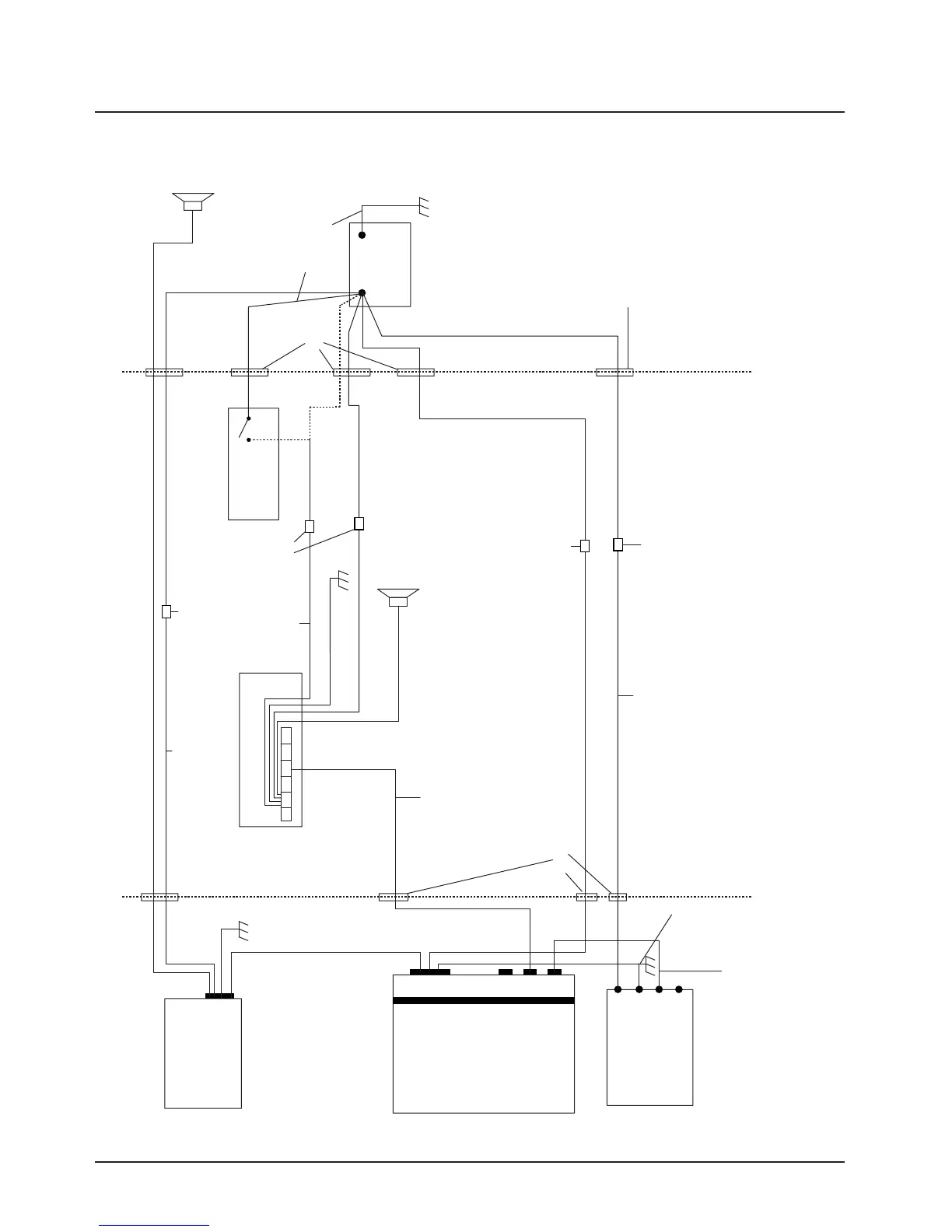

Figure 2-22. Cabling Interconnect Diagram for 09 Remote Mount (URC is optional)
NOTE: For remote mount configurations, do not supply IGNITION at the radio's rear accessory connector. See TABLE 2-2 for combinations of wiring the RED and YELLOW cables. Alternator whine and other noise problems may occur. Isolate the RED cable with a Motorola Solutions relay (5900813674).
