Chapter 5 CPS Programming
The Customer Programming Software (CPS) stores programmed options in the radio’s codeplug.
The CPS is preprogrammed with default settings at the factory, but it may be modified to suit your
needs. There is one primary screen in the CPS for editing the Siren/PA options. To access this
screen, double-click the “Radio Wide” tab shown in Figure 5-1.

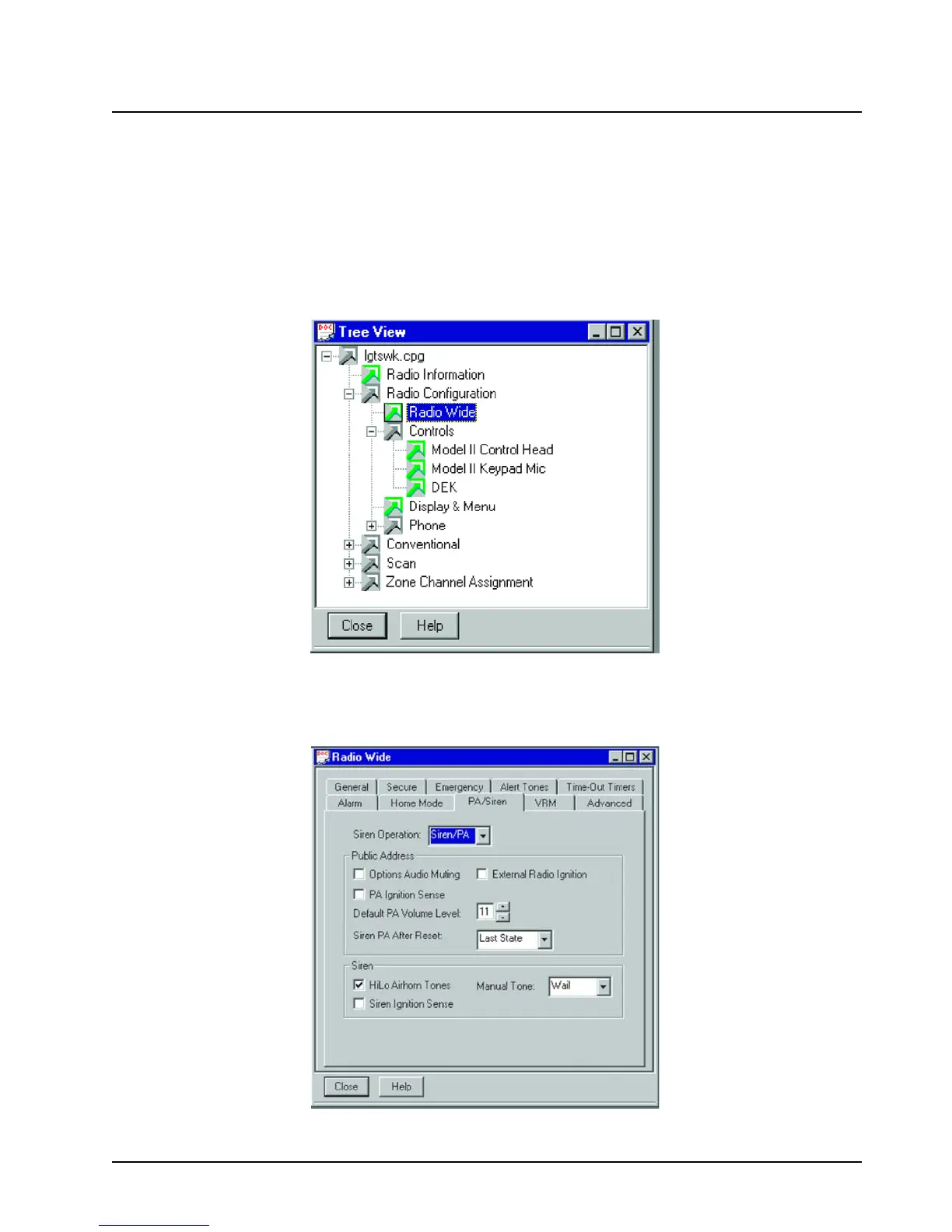

Figure 5-1: “Tree View” Screen Shot
Under the “Siren Operation” field, the “Siren/PA” option must be selected in order to modify the unit’s
CPS options. Selecting the “PA Only” option will only allow you to modify the Public Address options.
Figure 5-2: “Siren/PA Options” Screen Shot
