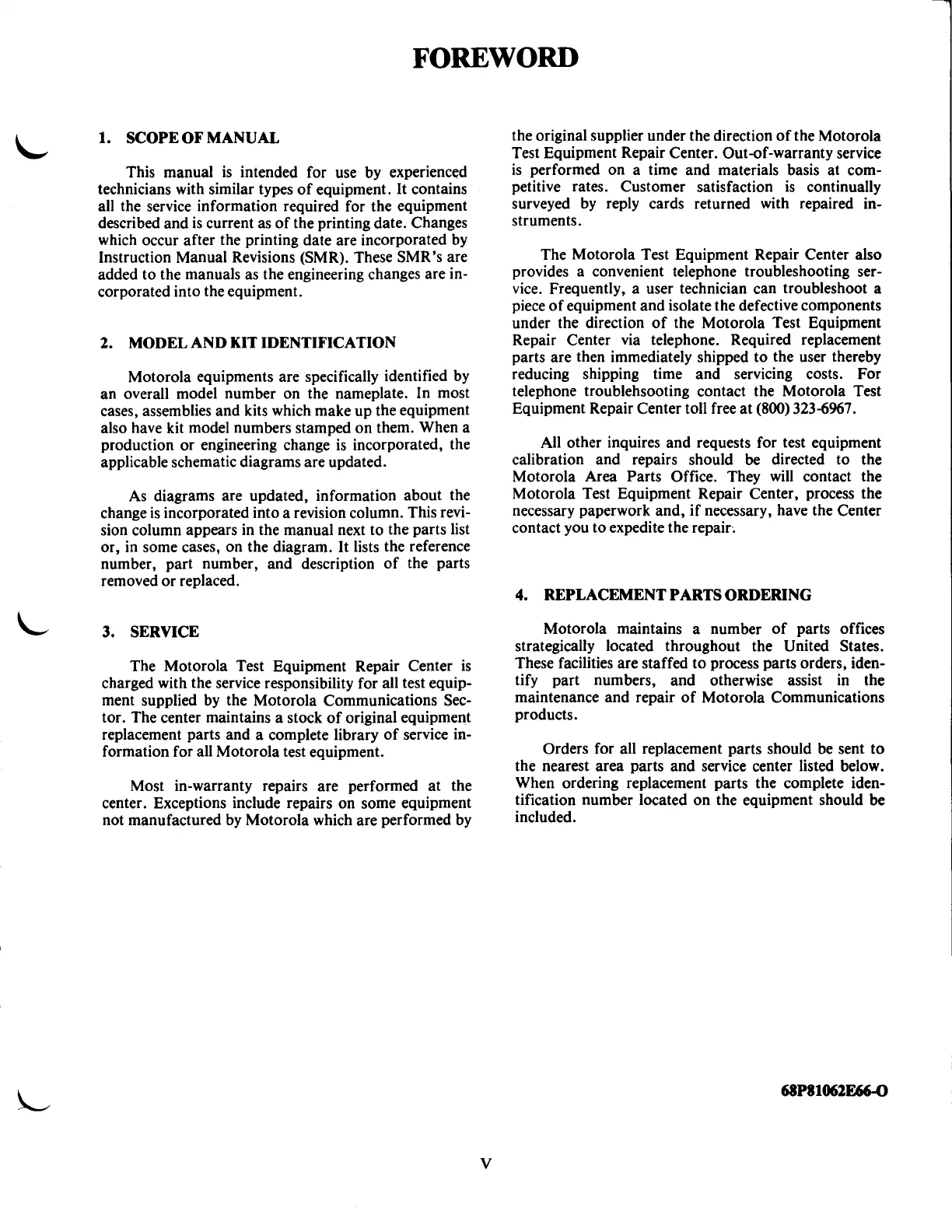

FOREWORD
1. SCOPEOFMANUAL
This manual
is
intended for use by experienc€;d
technicians with similar types
of
equipment.
It
contains
all the service information required for the equipment
described
and
is current as
of
the printing date. Changes
which occur after the printing date are incorporated by
Instruction Manual Revisions (SMR). These SMR's are
added to the manuals as the engineering changes are in-
corporated into the equipment.
2. MODEL AND KIT IDENTIFICATION
Motorola equipments are specifically identified by
an
overall model number
on
the nameplate. In most
cases, assemblies
and
kits which make
up
the equipment
also have kit model numbers stamped
on
them. When a
production
or
engineering change is incorporated, the
applicable schematic diagrams are updated.
As diagrams are updated, information
about
the
change
is
incorporated into a revision column. This revi-
sion column appears in the manual next to the parts list
or,
in some cases,
on
the diagram.
It
lists the reference
number,
part
number,
and
description
of
the parts
removed
or
replaced.
3. SERVICE
The Motorola Test Equipment Repair Center
is
charged with the service responsibility for all test equip-
ment supplied by the Motorola Communications Sec-
tor. The center maintains a stock
of
original equipment
replacement parts and a complete library
of
service in-
formation for all Motorola test equipment.
Most in-warranty repairs are performed
at
the
center. Exceptions include repairs
on
some equipment
not manufactured by Motorola which are performed by
v
the original supplier under the direction
of
the Motorola
Test Equipment Repair Center. Out-of-warranty service
is
performed
on
a time
and
materials basis at com-
petitive rates. Customer satisfaction
is
continually
surveyed by reply cards returned with repaired in-
struments.
The Motorola Test Equipment Repair Center also
provides a convenient telephone troubleshooting ser-
vice. Frequently, a user technician can troubleshoot a
piece
of
equipment
and
isolate the defective components
under the direction
of
the Motorola Test Equipment
Repair Center via telephone. Required replacement
parts are then immediately shipped
to
the user thereby
reducing shipping time
and
servicing costs. For
telephone troublehsooting contact the Motorola Test
Equipment Repair Center toll free
at
(800) 323-6967.
All other inquires
and
requests for test equipment
calibration
and
repairs should be directed
to
the
Motorola Area
Parts
Office. They will contact the
Motorola Test Equipment Repair Center, process the
necessary paperwork
and,
if
necessary, have the Center
contact you to expedite the
repair~
4. REPLACEMENT PARTS ORDERING
Motorola maintains a number
of
parts offices
strategically located throughout the United States.
These facilities are staffed
to
process parts orders, iden-
tify
part
numbers,
and
otherwise assist in the
maintenance
and
repair
of
Motorola Communications
products.
Orders for all replacement parts should be sent
to
the nearest area parts
and
service center listed below.
When ordering replacement parts the complete iden-
tification number located
on
the equipment should be
included.
68P81062E66-0
