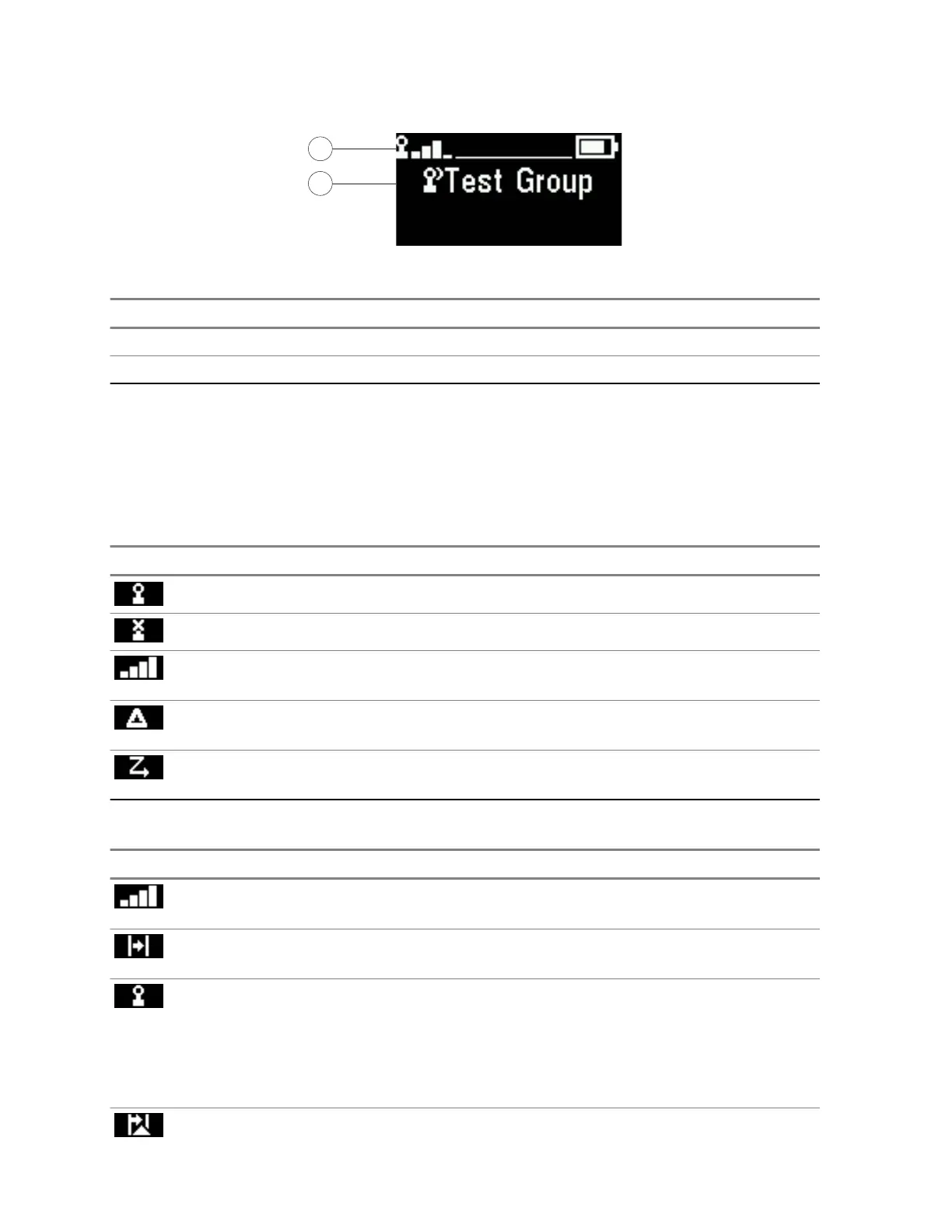

Figure 9: Default Home Screen with Icons
Table 13: Display
Annotation Description
1 Status icon area
2 Text display area
3.5.1
Status Icons
Status icons appear when your radio is engaged in certain activities or when you have activated certain
features.
Table 14: Trunked Mode Operation (TMO) Icons
Icon
Description
In Service
No Service
Signal Strength
The more bars, the stronger the signal.
Migration
Radio is registered to a foreign network.
Scan
Talkgroup scanning is activated in the radio.
Table 15: Direct Mode Operation (DMO) Icons
Icon
Description
Direct Mode Call
Radio is receiving a Direct Mode call. The more bars, the stronger the signal.
Direct Mode
Radio is in Direct Mode, radio-to-radio communication.
DMO Gateway Communication Mode
Indicates that the gateway is selected. This icon has the following states:
• Solid - when the radio is synchronized with the gateway.
• Blinking - when the radio is not synchronized or during attachment.
• No icon - during a radio-to-radio and repeater call.
DMO Repeater Communication Mode
MN002955A01-AA
Chapter 3: Man-Machine Interface
64 Send Feedback
To Next Page
