NOTICE:
When you charge your radio in a multi-unit charger, the LED Power Indicator of the radio
indicates the charge status of the battery.
If you insert a radio with a deeply discharged battery into the multi-unit charger, the LED on the
radio shows blinking red, indicating a charging error. Resolve this error by reinserting the radio.
3.2
Battery Charging Indications
When the radio is turned on while charging, it displays an appropriate Battery Charge Progress icon at
the status icon area.
When the radio is turned off while charging, it displays the Charger Mode screen. The screen displays
the charging progress expressed in percentage.
NOTICE: The Charger Mode screen does not remain on. To easily identify the charging status,
check the LED Power Indicator. See LED Indications on page 59.

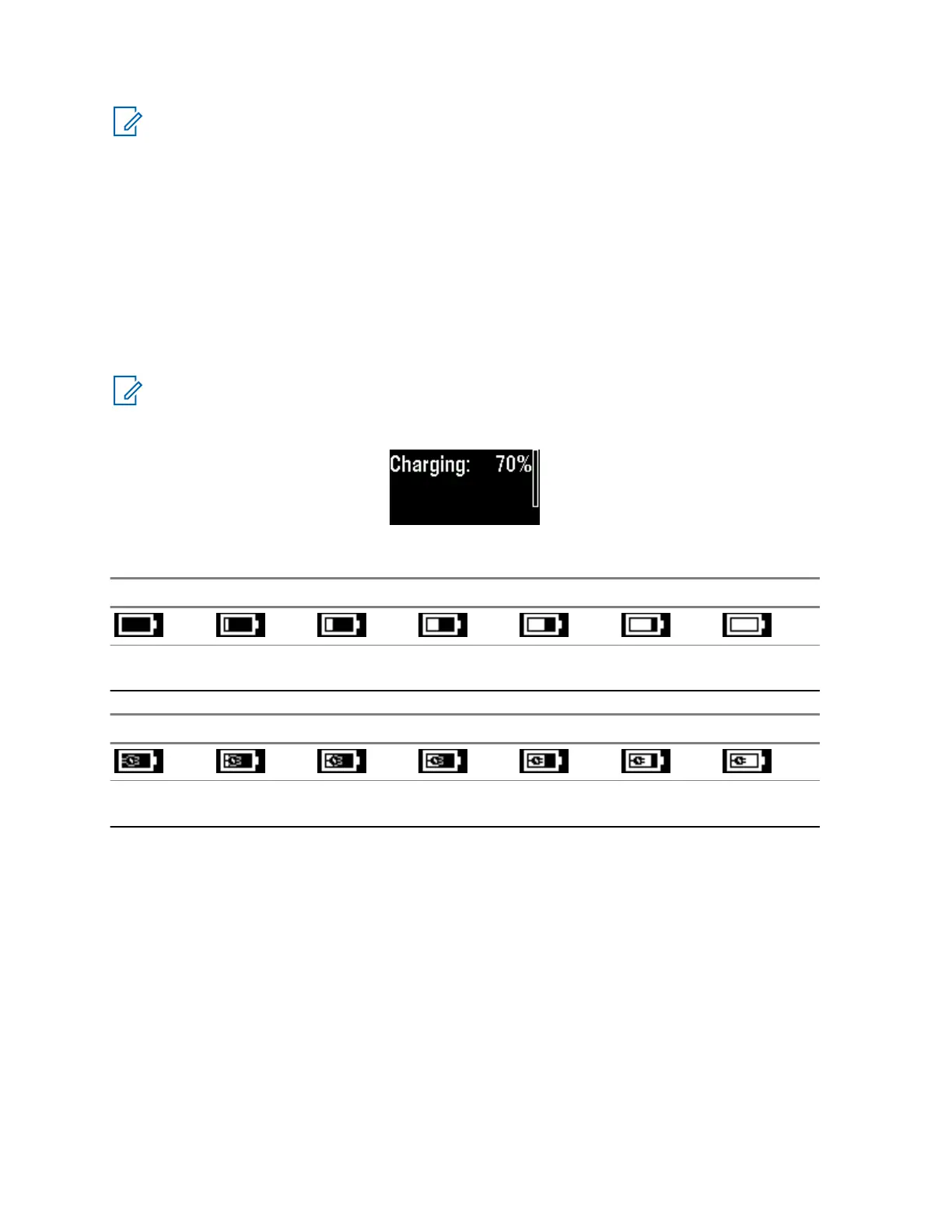

Figure 8: Charger Mode Screen
Table 11: Battery Icons
Battery Capacity
0%–5% 5%–15% 15%–25% 25%–40% 40%–60% 60%–80% 80%–
100%
Battery Charge Progress
0%–5% 5%–15% 15%–25% 25%–40% 40%–60% 60%–80% 80%–
100%
3.3
Controls and Indicators
MN002955A01-AA
Chapter 3: Man-Machine Interface
60 Send Feedback
