Disassembly
Board Removal

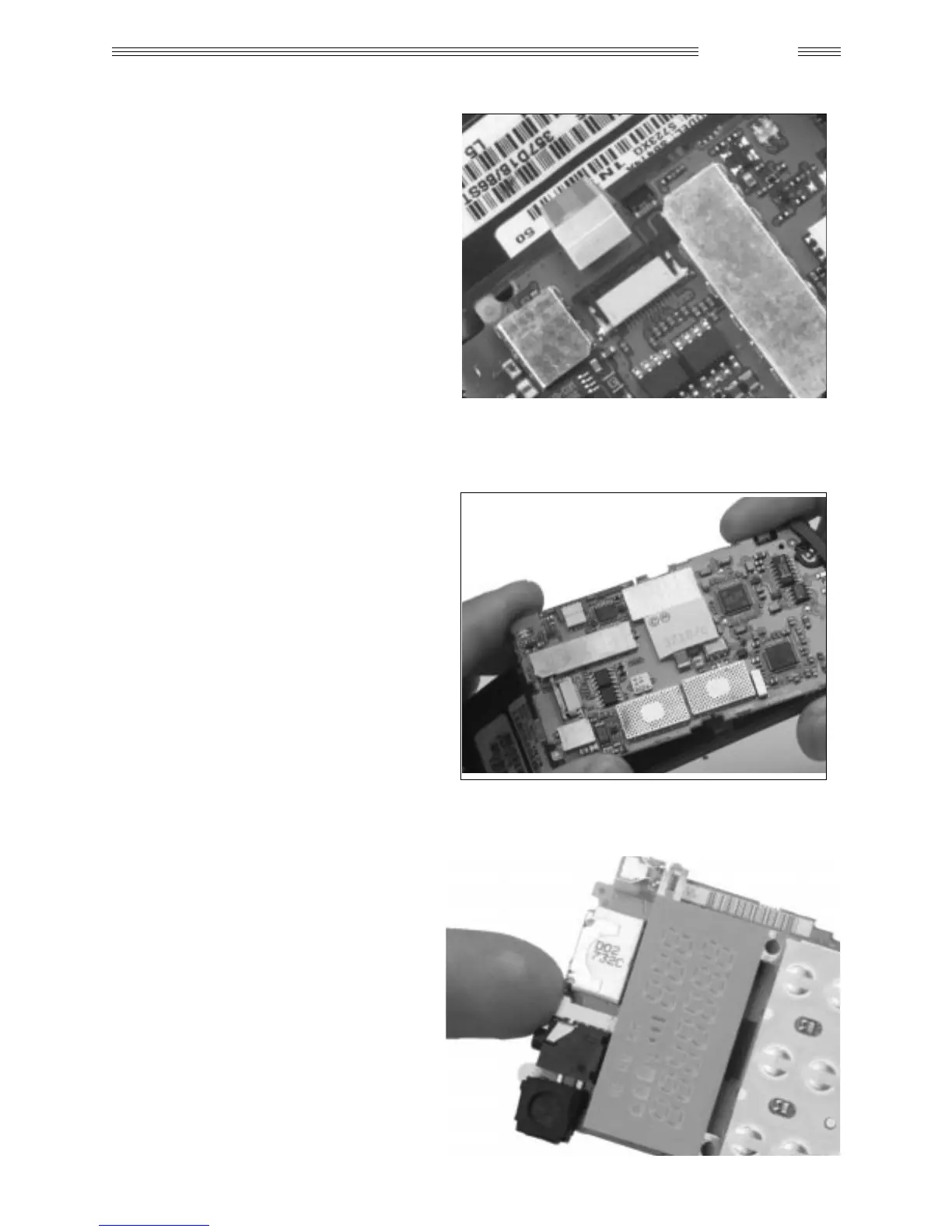

Step 1.
Open the flex connector and
pull out the flex.
Step 2.
With your thumbs, pry the
side tabs away from the
board assembly to allow it
to be easily removed.
Starting at the top of the
board, lift the board
assembly out of the front
housing.
Step 3.
Lift the white display clip
off the transceiver board.
