4.1 - 2 MTH800 TETRA Handportable Terminal / Basic Service Manual TEST SETUP & TESTING 380-430MHz
Typical Test Setup
Note: Check with your Motorola local representative for the availability of Cradle
FTN6308 required for this type of testing, it is part of Digital Car Kit FTN6307.
Carry out the following instructions before testing:
• Check that you have a fully charged battery (not required when using Battery
Eliminator WALN4097).
• Install the MTH800 into the
FTN6308 Digital Car Kit cradle.
• Connect RF cable 3086228J02
to the N-type RF Connector of the IFR.
• Connect the other side of the RF cable to the cradle’s RF connector.

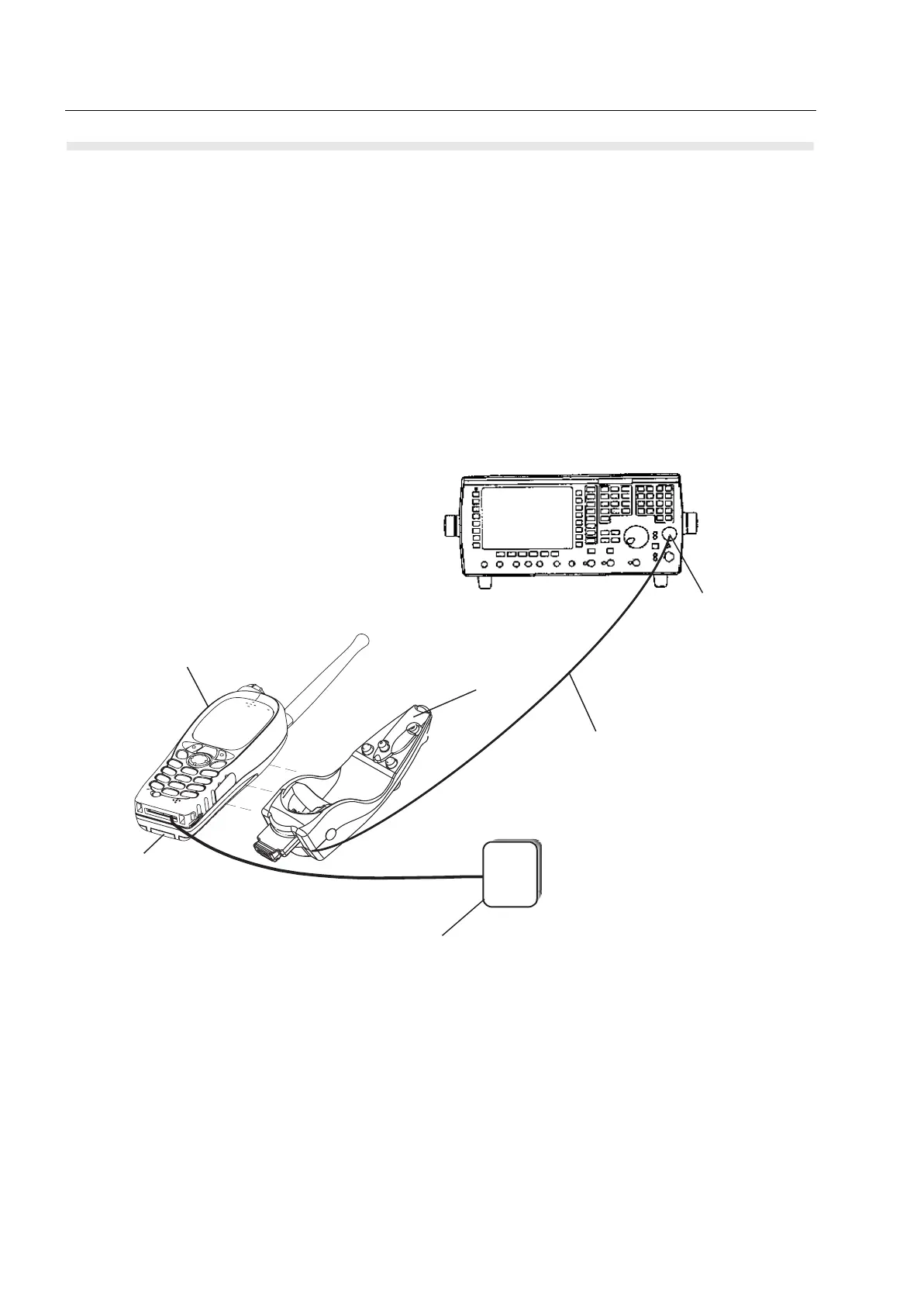

Figure 1. Typical Test Setup
IFR 2968
MTH800
BATTERY
ELIMINATOR
(WALN4097)
FTN6308 CRADLE
3086228J02
RF CABLE
N-TYPE
RF CONNECTOR
POWER
SUPPLY
3.8 V
